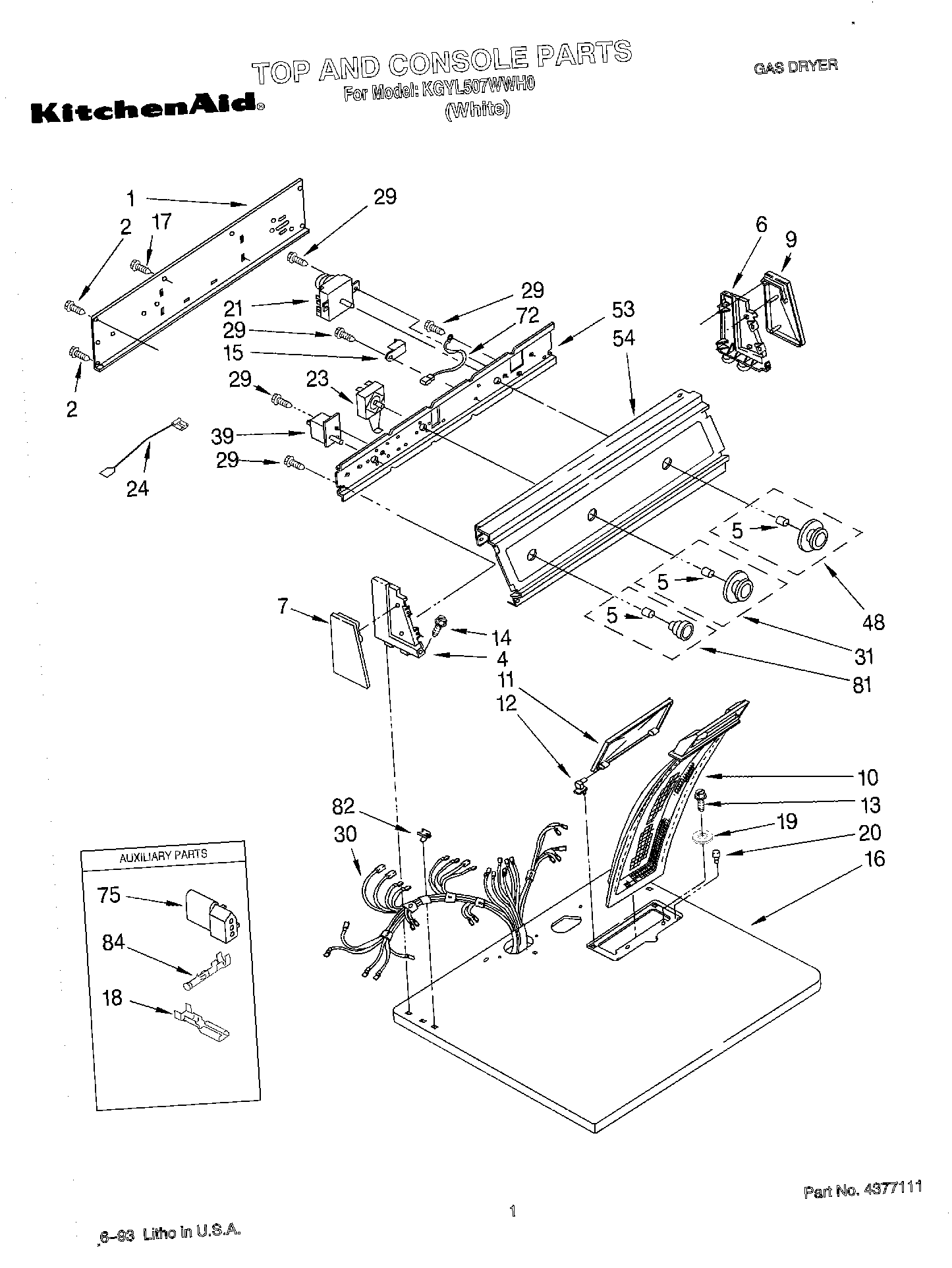

KGYL507WWH0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Guide, Dryer
	Label, Wiring Diagram
	Guide, Use & Care
	Leveler (Thinner)
	799344 Whirlpool Refrigerator Paint
	350938 Whirlpool Spray Gun
	Instructions, Installation
	72017 Whirlpool Appliance Touch-Up Paint White
1	Panel, Rear Console
2	WP489069 Whirlpool Compactor Screw
4	Cap, End (L.H.)
5	WP688805 Whirlpool Spring Clip
6	Cap, End (R.H.)
7	Trim, Endcap (L.H.)
9	Trim, Endcap (R.H.)
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	WP694419 Whirlpool Buzzer Adjuster
16	Top (White)
17	WP693995 Whirlpool Screw
18	WP94614 Whirlpool Terminal
19	Washer
20	Bumper, Lint Lid
21	WP3394762 Whirlpool Timer
23	Switch, Rotary (Temperature Selector)
24	Wire, Jumper (Violet)
24	Wire, Jumper (Blue)
29	WP3390631 Whirlpool Screw
30	Harness, Wiring
31	Knob, Control
39	Relay, Push-To-Start
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
72	Wire, Ground
75	Receptacle, 3-Way Terminal (Use W/94614)
81	Knob, Push-To-Start
82	Nut, Push-In (2)
84	WP596797 Whirlpool Terminal
