KGYL507WWH0 04 – BULKHEAD

KGYL507WWH0 04 – BULKHEAD

Written by

in

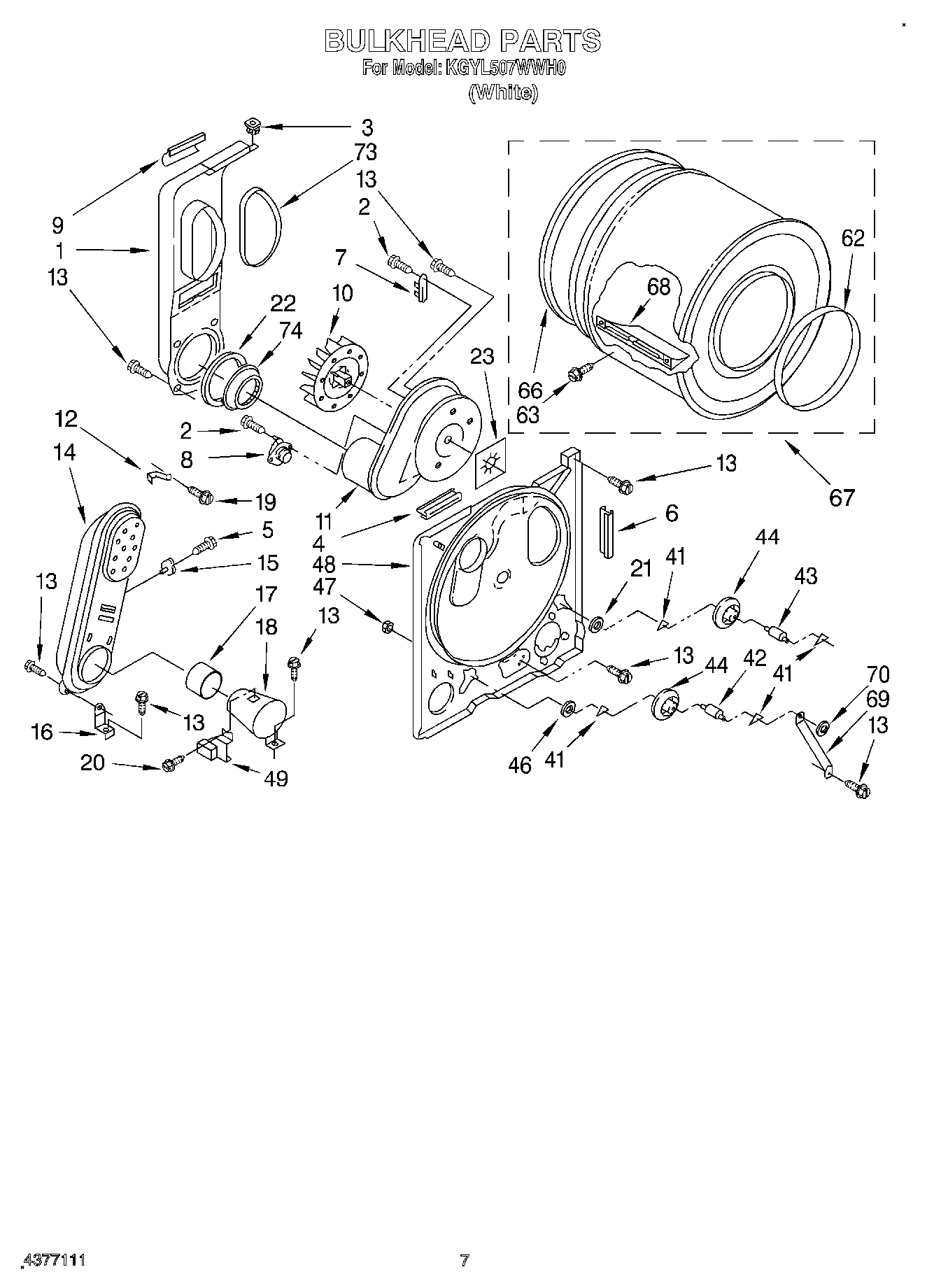

KGYL507WWH0 04 – BULKHEAD

Products

PositionProduct
1279505 Whirlpool Chute
2WP965173 Whirlpool Dishwasher Screw
398460 Whirlpool Nut
5WP90767 Whirlpool Screw
6686889 Whirlpool Pad
7WP3392519 Whirlpool Dryer Thermal Fuse
8WP3387134 Whirlpool Dryer Cycling Thermostat
9686770 Whirlpool Support Bracket
10WP694089 Whirlpool Dryer Blower Wheel
11Housing, Blower
12279771 Whirlpool Clip
13SCREW
15Thermostat SPST (205)
15(Alt.)
15Thermostat, 205 F (96 C)
16Support, Heater Box (2)
18279900 Whirlpool Box O/S1
20WP3390631 Whirlpool Screw
21WP3388703 Whirlpool Washer
22W11415783 Whirlpool Seal
23Seal, Blower
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44WPW10314173 Whirlpool Dryer Drum Support Wheel
46WP348197 Whirlpool Washer Assembly
47WP3359452 Whirlpool Nut
48Bulkhead
49WP338906 Whirlpool Dryer Gas Sensor
62WP3394509 Whirlpool Bearing Ring
63WPW10109200 Whirlpool Screw
66239087 Whirlpool Dryer Rear Drum Seal Green Stitches
67697760 Whirlpool Drum Assembly Primary OS2
68WP342847 Whirlpool Drum Baffle
69Bracket, Support
70WP90296 Whirlpool Clip
73SEAL
74W11233063 Whirlpool Shield Assembly
