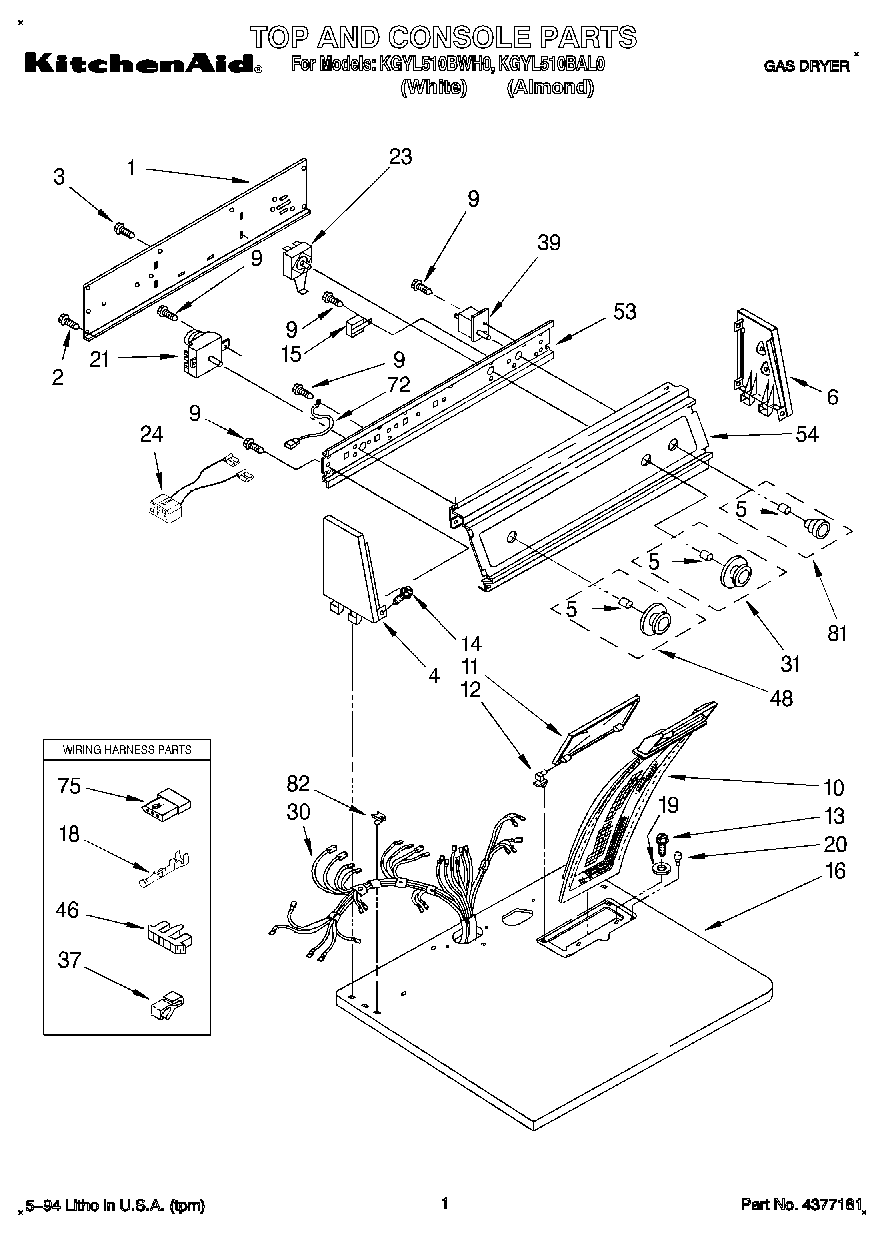

KGYL510BWH0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Guide, Dryer
	Guide, Use & Care
	Label, Wiring Diagram
	Label, Operating Instructions
	Instructions, Installation
	Almond (Uncut)
	Leveler (Thinner)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
1	Panel, Rear Console
2	WP489069 Whirlpool Compactor Screw
3	WP693995 Whirlpool Screw
4	Cap, End (L.H.)
5	WP688805 Whirlpool Spring Clip
6	Cap, End (R.H.)
9	WPW10139210 Whirlpool Screw
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WPL 64211
15	WP694419 Whirlpool Buzzer Adjuster
16	Top (Almond)
16	Top (White)
18	WP94614 Whirlpool Terminal
19	Washer
20	Bumper, Lint Lid
21	Timer
23	WP3399640 Whirlpool Switch
24	Wire-Jumper Assembly
30	Harness, Wiring
31	Knob (Control)
37	Clip, Retainer
39	Relay, Push-To-Start
46	Connector, Timer
48	Knob, Timer
53	Bracket, Control
54	Panel, Control
72	Wire, Ground
75	Receptacle, 3-Way Terminal (Use W/94614)
81	Knob, Push To Start
82	WP357213 Whirlpool Hinge Stopper
