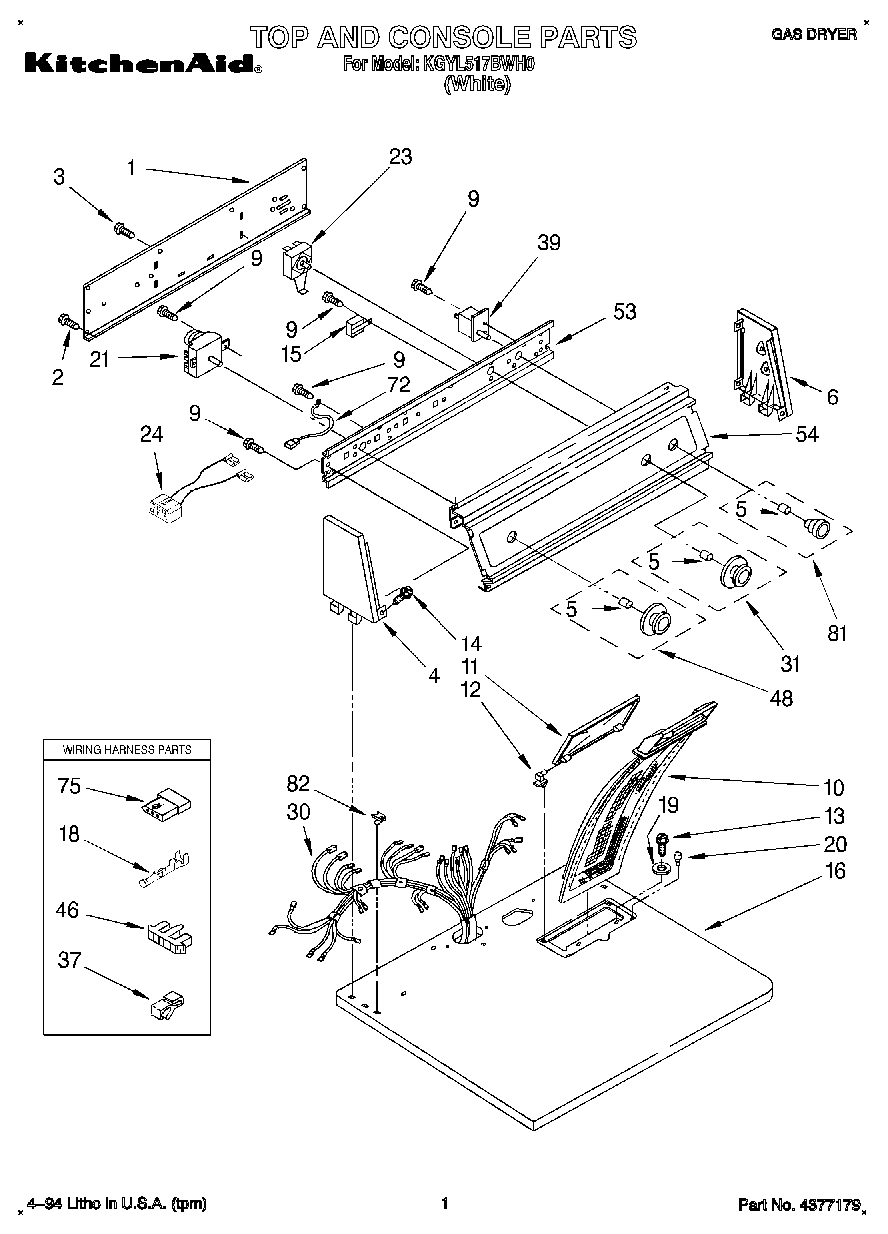

KGYL517BWH0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Label, Wiring Diagram
	Instructions, Installation
	Leveler (Thinner)
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	Guide, Dryer
	350938 Whirlpool Spray Gun
	Guide, Use & Care
1	Panel, Rear Console
2	WP489069 Whirlpool Compactor Screw
3	WP693995 Whirlpool Screw
4	Cap, End (L.H.)
5	WP688805 Whirlpool Spring Clip
6	Cap, End (R.H.)
9	WPW10139210 Whirlpool Screw
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	WP694419 Whirlpool Buzzer Adjuster
16	Top (White)
18	WP94614 Whirlpool Terminal
19	Washer
20	Bumper, Lint Lid
21	Timer
23	WP3399640 Whirlpool Switch
24	Wire-Jumper Assembly
30	Harness, Wiring
31	Knob, Control
37	Clip, Retainer
39	Relay, Push-To-Start
46	Connector, Timer
48	Knob, Timer
53	Bracket, Control
54	Panel, Control
72	Wire, Ground
75	Receptacle, 3-Way Terminal (Use W/94614)
81	Knob, Push-To-Start
82	WP357213 Whirlpool Hinge Stopper
