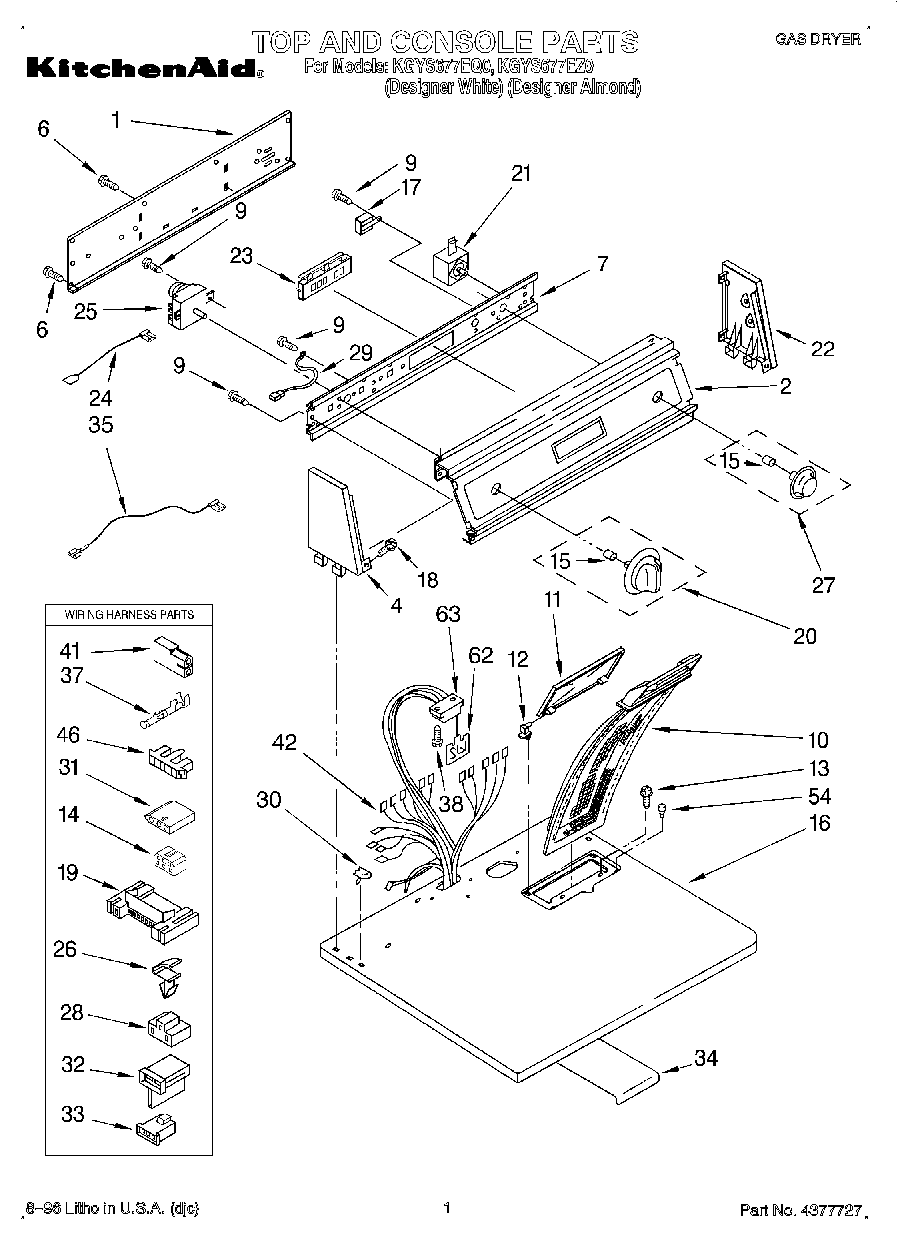

KGYS677EQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

KGYS677EQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

KGYS677EQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
WPL LIT3405630
Instructions, Installation
Almond (Uncut)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun
WPL LIT3401725
1Panel, Rear Console
2Panel, Control (Almond)
2Panel, Control (White)
4Cap, End (L.H.)
4End Cap (L.H.)
6WP693995 Whirlpool Screw
7Bracket, Control
9WPW10139210 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Block, Disconnect
15WP688805 Whirlpool Spring Clip
16Top (Almond)
16Top (White)
17WP694419 Whirlpool Buzzer Adjuster
18WP388326 Whirlpool Screw
193395683 Whirlpool Connector
20Knob, Timer (Almond)
20Knob, Timer (White)
21WP3398094 Whirlpool Push To Start Switch
22Cap, End (R.H.)
22Cap, End (R.H.)
23Switch-Tap Touch (Almond)
23Switch-Tap Touch (White)
24Wire, Jumper (Black)
24Wire, Jumper (Tan)
24Wire, Jumper (White)
25Timer, 60Hz.
26WP3394427 Whirlpool Clip
27Knob, Push To Start (Almond)
27Knob, Push To Start (White)
283401144 Whirlpool Connector
29Wire, Ground
30WP357213 Whirlpool Hinge Stopper
31Connector (Door Switch)
32WP3403499 Whirlpool Connector
33WP3403498 Whirlpool Connector
34Panel, Sound Dampening
35Wire, Jumper (Blue)
35Wire, Jumper (Violet)
37WP94614 Whirlpool Terminal
38SCREW
41Receptacle, Latching (2-Way) (Uses Terminal 94614)
42Harness, Gas
46Connector, Timer
54Bumper, Lint Lid
62WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
633391885 Whirlpool Connector
