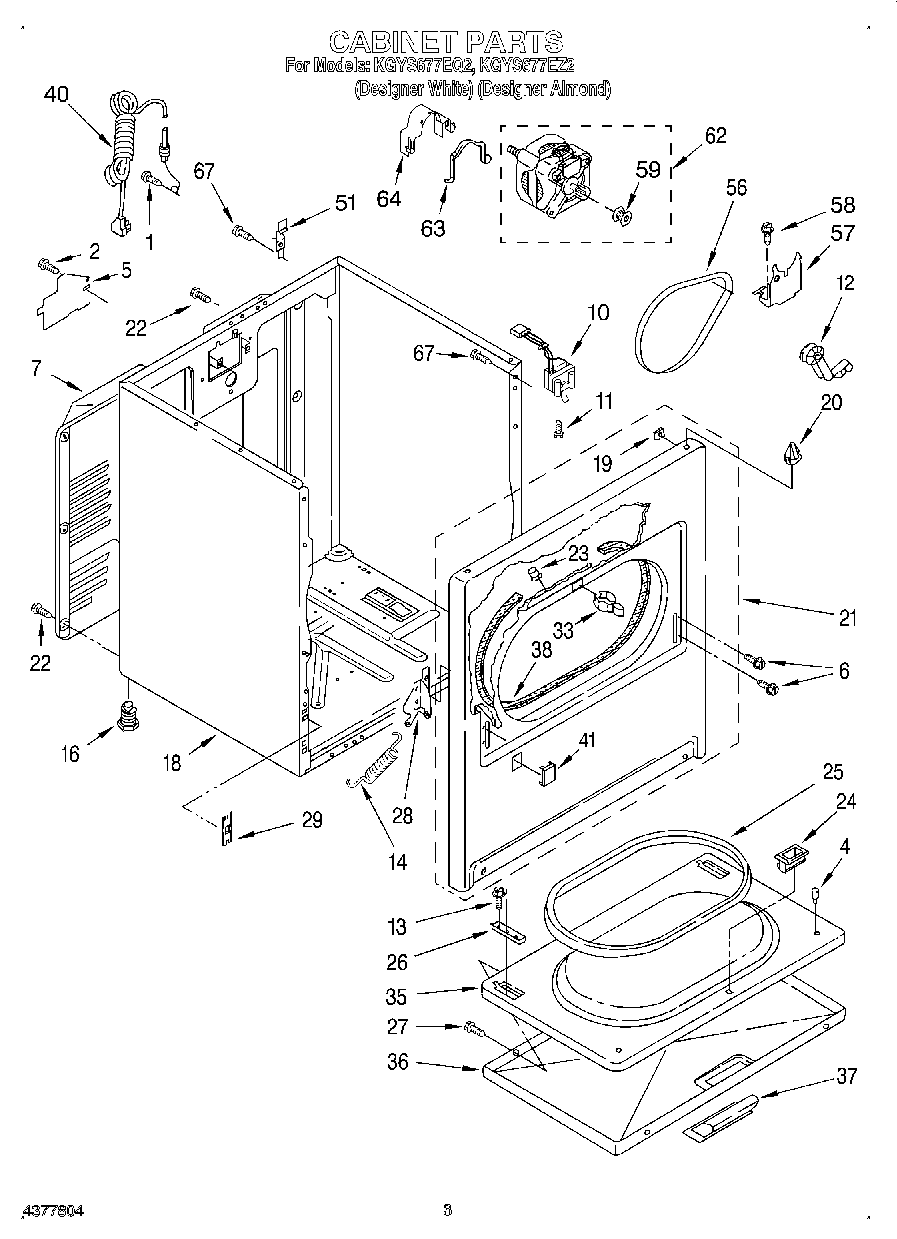

KGYS677EQ2 02 – CABINET

Products

Position	Product
1	W10850756 Whirlpool Screw
4	238614 Whirlpool Bumper Hinge
5	W11539855 Whirlpool Refrigerator Pump
6	Screw, 10-32 x 1/2
7	280043 Whirlpool Rear Panel
10	WP3406107 Whirlpool Dryer Door Switch
11	WP3395530 Whirlpool Screw
12	WP691366 Whirlpool Dryer Idler Pulley Assembly
13	WP308685 Whirlpool Microwave Screw
14	WPW10041960 Whirlpool Door Spring
16	49621 Whirlpool Leveling Feet
18	Cabinet (Includes Illus. Nos. 5, 7, 15, 16, 41, & 57) (Almond)
18	Cabinet (Includes Illus. Nos. 5, 7, 15, 16 & 57) (White)
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	279740 Whirlpool Panel Primary with O/S2
21	Panel, Front (Almond)
22	WP693995 Whirlpool Screw
23	279220 Whirlpool Clip
24	279570 Whirlpool Dryer Door Latch Kit
25	W10906683 Whirlpool Door Seal
26	W11252547 Whirlpool Clip Assembly
27	WP694091 Whirlpool Screw
28	WP8066056 Whirlpool Door Hinge
28	WP8066057 Whirlpool Door Hinge
29	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
35	WP695737 Whirlpool Door
36	Door, Front (Almond)
36	WP3393549 Whirlpool Door Assembly
37	Handle, Door (Almond)
37	WP348721 Whirlpool Handle
38	W11035878 Whirlpool Bearing and Seal
40	W11222083 Whirlpool Power Cord
41	Plug, Front Panel (White)
41	Plug, Front Panel (Almond)
51	WP8066217 Whirlpool Hinge
56	341241 Whirlpool Dryer Drum Belt
57	WP348780 Whirlpool Base
58	3400500 Whirlpool Screw
59	WP8066184 Whirlpool Dryer Motor Pulley
62	279827 Whirlpool Dryer Drive Motor
63	WP660658 Whirlpool Clamp
64	WP3404162 Whirlpool Clamp
67	SCREW
