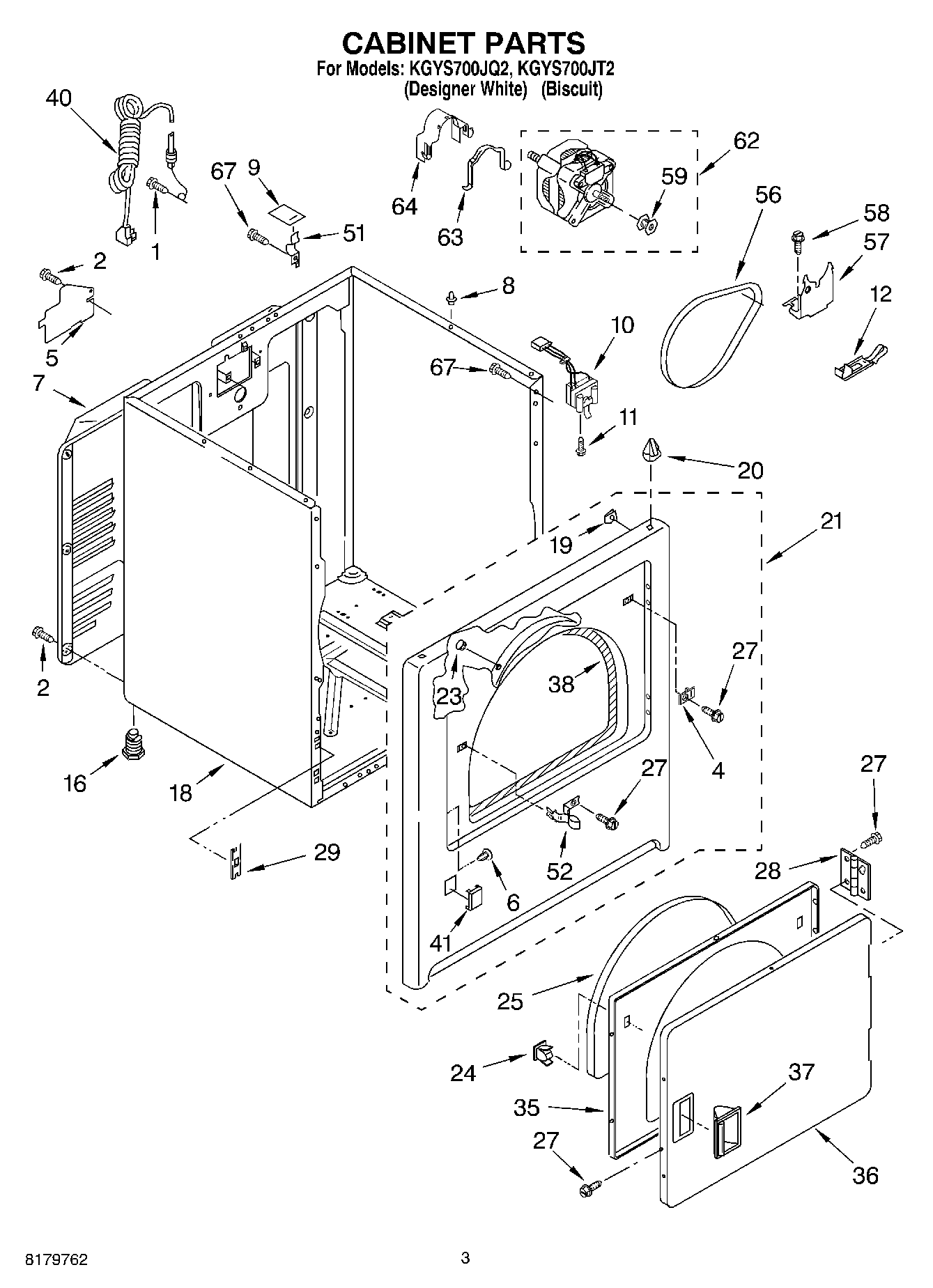

KGYS700JQ2 02 – CABINET

Products

PositionProduct
1WP33001882 Whirlpool Screw
2WP693995 Whirlpool Screw
4WP3403630 Whirlpool Plug
4Plug, Strike Hole (Biscuit)
5W11539855 Whirlpool Refrigerator Pump
6Plug, Hinge Hole (4) (Biscuit)
6WP3404413 Whirlpool Plug
7280043 Whirlpool Rear Panel
8Locator, Top
918849 Whirlpool Pad
10WP3406107 Whirlpool Dryer Door Switch
11WP3395530 Whirlpool Screw
12WP691366 Whirlpool Dryer Idler Pulley Assembly
1649621 Whirlpool Leveling Feet
18Cabinet (Biscuit)
188533643 Whirlpool Dryer White Cabinet
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Front Panel Assembly
21Panel Front (Biscuit)
23279220 Whirlpool Clip
24279570 Whirlpool Dryer Door Latch Kit
25SEAL-DOOR DRYER
27WP488627 Whirlpool Refrigerator Screw
28WPW10362431 Whirlpool Hinge Assembly
29W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
35WP3402341 Whirlpool Door
36Door, Front (Biscuit)
36W10861227 Whirlpool Door Assembly
37WP3405184 Whirlpool White Door Handle
37WP3405189 Whirlpool Handle
38W11035878 Whirlpool Bearing and Seal
40W11222083 Whirlpool Power Cord
41Plug, Front Panel (White)
41Plug, Front Panel (Biscuit)
51WP8066217 Whirlpool Hinge
52W11429589 Whirlpool Strike
56341241 Whirlpool Dryer Drum Belt
57WP348780 Whirlpool Base
583400500 Whirlpool Screw
59WP8066184 Whirlpool Dryer Motor Pulley
62279827 Whirlpool Dryer Drive Motor
63WP660658 Whirlpool Clamp
64WP3404162 Whirlpool Clamp
67SCREW
