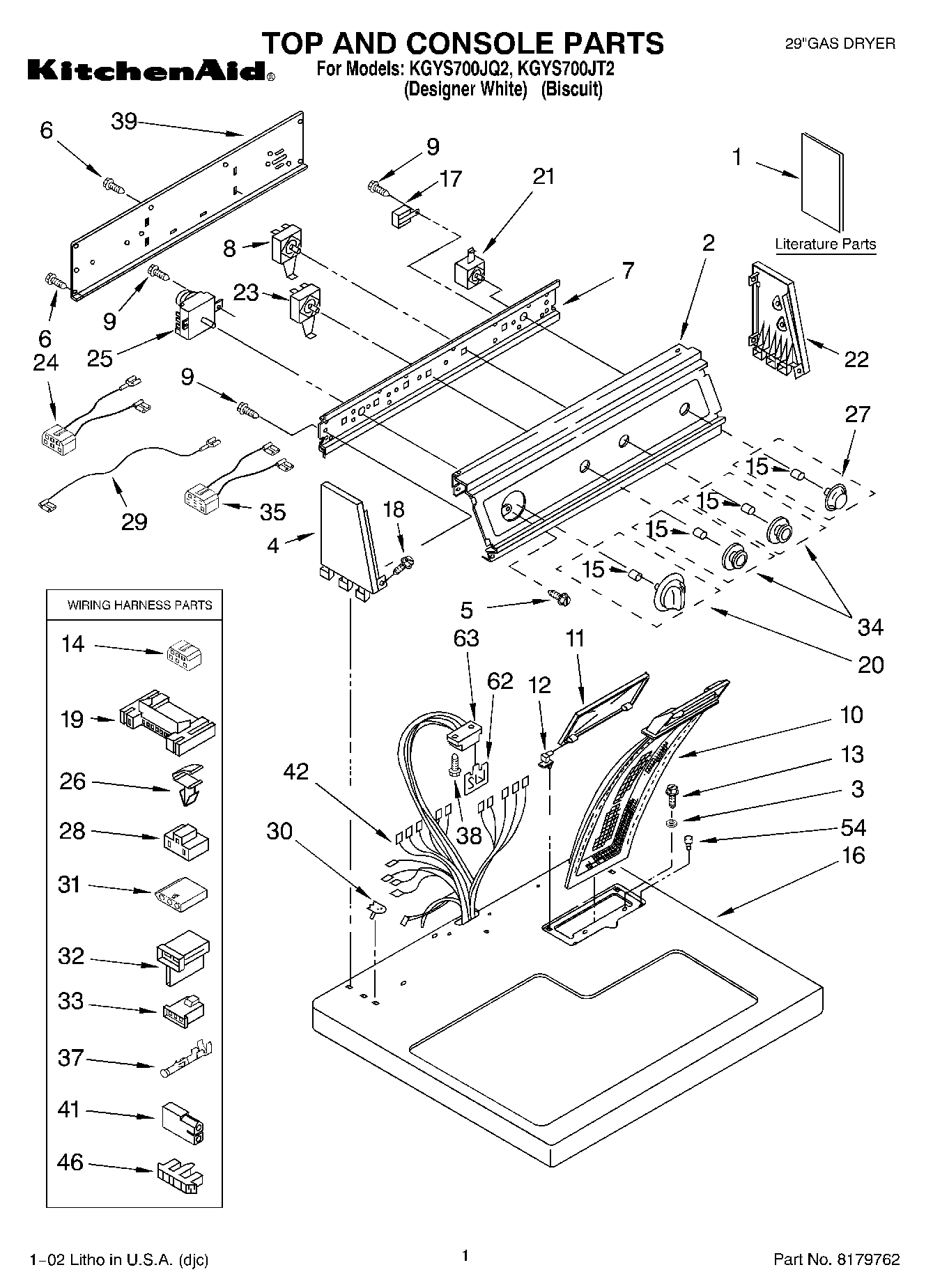

KGYS700JT2 01 – TOP AND CONSOLE, LITERATURE

KGYS700JT2 01 – TOP AND CONSOLE, LITERATURE

Written by

in

KGYS700JT2 01 – TOP AND CONSOLE, LITERATURE

Products

PositionProduct
1WPL 677818
1Literature Parts (Guide, Use & Care)
1Literature Parts (Label, Wiring Diagram)
1Literature Parts (Installation Instructions)
2Panel, Control (Biscuit)
2Panel, Control (White)
3Washer
4Cap, End (L.H.) (Biscuit)
4End Cap (L.H.) (White)
53400859 Whirlpool Screw
6WP693995 Whirlpool Screw
7Bracket, Control
83399638 Whirlpool Switch
9WPW10139210 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
11Cover, Lint Screen (Biscuit)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Block, Disconnect
15WP688805 Whirlpool Spring Clip
16Top
16Top (Biscuit)
17WP694419 Whirlpool Buzzer Adjuster
18WP388326 Whirlpool Screw
193395683 Whirlpool Connector
20Knob, Timer (White)
20Knob, Timer (Biscuit)
21WP3398094 Whirlpool Push To Start Switch
22End Cap (R.H.) (White)
22End Cap (R.H.) (Biscuit)
23WP3399639 Whirlpool Switch
243401695 Whirlpool Wire Harness
25WP3976570 Whirlpool Timer
26WP3394427 Whirlpool Clip
27Knob, Push-To-Start (Biscuit)
27Knob, Push To Start (White)
283401144 Whirlpool Connector
29Wire, Jumper (White)
30WP357213 Whirlpool Hinge Stopper
313936144 Whirlpool Connector
32WP3403499 Whirlpool Connector
33WP3403498 Whirlpool Connector
34Knob, Control (2) (White)
34Knob, Control (2) (Biscuit)
358539893 Whirlpool Wire Harness
37WP94614 Whirlpool Terminal
38SCREW
39W10103406 Whirlpool Rear Panel
41Receptacle, Latching (2-Way) (Uses Terminal 94614)
42WPL 8299881
46Connector, Timer
54Bumper, Lint Lid
62WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
633406839 Whirlpool Drying Rack
634392901 Whirlpool Biscuit Spray Paint
634392899 Whirlpool Biscuit Touch-Up Paint
634392065 Whirlpool Dryer Maintenance Kit
63350938 Whirlpool Spray Gun
6372017 Whirlpool Appliance Touch-Up Paint White
63PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
63799344 Whirlpool Refrigerator Paint
63KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
63350930 Whirlpool White Spray Paint
633391885 Whirlpool Connector
