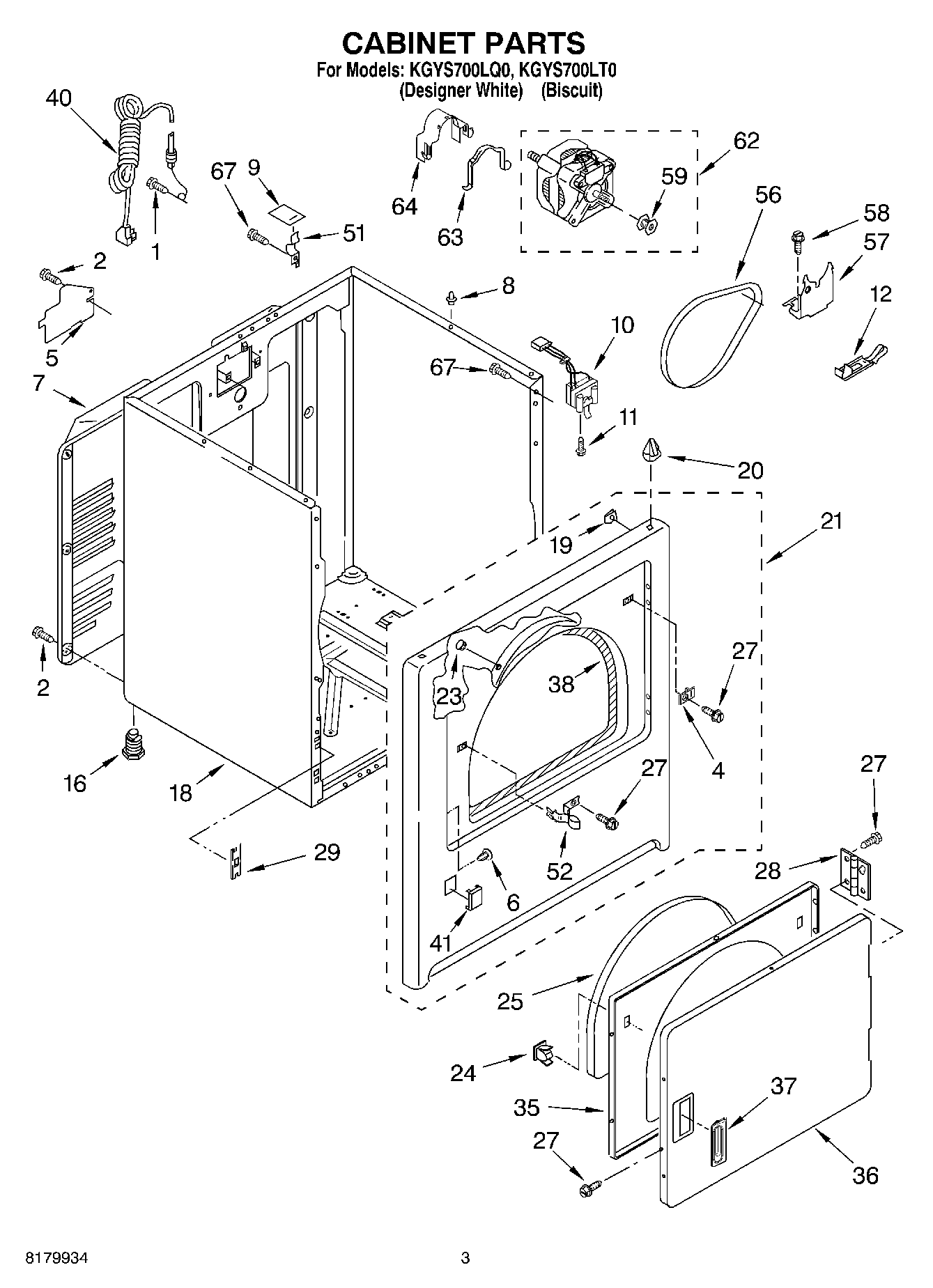

KGYS700LT0 02 – CABINET

Products

Position	Product
1	W10850756 Whirlpool Screw
2	WP693995 Whirlpool Screw
4	Plug, Strike Hole (Biscuit)
4	WP3403630 Whirlpool Plug
5	W11539855 Whirlpool Refrigerator Pump
6	Plug, Hinge Hole (4) (Biscuit)
6	WP3404413 Whirlpool Plug
7	280043 Whirlpool Rear Panel
8	Locator, Top
9	18849 Whirlpool Pad
10	WP3406107 Whirlpool Dryer Door Switch
11	WP3395530 Whirlpool Screw
12	WP691366 Whirlpool Dryer Idler Pulley Assembly
16	49621 Whirlpool Leveling Feet
18	8533643 Whirlpool Dryer White Cabinet
18	Cabinet (Biscuit)
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Panel Front (Biscuit)
21	Front Panel Assembly
23	279220 Whirlpool Clip
24	279570 Whirlpool Dryer Door Latch Kit
25	SEAL-DOOR DRYER
27	WP488627 Whirlpool Refrigerator Screw
28	WPW10362431 Whirlpool Hinge Assembly
29	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
35	WP3402341 Whirlpool Door
36	Door, Front (Biscuit)
36	W10861227 Whirlpool Door Assembly
37	Handle, Door
37	Handle, Door (Biscuit)
38	W11035878 Whirlpool Bearing and Seal
40	W11222083 Whirlpool Power Cord
41	Plug, Front Panel (Biscuit)
41	Plug, Front Panel (White)
51	WP8066217 Whirlpool Hinge
52	W11429589 Whirlpool Strike
56	341241 Whirlpool Dryer Drum Belt
57	WP348780 Whirlpool Base
58	3400500 Whirlpool Screw
59	WP8066184 Whirlpool Dryer Motor Pulley
62	279827 Whirlpool Dryer Drive Motor
63	WP660658 Whirlpool Clamp
64	WP3404162 Whirlpool Clamp
67	WP33001882 Whirlpool Screw
