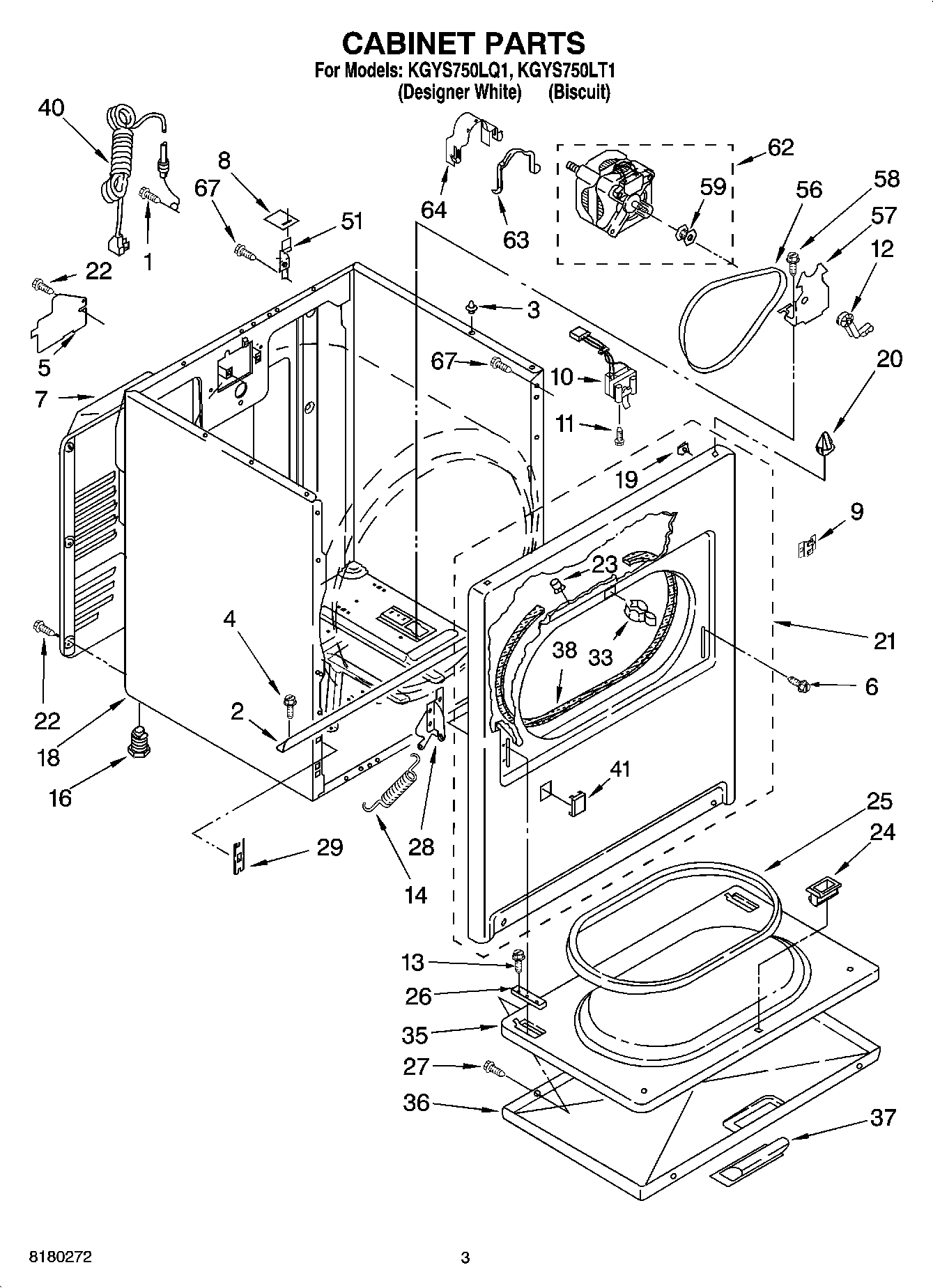

KGYS750LQ1 02 – CABINET PARTS

Products

Position	Product
1	W10850756 Whirlpool Screw
2	Bracket, Cabinet
3	Locator, Top
4	SCREW
5	W11539855 Whirlpool Refrigerator Pump
6	Screw, 10-32 x 1/2
7	280043 Whirlpool Rear Panel
8	18849 Whirlpool Pad
9	8546676 Whirlpool Clip
10	WP3406107 Whirlpool Dryer Door Switch
11	WP3395530 Whirlpool Screw
12	WP691366 Whirlpool Dryer Idler Pulley Assembly
13	WP308685 Whirlpool Microwave Screw
14	8541401 Whirlpool Door Spring
16	49621 Whirlpool Leveling Feet
18	Cabinet (Biscuit)
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Panel, Front (Biscuit)
21	279740 Whirlpool Panel Primary with O/S2
22	WP693995 Whirlpool Screw
23	279220 Whirlpool Clip
24	WP3389441 Whirlpool Door Catch
25	W10906683 Whirlpool Door Seal
26	W11252547 Whirlpool Clip Assembly
27	WP694091 Whirlpool Screw
28	WP8066057 Whirlpool Door Hinge
28	WP8066056 Whirlpool Door Hinge
29	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
33	279570 Whirlpool Dryer Door Latch Kit
35	WP695737 Whirlpool Door
36	WP3393549 Whirlpool Door Assembly
36	Door, Front (Biscuit)
37	Handle, Door (White)
37	Handle, Door (Biscuit)
38	W11035878 Whirlpool Bearing and Seal
40	W11222083 Whirlpool Power Cord
41	Plug, Front Panel (White)
41	Plug, Front Panel (Biscuit)
51	WP8066217 Whirlpool Hinge
56	341241 Whirlpool Dryer Drum Belt
57	WP348780 Whirlpool Base
58	3400500 Whirlpool Screw
59	WP8066184 Whirlpool Dryer Motor Pulley
62	279827 Whirlpool Dryer Drive Motor
63	WP660658 Whirlpool Clamp
64	WP3404162 Whirlpool Clamp
67	WP33001882 Whirlpool Screw
