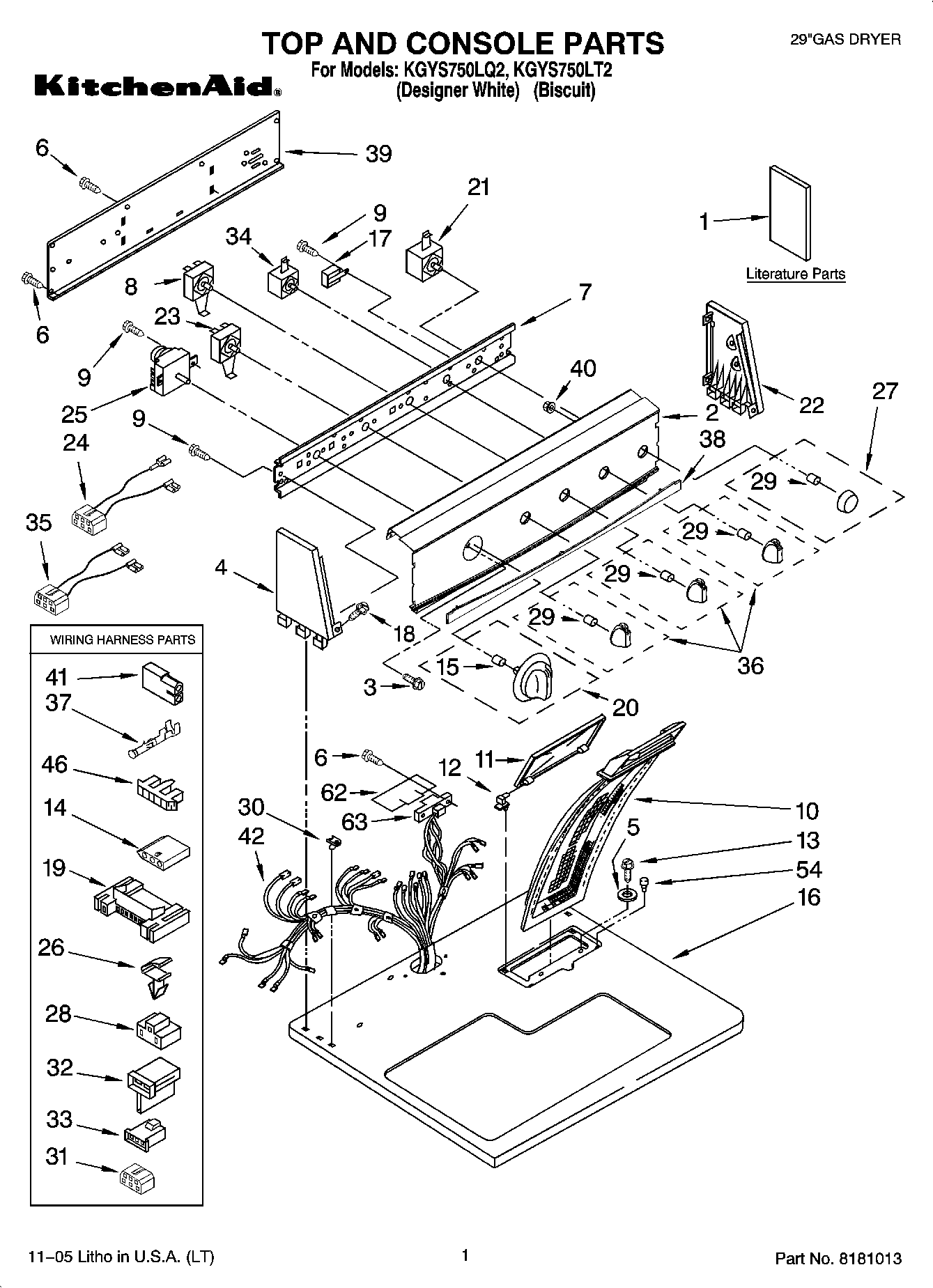

KGYS750LQ2 01 – TOP AND CONSOLE PARTS

KGYS750LQ2 01 – TOP AND CONSOLE PARTS

Written by

in

KGYS750LQ2 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1WPL 677818
1Instructions, Installation
1Wiring Diagram
1Sheet, Cycle Feature
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Use & Care Guide
2Panel, Control (Includes Illus. 38 & 40) (White)
2Panel, Control (Includes Illus. 38 & 40) (Biscuit)
33400859 Whirlpool Screw
4Cap, End (L.H.) (Biscuit)
4End Cap (L.H.) (White)
5Washer
6WP693995 Whirlpool Screw
7Bracket, Control
8WP3405156 Whirlpool Switch
9WP90767 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Biscuit)
11Cover, Lint Screen
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143936144 Whirlpool Connector
15WP688805 Whirlpool Spring Clip
16Top
16Top (Biscuit)
17WP694419 Whirlpool Buzzer Adjuster
18WP388326 Whirlpool Screw
193395683 Whirlpool Connector
20Knob, Timer (White)
20Knob, Timer (Biscuit)
21WP3398094 Whirlpool Push To Start Switch
22End Cap (R.H.) (White)
22End Cap (R.H.) (Biscuit)
23WP3399639 Whirlpool Switch
24Wire, Jumper
243401695 Whirlpool Wire Harness
25WP3976570 Whirlpool Timer
26WP3394427 Whirlpool Clip
27Knob, Push To Start (White)
27Knob, Push To Start (Biscuit)
283401144 Whirlpool Connector
29WP8536939 Whirlpool Spring Clip
30WP357213 Whirlpool Hinge Stopper
31Block, Disconnect
32WP3403499 Whirlpool Connector
33WP3403498 Whirlpool Connector
343399638 Whirlpool Switch
358539893 Whirlpool Wire Harness
36WPL 3956183
36WPL 3956182
37WP94614 Whirlpool Terminal
38WPL 8536944
38WPL 8536945
39W10103406 Whirlpool Rear Panel
40WPL 8533828
41Receptacle, Latching (2-Way) (Uses Terminal 94614)
42WPL 8299881
46Connector, Timer
54Bumper, Lint Lid
