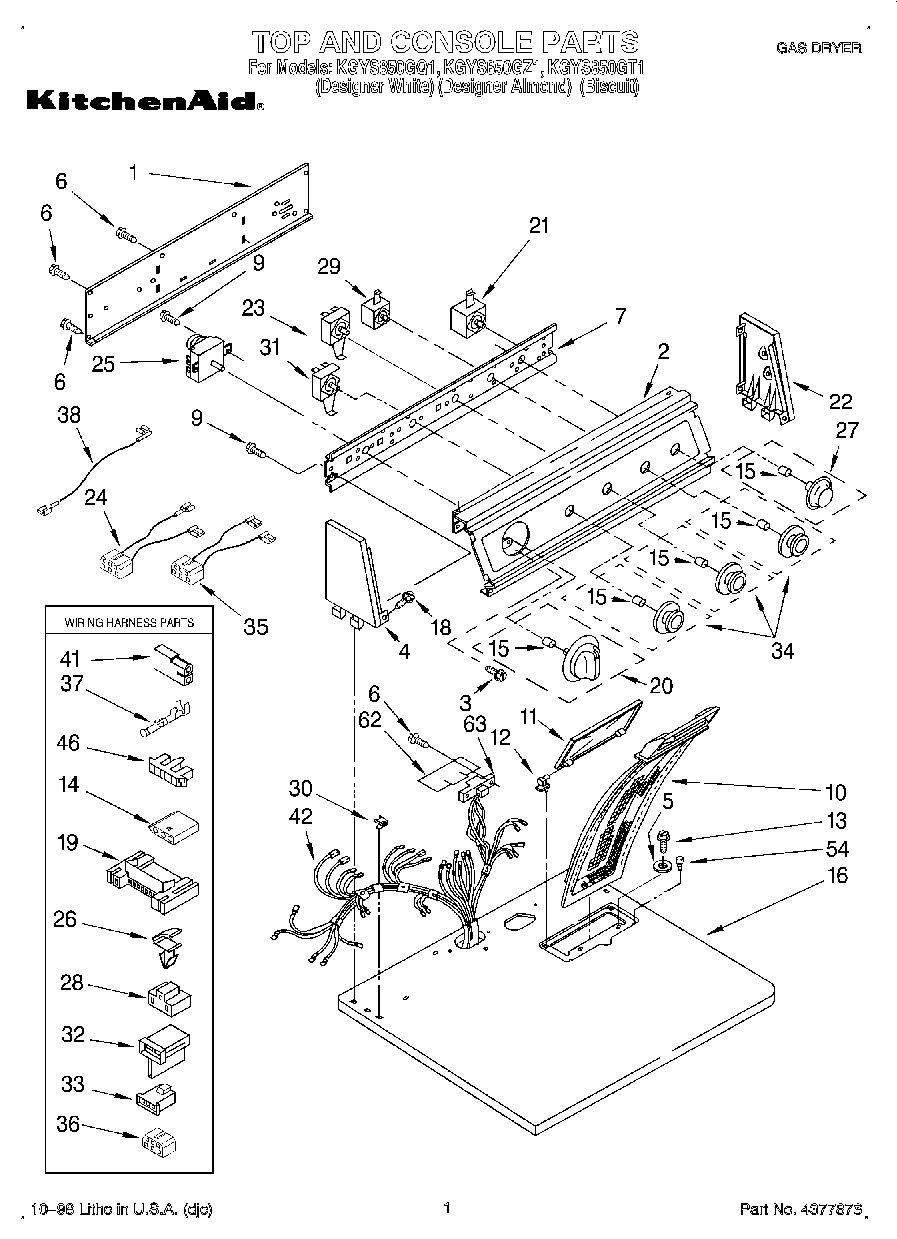

KGYS850GZ1 01 – TOP AND CONSOLE, LIT/OPTIONAL

KGYS850GZ1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

KGYS850GZ1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
WPL LIT3406681
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
Instructions, Installation
Almond (Uncut)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
350938 Whirlpool Spray Gun
WPL LIT3405633
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
1Panel, Rear Console
2Panel, Control (Biscuit)
2Panel, Control (White)
2Panel, Control (Almond)
33400859 Whirlpool Screw
4End Cap (L.H.)
4Cap, End (L.H.) (Biscuit)
4Cap, End (L.H.)
5Washer
6WP693995 Whirlpool Screw
7Bracket, Control
9WPW10139210 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Biscuit)
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143936144 Whirlpool Connector
15WP688805 Whirlpool Spring Clip
16Top (Almond)
16Top (Biscuit)
16Top (White)
18WP388326 Whirlpool Screw
193395683 Whirlpool Connector
20Knob, Timer (Biscuit)
20Knob, Timer (Almond)
20Knob, Timer (White)
21WP3398094 Whirlpool Push To Start Switch
22Cap, End (R.H.) (Biscuit)
22Cap, End (R.H.)
22Cap, End (R.H.)
23WP3399640 Whirlpool Switch
243397695 Whirlpool Wire Harness
25WP3976570 Whirlpool Timer
26WP3394427 Whirlpool Clip
27Knob, Push-To-Start (Biscuit)
27Knob, Push To Start (Almond)
27Knob, Push To Start (White)
283401144 Whirlpool Connector
29WP3398093 Whirlpool Buzzer Adjuster
30WP357213 Whirlpool Hinge Stopper
31WP3405156 Whirlpool Switch
32WP3403499 Whirlpool Connector
33WP3403498 Whirlpool Connector
34Knob, Control (2) (White)
34Knob, Control (2) (Biscuit)
34Knob, Control (Almond Model)
35Wire-Jumper Assembly
36Block, Disconnect
37WP94614 Whirlpool Terminal
38Wire, Jumper (Tan)
41Receptacle, Latching (2-Way) (Uses Terminal 94614)
42Harness, Wiring
46Connector, Timer
54Bumper, Lint Lid
62WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
633391885 Whirlpool Connector
