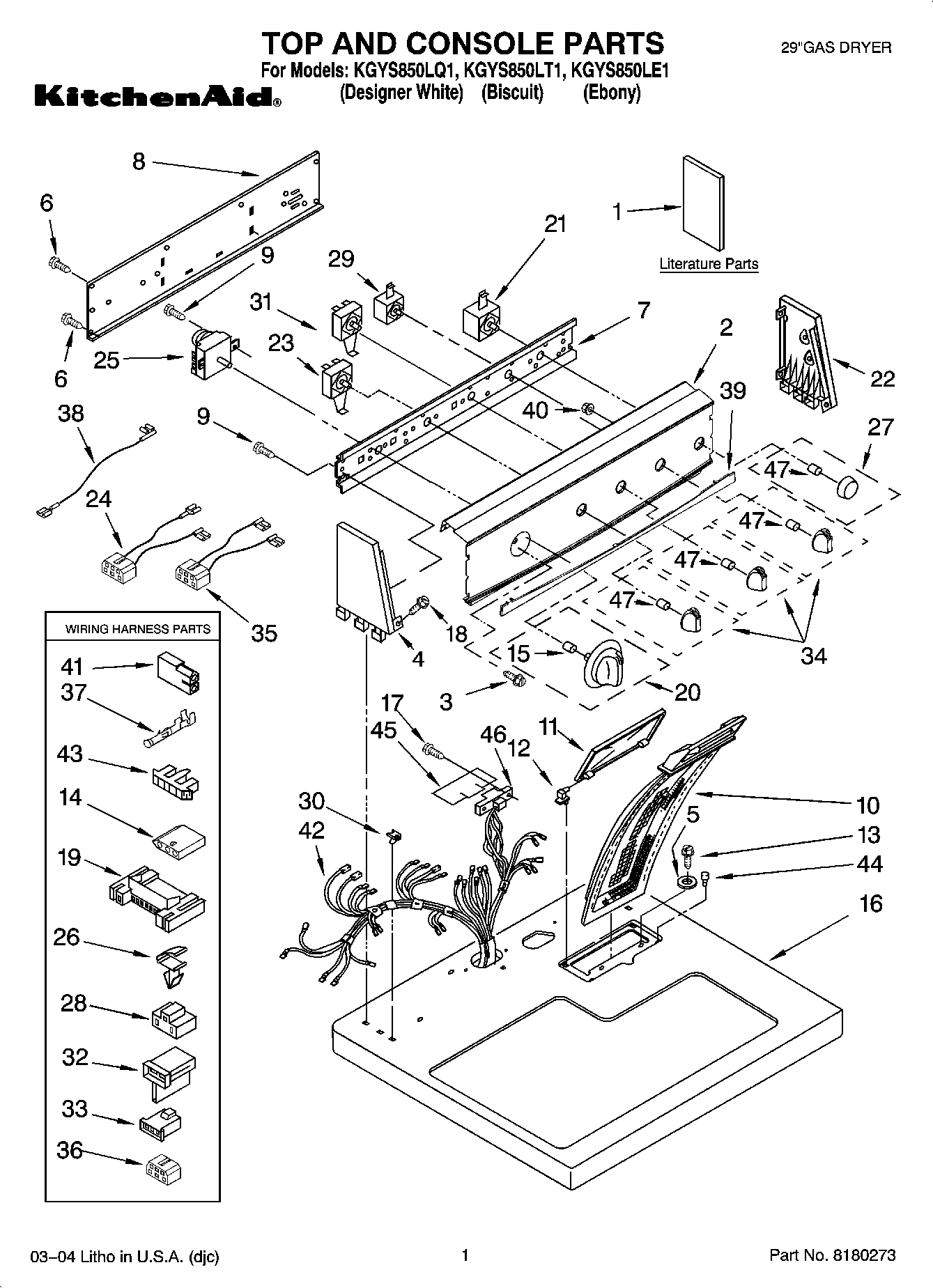

KGYS850LE1 01 – TOP AND CONSOLE PARTS
Written by
in
KGYS850LE1 01 – TOP AND CONSOLE PARTS
Products
Position
Product
1
Literature Parts (Sheet, Cycle Feature)
1
WPL 677818
1
Literature Parts (Use & Care Guide)
1
Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1
Literature Parts (Wiring Diagram)
1
Literature Parts (Installation Instructions)
2
Panel, Control (Includes Illus. 39 & 40) (White)
2
Panel, Control (Includes Illus. 39 & 40) (Biscuit)
2
Panel, Control (Includes Illus. 39 & 40) (Black)
3
3400859 Whirlpool Screw
4
Cap, End (L.H.) (Biscuit)
4
End Cap (L.H.) (Black)
4
End Cap (L.H.) (White)
5
Washer
6
WP693995 Whirlpool Screw
7
Bracket, Control
8
W10103406 Whirlpool Rear Panel
9
WPW10139210 Whirlpool Screw
10
WP349639 Whirlpool Lint Filter
11
Cover, Lint Screen
11
Cover, Lint Screen (Biscuit)
11
Cover, Lint Screen (Black)
12
WPW10044470 Whirlpool Hinge Assembly
12
WPW10044480 Whirlpool Hinge Assembly
13
W11693756 Whirlpool Screw Assembly
14
3936144 Whirlpool Connector
15
WP688805 Whirlpool Spring Clip
16
Top
16
Top (Biscuit)
16
Top (Black)
17
WP33001882 Whirlpool Screw
18
WP388326 Whirlpool Screw
19
3395683 Whirlpool Connector
20
Knob, Timer (White)
20
Knob, Timer (Black)
20
Knob, Timer (Biscuit)
21
WP3398094 Whirlpool Push To Start Switch
22
End Cap (R.H.) (Black)
22
End Cap (R.H.) (Biscuit)
22
End Cap (R.H.) (White)
23
WP3399640 Whirlpool Switch
24
Wire, Jumper
25
WP3976570 Whirlpool Timer
26
WP3394427 Whirlpool Clip
27
WPL 8536923
27
Knob, Push To Start (Biscuit)
27
Knob, Push To Start (White)
28
3401144 Whirlpool Connector
29
WP3398093 Whirlpool Buzzer Adjuster
30
WP357213 Whirlpool Hinge Stopper
31
WP3405156 Whirlpool Switch
32
WP3403499 Whirlpool Connector
33
WP3403498 Whirlpool Connector
34
WPL 3956182
34
WPL 3956183
34
WPL 3956184
35
Wire, Jumper (Temperature)
36
Block, Disconnect
37
WP94614 Whirlpool Terminal
38
Wire, Jumper (Tan)
39
WPL 8536944
39
WPL 8536945
39
WPL 8536946
40
WPL 8533828
41
Receptacle, Latching (2-Way) (Uses Terminal 94614)
42
WPL 8299881
43
Connector, Timer
44
Bumper, Lint Lid
45
WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
46
3391885 Whirlpool Connector
47
799344 Whirlpool Refrigerator Paint
47
350938 Whirlpool Spray Gun
47
72017 Whirlpool Appliance Touch-Up Paint White
47
KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
47
W11224254 Whirlpool Test Kit
47
WPL 786032
47
WPL 786020
47
72032 Whirlpool Touch Up Paint Black
47
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
47
4392899 Whirlpool Biscuit Touch-Up Paint
47
350930 Whirlpool White Spray Paint
47
WP8536939 Whirlpool Spring Clip
47
4392065 Whirlpool Dryer Maintenance Kit
47
WPL ARI154706A
47
4392901 Whirlpool Biscuit Spray Paint
←
