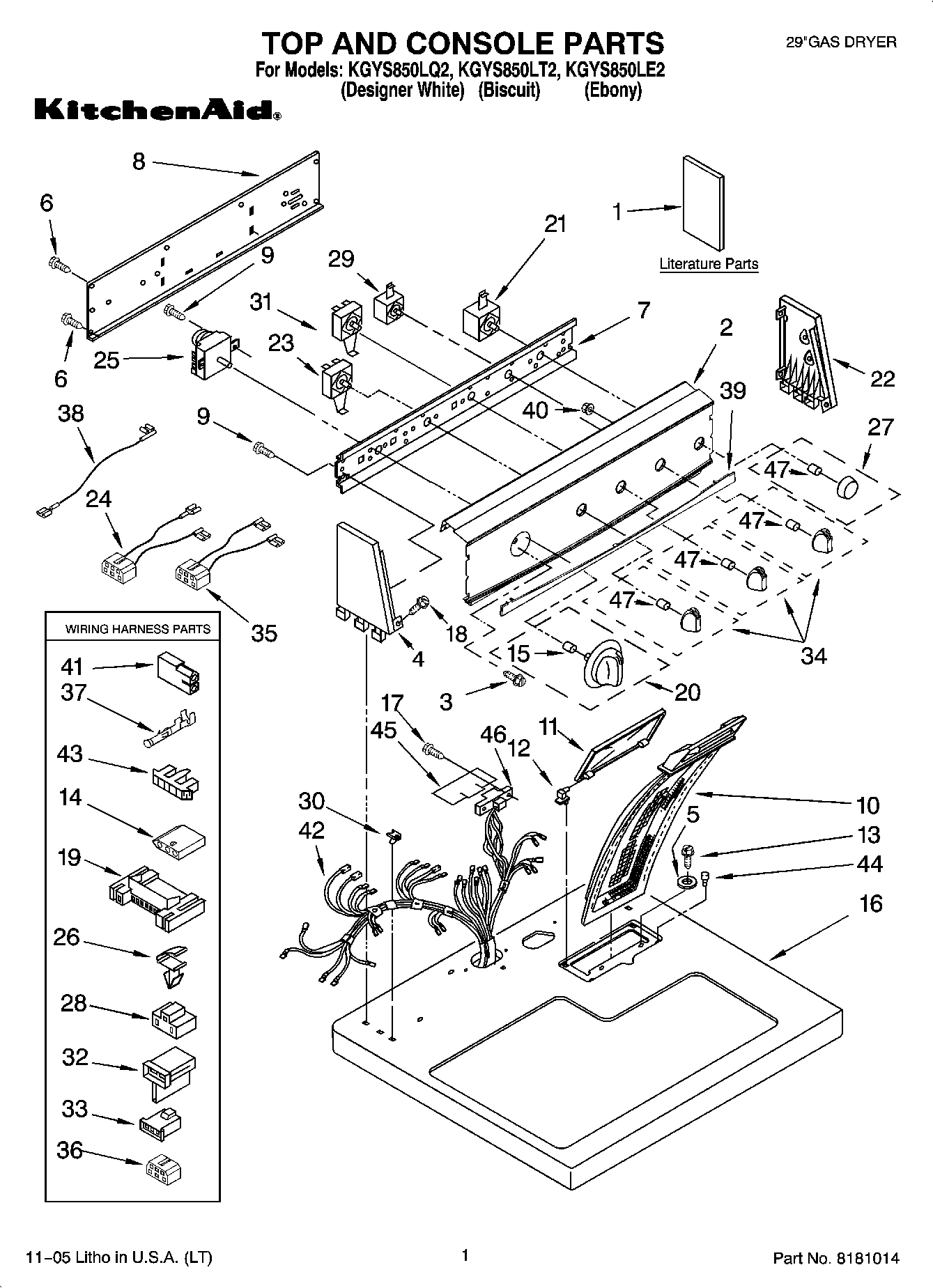

KGYS850LE2 01 – TOP AND CONSOLE PARTS

KGYS850LE2 01 – TOP AND CONSOLE PARTS

Written by

in

KGYS850LE2 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	WPL 677818
1	Instructions, Installation
1	Sheet, Cycle Feature
1	Use & Care Guide
1	Wiring Diagram
2	Panel, Control (Includes Illus. 39 & 40) (White)
2	Panel, Control (Includes Illus. 39 & 40) (Biscuit)
2	Panel, Control (Includes Illus. 39 & 40) (Black)
3	3400859 Whirlpool Screw
4	Cap, End (L.H.) (Biscuit)
4	End Cap (L.H.) (White)
4	End Cap (L.H.) (Black)
5	Washer
6	WP693995 Whirlpool Screw
7	Bracket, Control
8	W10103406 Whirlpool Rear Panel
9	WP90767 Whirlpool Screw
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (Biscuit)
11	Cover, Lint Screen
11	Cover, Lint Screen (Black)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	3936144 Whirlpool Connector
15	WP688805 Whirlpool Spring Clip
16	Top (Black)
16	Top (Biscuit)
16	Top
17	WP33001882 Whirlpool Screw
18	WP388326 Whirlpool Screw
19	3395683 Whirlpool Connector
20	Knob, Timer (White)
20	Knob, Timer (Biscuit)
20	Knob, Timer (Black)
21	WP3398094 Whirlpool Push To Start Switch
22	End Cap (R.H.) (White)
22	End Cap (R.H.) (Biscuit)
22	End Cap (R.H.) (Black)
23	WP3399640 Whirlpool Switch
24	Wire, Jumper
25	WP3976570 Whirlpool Timer
26	WP3394427 Whirlpool Clip
27	WPL 8536923
27	Knob, Push To Start (White)
27	Knob, Push To Start (Biscuit)
28	3401144 Whirlpool Connector
29	WP3398093 Whirlpool Buzzer Adjuster
30	WP357213 Whirlpool Hinge Stopper
31	WP3405156 Whirlpool Switch
32	WP3403499 Whirlpool Connector
33	WP3403498 Whirlpool Connector
34	WPL 3956184
34	WPL 3956183
34	WPL 3956182
35	Wire, Jumper (Temperature)
36	Block, Disconnect
37	WP94614 Whirlpool Terminal
38	Wire, Jumper (Tan)
39	WPL 8536946
39	WPL 8536945
39	WPL 8536944
40	WPL 8533828
41	Receptacle, Latching (2-Way) (Uses Terminal 94614)
42	WPL 8299881
43	Connector, Timer
44	Bumper, Lint Lid
45	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
46	3391885 Whirlpool Connector
47	WP8536939 Whirlpool Spring Clip
