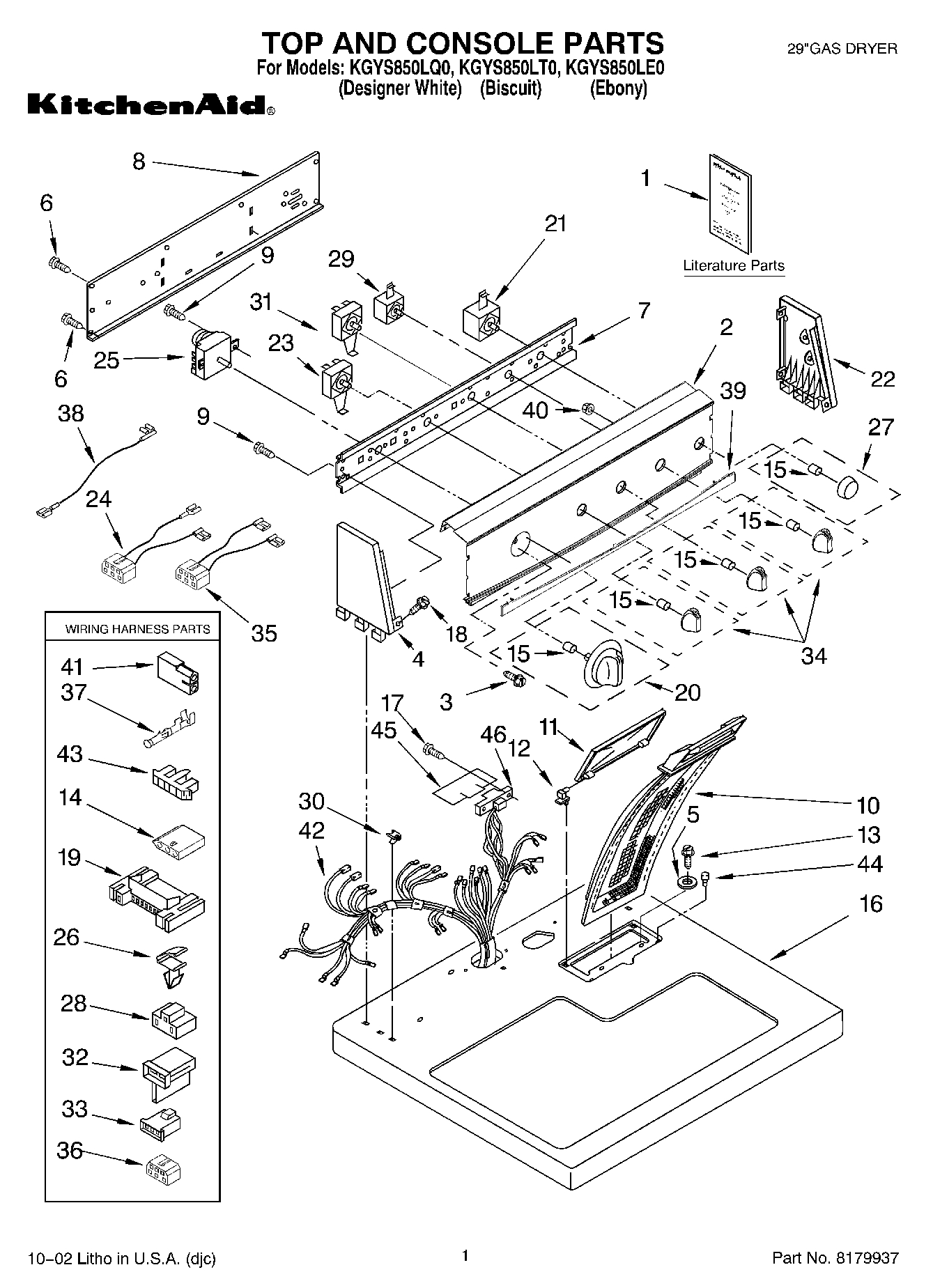

KGYS850LQ0 01 – TOP AND CONSOLE, LITERATURE

KGYS850LQ0 01 – TOP AND CONSOLE, LITERATURE

Written by

in

KGYS850LQ0 01 – TOP AND CONSOLE, LITERATURE

Products

PositionProduct
1Literature Parts (Use & Care Guide)
1WPL 677818
1Literature Parts (Installation Instructions)
1Literature Parts (Wiring Diagram)
2Panel, Control (Includes Illus. 39 & 40) (White)
2Panel, Control (Includes Illus. 39 & 40) (Biscuit)
2Panel, Control (Includes Illus. 39 & 40) (Black)
33400859 Whirlpool Screw
4End Cap (L.H.) (Black)
4End Cap (L.H.) (White)
4Cap, End (L.H.) (Biscuit)
5Washer
6WP693995 Whirlpool Screw
7Bracket, Control
8W10103406 Whirlpool Rear Panel
9WPW10139210 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Black)
11Cover, Lint Screen
11Cover, Lint Screen (Biscuit)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143936144 Whirlpool Connector
15WP688805 Whirlpool Spring Clip
16Top (Black)
16Top
16Top (Biscuit)
17WP33001882 Whirlpool Screw
18WP388326 Whirlpool Screw
193395683 Whirlpool Connector
20Knob, Timer (Black)
20Knob, Timer (Biscuit)
20Knob, Timer (White)
21WP3398094 Whirlpool Push To Start Switch
22End Cap (R.H.) (Black)
22End Cap (R.H.) (Biscuit)
22End Cap (R.H.) (White)
23WP3399640 Whirlpool Switch
24Wire, Jumper
25WP3976570 Whirlpool Timer
26WP3394427 Whirlpool Clip
27Knob, Push To Start (Biscuit)
27Knob, Push To Start (White)
27WPL 8536923
283401144 Whirlpool Connector
29WP3398093 Whirlpool Buzzer Adjuster
30WP357213 Whirlpool Hinge Stopper
31WP3405156 Whirlpool Switch
32WP3403499 Whirlpool Connector
33WP3403498 Whirlpool Connector
34Kn
34WPL 8536925
34WPL 8536926
35Wire, Jumper (Temperature)
36Block, Disconnect
37WP94614 Whirlpool Terminal
38Wire, Jumper (Tan)
39WPL 8536946
39WPL 8536945
39WPL 8536944
40WPL 8533828
41Receptacle, Latching (2-Way) (Uses Terminal 94614)
42WPL 8299881
43Connector, Timer
44Bumper, Lint Lid
45WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
46W11224254 Whirlpool Test Kit
46KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
46350938 Whirlpool Spray Gun
46350930 Whirlpool White Spray Paint
4672017 Whirlpool Appliance Touch-Up Paint White
46WPL 786032
46WPL 786020
46799344 Whirlpool Refrigerator Paint
463391885 Whirlpool Connector
4672032 Whirlpool Touch Up Paint Black
464392899 Whirlpool Biscuit Touch-Up Paint
464392901 Whirlpool Biscuit Spray Paint
46PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
464392065 Whirlpool Dryer Maintenance Kit
