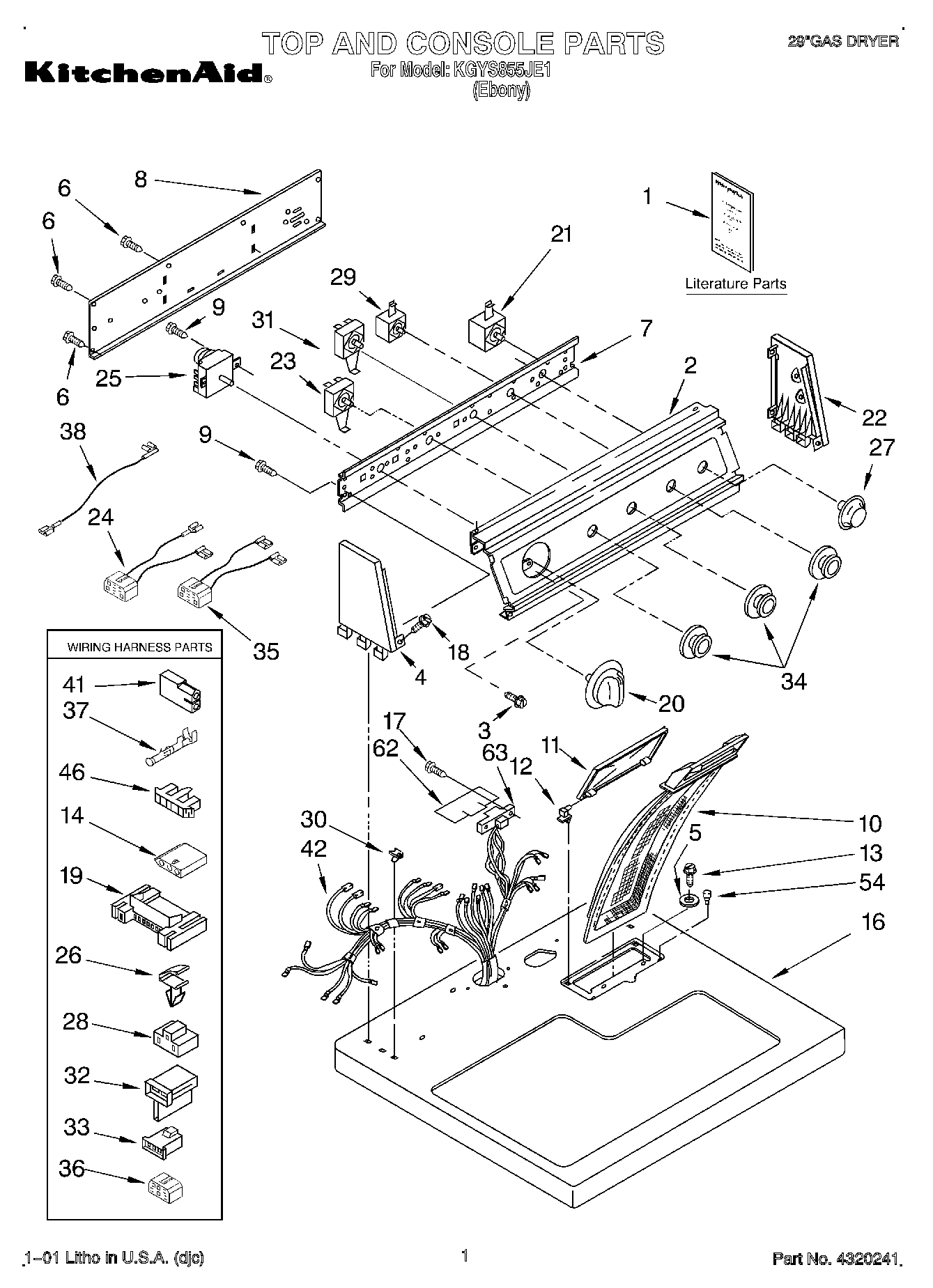

KGYS855JE1 01 – TOP AND CONSOLE, LIT/OPTIONAL

KGYS855JE1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

KGYS855JE1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
1Literature Parts (Guide, Use & Care)
1Instructions, Installation
1Literature Parts (Label, Wiring Diagram)
2Panel, Control
33400859 Whirlpool Screw
4End Cap (L.H.) (Black)
5Washer
6WP693995 Whirlpool Screw
7Bracket, Control
8W10103406 Whirlpool Rear Panel
9WPW10139210 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143936144 Whirlpool Connector
16Top (Black)
17WP33001882 Whirlpool Screw
18WP388326 Whirlpool Screw
193395683 Whirlpool Connector
20Knob, Timer
21WP3398094 Whirlpool Push To Start Switch
22End Cap (R.H.) (Black)
23WP3399640 Whirlpool Switch
24Wire, Jumper
25WP3976570 Whirlpool Timer
26WP3394427 Whirlpool Clip
27Knob, Push To Start
283401144 Whirlpool Connector
29WP3398093 Whirlpool Buzzer Adjuster
30WP357213 Whirlpool Hinge Stopper
31WP3405156 Whirlpool Switch
32WP3403499 Whirlpool Connector
33WP3403498 Whirlpool Connector
34Knob, Control (3)
35Wire, Jumper (Temperature)
36Block, Disconnect
37WP94614 Whirlpool Terminal
38Wire, Jumper (Tan)
41Receptacle, Latching (2-Way) (Uses Terminal 94614)
42Harness, Wiring
46Connector, Timer
54Bumper, Lint Lid
62WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
63350938 Whirlpool Spray Gun
63WPL 786032
63WPL 786020
6372032 Whirlpool Touch Up Paint Black
633391885 Whirlpool Connector
