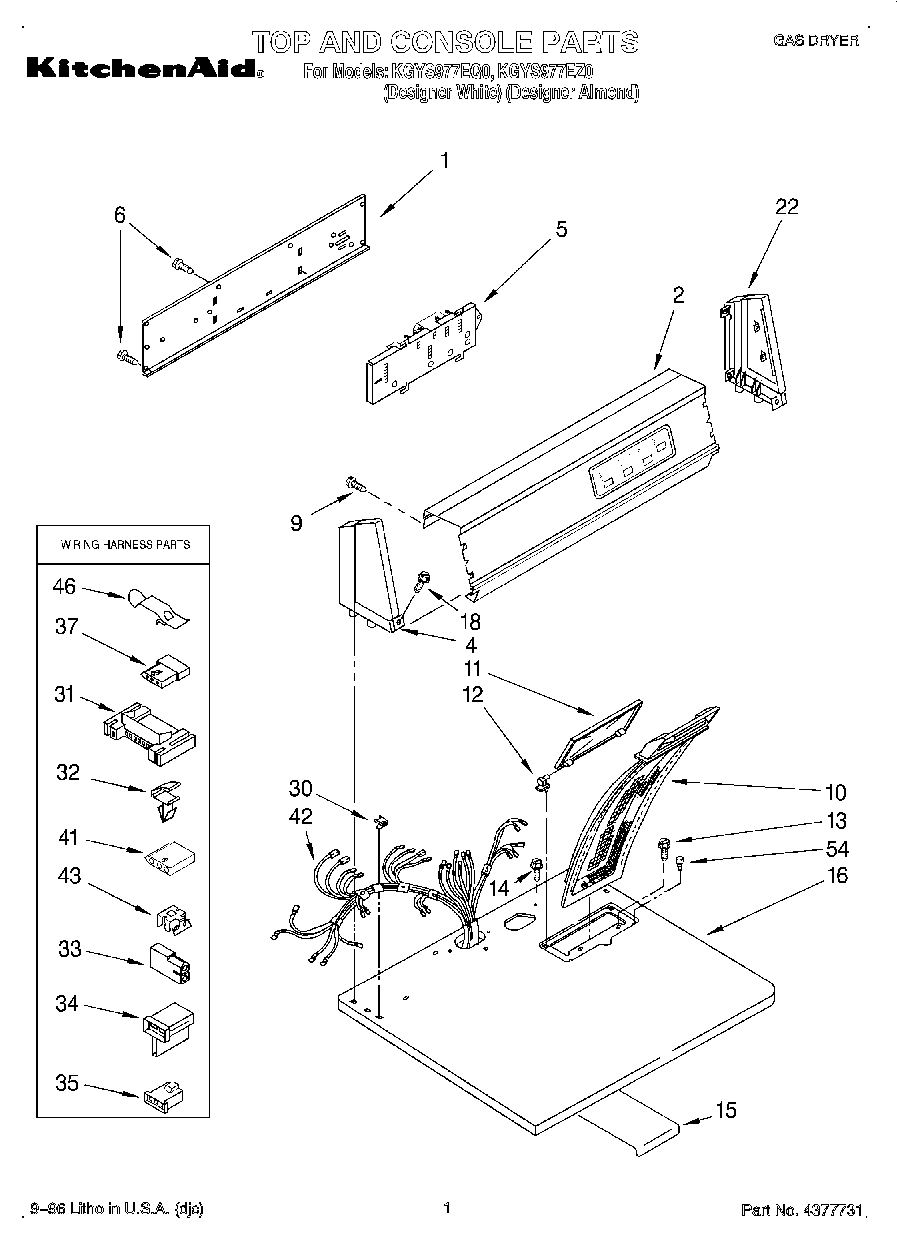

KGYS977EQ0 01 – TOP AND CONSOLE, LIT/OPTIONALadmin2025-04-26T10:39:28+00:00KGYS977EQ0 01 – TOP AND CONSOLE, LIT/OPTIONAL
Products
| Position | Product |
|---|
| 350930 Whirlpool White Spray Paint |
| Label, Wiring Diagram |
| Tech Sheet |
| Guide, Use & Care |
| Instructions, Installation |
| Almond (Uncut) |
| WP72107 Whirlpool Touchup |
| 799344 Whirlpool Refrigerator Paint |
| 350938 Whirlpool Spray Gun |
| 350956 Whirlpool Spray Assembly |
| 72017 Whirlpool Appliance Touch-Up Paint White |
| 1 | Panel, Rear Console |
| 2 | Control Panel & Bracket Assembly (White) |
| 2 | Control Panel & Bracket Assembly (Almond) |
| 4 | Cap, End (L.H.) |
| 4 | End Cap (L.H.) |
| 5 | Electronic Control Board |
| 6 | WP693995 Whirlpool Screw |
| 9 | WP90767 Whirlpool Screw |
| 10 | WP349639 Whirlpool Lint Filter |
| 11 | Cover, Lint Screen (Almond) |
| 11 | Cover, Lint Screen (White) |
| 12 | WPW10044470 Whirlpool Hinge Assembly |
| 12 | WPW10044480 Whirlpool Hinge Assembly |
| 13 | W11693756 Whirlpool Screw Assembly |
| 14 | Screw, No. 10 |
| 15 | Panel, Sound Dampening |
| 16 | Top (White) |
| 16 | Top (Almond) |
| 18 | WP388326 Whirlpool Screw |
| 22 | Cap, End (R.H.) |
| 22 | Cap, End (R.H.) |
| 30 | WP357213 Whirlpool Hinge Stopper |
| 31 | 3395683 Whirlpool Connector |
| 32 | WP3394427 Whirlpool Clip |
| 33 | Receptacle, Latching (2-Way) (Uses Terminal 94614) |
| 34 | WP3403499 Whirlpool Connector |
| 35 | WP3403498 Whirlpool Connector |
| 37 | 353424 Whirlpool Connector |
| 41 | Connector (Door Switch) |
| 42 | Harness, Gas |
| 43 | Clip, Ground |
| 46 | Clip, Wire (Tech Sheet/Top) |
| 54 | Bumper, Lint Lid |
