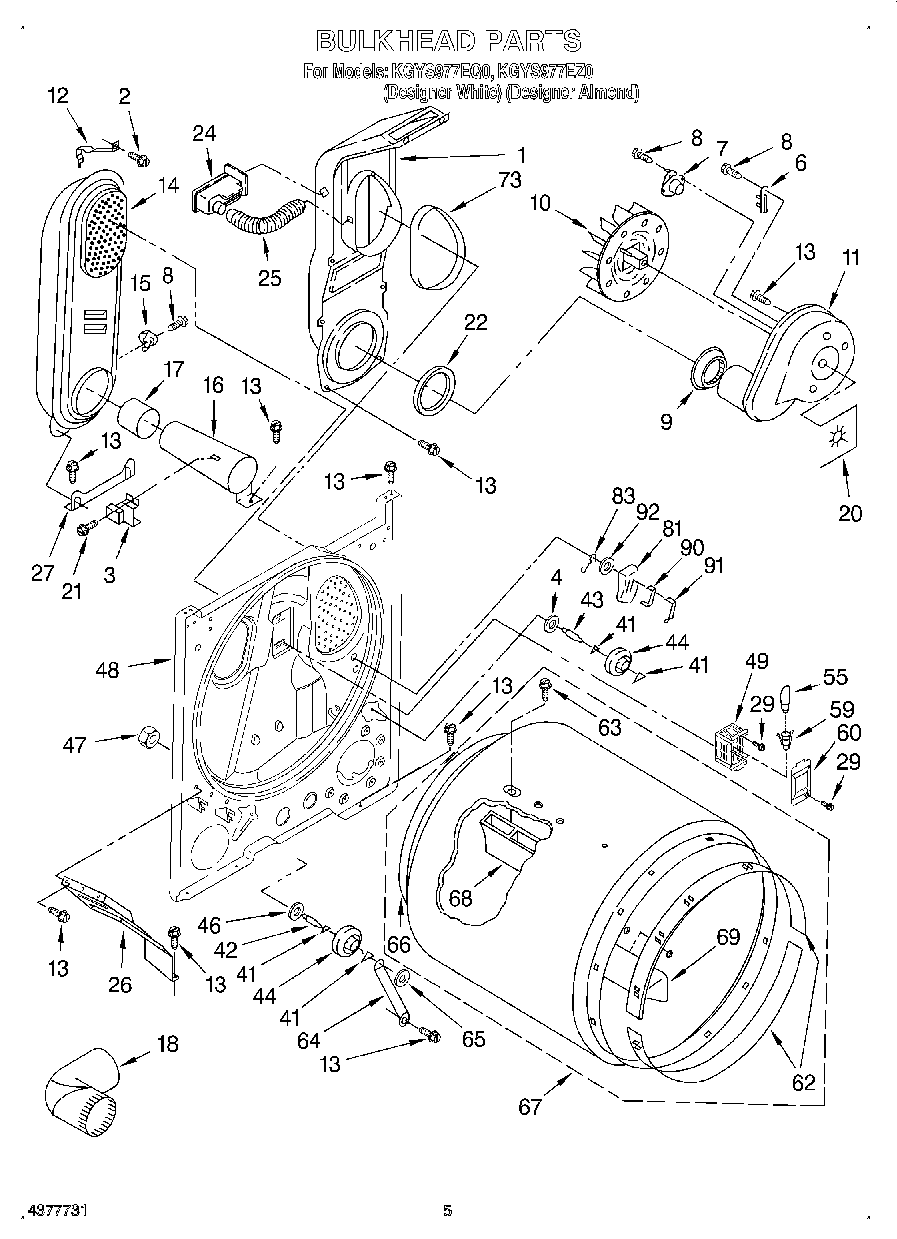

KGYS977EQ0 03 – BULKHEAD

Products

PositionProduct
1Lint Chute Assembly
2WP489463 Whirlpool Refrigerator Screw
3WP338906 Whirlpool Dryer Gas Sensor
4WP3388703 Whirlpool Washer
6WP3392519 Whirlpool Dryer Thermal Fuse
7WP8577274 Whirlpool Dryer Thermistor
8WP90767 Whirlpool Screw
9W11233063 Whirlpool Shield Assembly
10WP694089 Whirlpool Dryer Blower Wheel
11WP8577230 Whirlpool Housing
12279771 Whirlpool Clip
13SCREW
15W11050897 Whirlpool Dryer High Limit Thermostat
16279900 Whirlpool Box O/S1
184“- 90~ Elbow (Exhaust)
20Seal, Blower
21WP3390631 Whirlpool Screw
22W11415783 Whirlpool Seal
24Alert, Lint
25Hose, Differential
26W11398682 Whirlpool Bracket
27Support, Heater Box
29WP308685 Whirlpool Microwave Screw
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44WPW10314173 Whirlpool Dryer Drum Support Wheel
46WP348197 Whirlpool Washer Assembly
47WP3359452 Whirlpool Nut
48W10828905 Whirlpool Bulkhead OS1
493977373 Whirlpool Bracket
55WP22002263 Whirlpool Dryer 10W Light Bulb
59W11700522 Whirlpool Socket
60W11226088 Whirlpool Lens Assembly
62279441 Whirlpool Front Bearing Ring
63WPW10109200 Whirlpool Screw
64W11684613 Whirlpool Bracket
65WP90296 Whirlpool Clip
66W10612022 Whirlpool Felt Seal
67W10899578 Whirlpool Dryer Drum Assembly
68BAFFLE-DRM
69WP3403636 Whirlpool Drum Baffle
73SEAL
81SENSOR KIT
83WP342267 Whirlpool Clip
90WP348859 Whirlpool Electrode Assembly
91WP348860 Whirlpool Electrode
92WP298877 Whirlpool Washer
