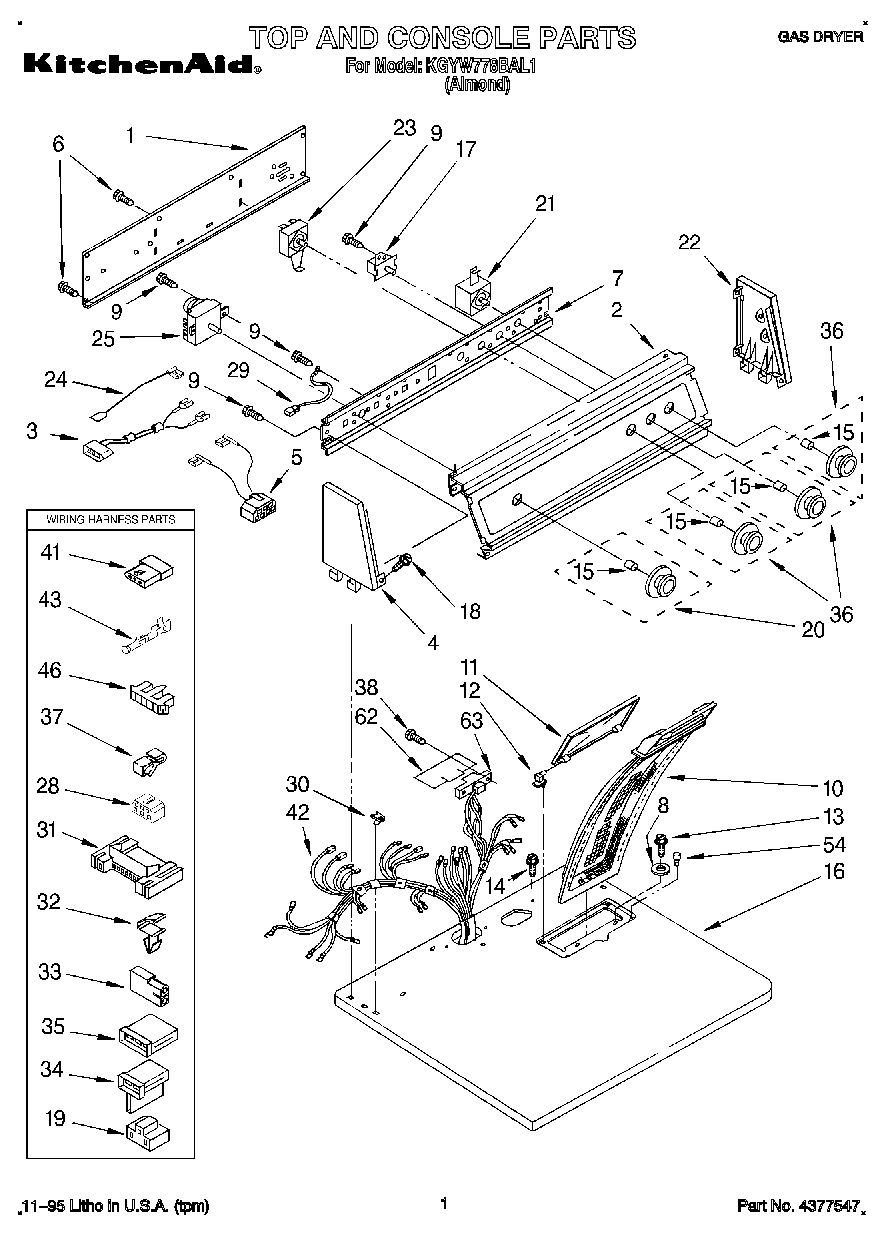

KGYW778BAL1 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Label, Wiring Diagram
	Instructions, Installation
	Guide, Use & Care
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	Guide, Dryer
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
1	Panel, Rear Console
2	Panel, Control
3	Wire, Jumper (Light Switch)
4	End Cap (L.H.)
5	Wire-Jumper Assembly
6	WP693995 Whirlpool Screw
7	Bracket, Control
8	Washer
9	WPW10139210 Whirlpool Screw
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (Almond)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Screw, No. 10
15	WP688805 Whirlpool Spring Clip
16	Top (Almond)
17	Buzzer, Adjustable
18	WP388326 Whirlpool Screw
19	3401144 Whirlpool Connector
20	Knob, Timer
21	Relay, Push To Start
22	Cap, End (R.H.)
23	WP3399640 Whirlpool Switch
24	Wire, Jumper (Tan)
25	Timer, 60Hz.
28	Block, Disconnect
29	Wire, Ground
30	WP357213 Whirlpool Hinge Stopper
31	3395683 Whirlpool Connector
32	WP3394427 Whirlpool Clip
33	Receptacle, Latching (2-Way) (Uses Terminal 94614)
34	WP3403499 Whirlpool Connector
35	WP3403498 Whirlpool Connector
36	Knob, Control
37	Clip, Retainer
38	WP90767 Whirlpool Screw
41	353424 Whirlpool Connector
42	Harness, Gas
43	WP94614 Whirlpool Terminal
46	Connector, Timer
54	Bumper, Lint Lid
62	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
63	3391885 Whirlpool Connector
