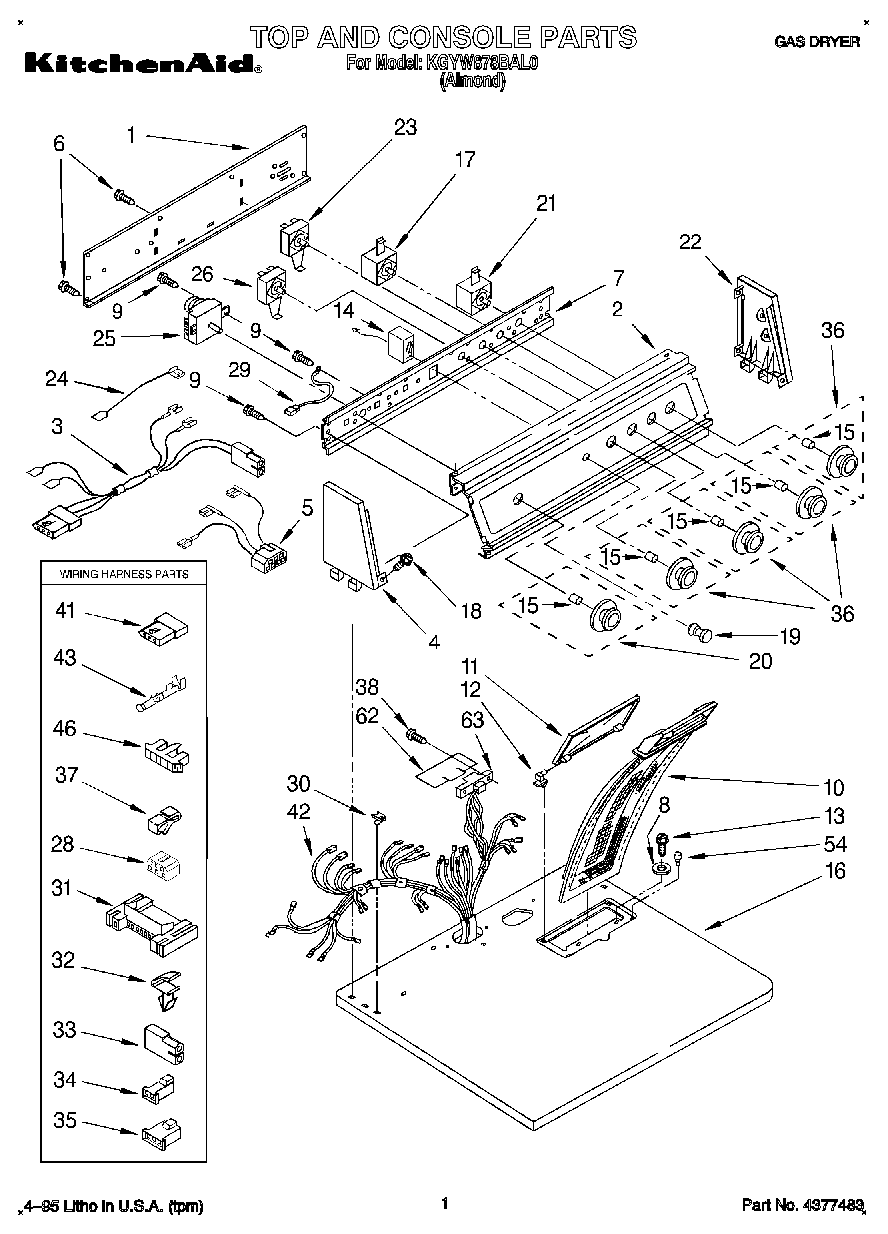

KGYW878BAL0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	Label
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	Instructions, Installation
	350938 Whirlpool Spray Gun
	Guide, Dryer
	WPL LIT3403306
1	Panel, Rear Console
2	Panel, Control
3	Wire, Jumper (Light Switch)
4	End Cap (L.H.)
5	Wire-Jumper Assembly
6	WP693995 Whirlpool Screw
7	Bracket, Control
8	Washer
9	WPW10139210 Whirlpool Screw
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (Almond)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Lamp, Indicator
15	WP688805 Whirlpool Spring Clip
16	Top (Almond)
17	WP3398093 Whirlpool Buzzer Adjuster
18	WP388326 Whirlpool Screw
19	Lens, Light
20	Knob, Timer
21	Relay, Push To Start
22	Cap, End (R.H.)
23	Switch, Temperature (Variable)
24	Wire, Jumper (Tan)
24	Wire, Jumper (Violet)
24	Wire, Jumper (Blue)
25	Timer, 60Hz.
26	Switch, Temperature (Extra-Care)
28	Block, Disconnect
29	Wire, Ground
30	WP357213 Whirlpool Hinge Stopper
31	3395683 Whirlpool Connector
32	WP3394427 Whirlpool Clip
33	Receptacle, Latching (2-Way) (Uses Terminal 94614)
34	Connector, 2-Position (Gas Valve)
35	Connector, 3-Position (Gas Valve)
36	Knob, Control
37	Clip, Retainer
38	WP90767 Whirlpool Screw
41	Connector, 3-Circuit
42	Harness, Gas
43	WP94614 Whirlpool Terminal
46	Connector, Timer
54	Bumper, Lint Lid
62	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
63	3391885 Whirlpool Connector
