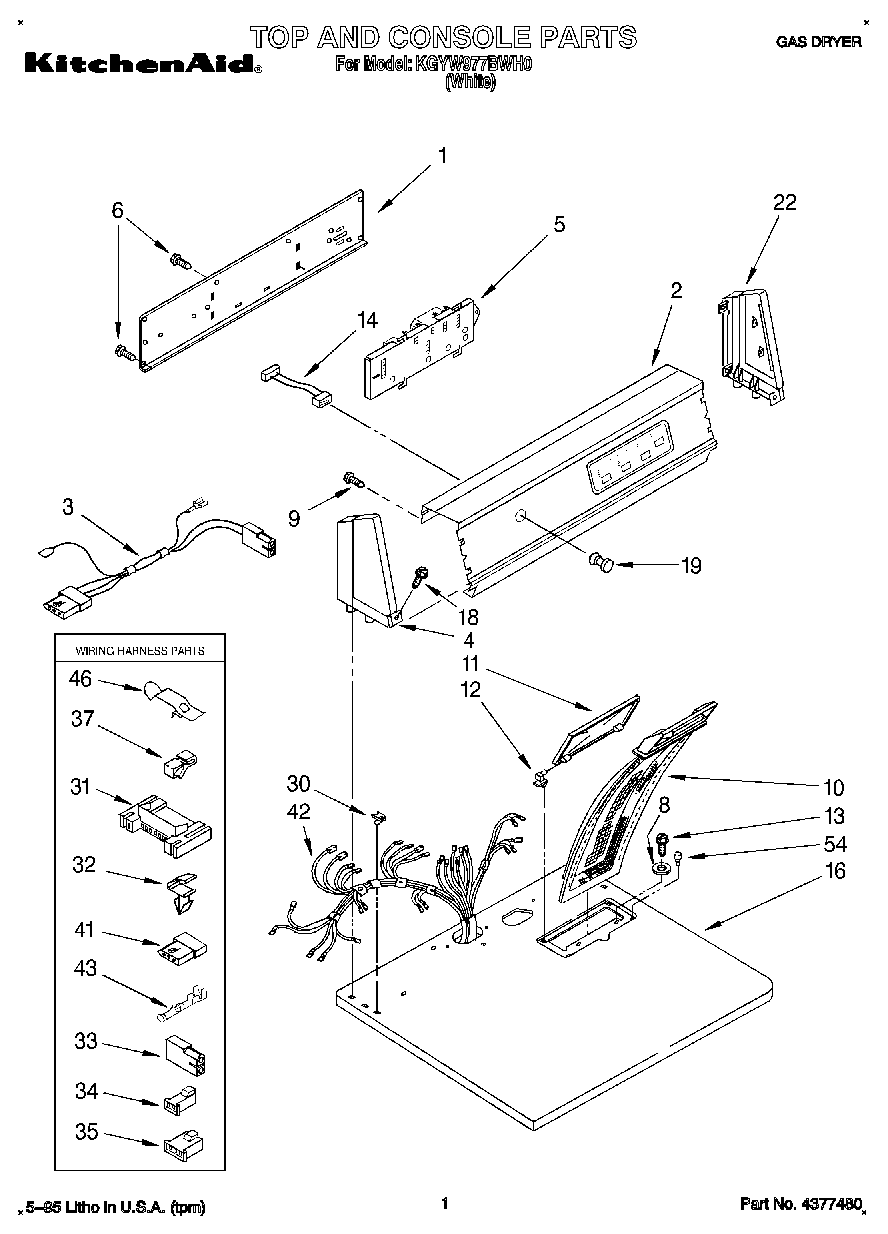

KGYW977BWH0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Guide, Use & Care
	Label, Wiring Diagram
	Tech Sheet
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
	Guide, Dryer
	Instructions, Installation
1	Panel, Rear Console
2	Control Panel & Bracket Assembly
3	Wire, Jumper (Lint Light)
4	Cap, End (L.H.)
5	Electronic Control Board
6	WP693995 Whirlpool Screw
8	Washer
9	WP90767 Whirlpool Screw
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Lamp, Indicator
16	Top (White)
18	WP388326 Whirlpool Screw
19	Lens, Light
22	Cap, End (R.H.)
30	WP357213 Whirlpool Hinge Stopper
31	3395683 Whirlpool Connector
32	WP3394427 Whirlpool Clip
33	Receptacle, Latching (2-Way) (Uses Terminal 94614)
34	Connector, 2-Position (Gas Valve)
35	Connector, 3-Position (Gas Valve)
37	Clip, Retainer
41	Connector, 3-Circuit
42	Harness, Gas
43	WP94614 Whirlpool Terminal
46	Clip, Wire (Tech Sheet/Top)
54	Bumper, Lint Lid
