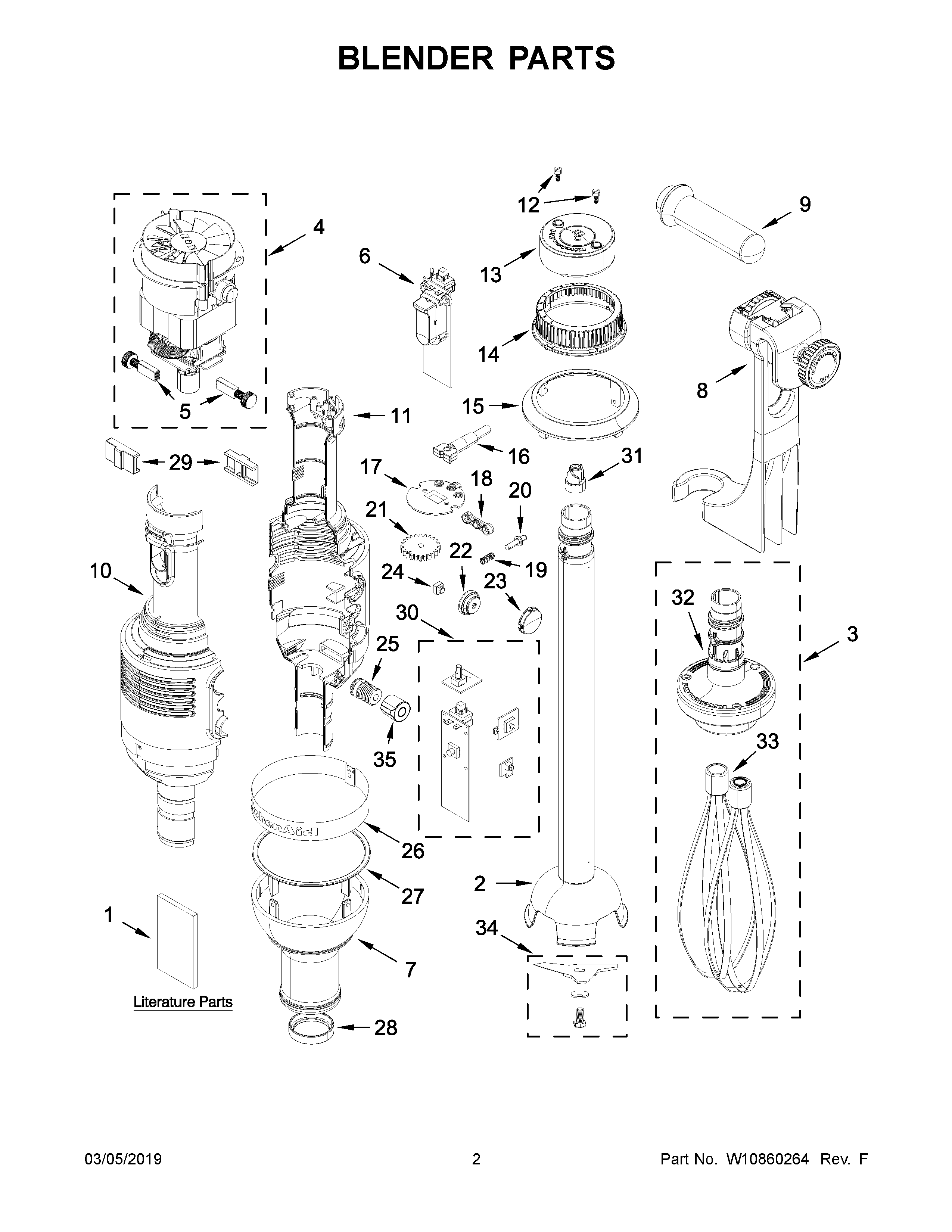

KHBC412OB0 02 – BLENDER PARTS

Products

PositionProduct
1USE & CARE GUIDE
2W10860149 Whirlpool Blender Arm
2AW10860150 Whirlpool Blender Arm
2BW10860151 Whirlpool Blender Arm
2CW10860152 Whirlpool Blender Arm
2DBLENDER ARM – 20"
3WHISK
4MOTOR ASSEMBLY (INCLUDES BRUSHES)
5CABINET (NOT A SERVICEABLE PART)
6PCBA & SWITCH ASSEMBLY (INCLUDES 30)
7APRON ASSEMBLY
8BOWL CLAMP ASSEMBLY
9W10860164 Whirlpool Handle
10MOTOR HOUSING, FRONT
11MOTOR HOUSING, BACK
12SCREW, HANDLE CAP
13HANDLE CAP
14W10860169 Whirlpool Button Assembly
15SPEED SELECTOR BASE
16W10860172 Whirlpool Power Cord
17CORD LOCK
18SPRING STOP PLATE
19SPRING, INTERLOCK
20KNOB, AGITATOR
21PINION, SPEED SELECTOR
22W10860179 Whirlpool Rubber
23BUTTON, CONTINUOUS RUN
24RUBBER, INTERLOCK SWITCH
25W10860183 Whirlpool Nut Assembly
26TRIM BAND
27GASKET
28W10860187 Whirlpool Rubber Grommet
29RUBBER, MOTOR SIDE
30PCBA ASSEMBLY
31W10860192 Whirlpool Adapter
32GEARBOX, WHISK
33TINES, WHISK
34W10860889 Whirlpool Blade
35CAP, HUB
