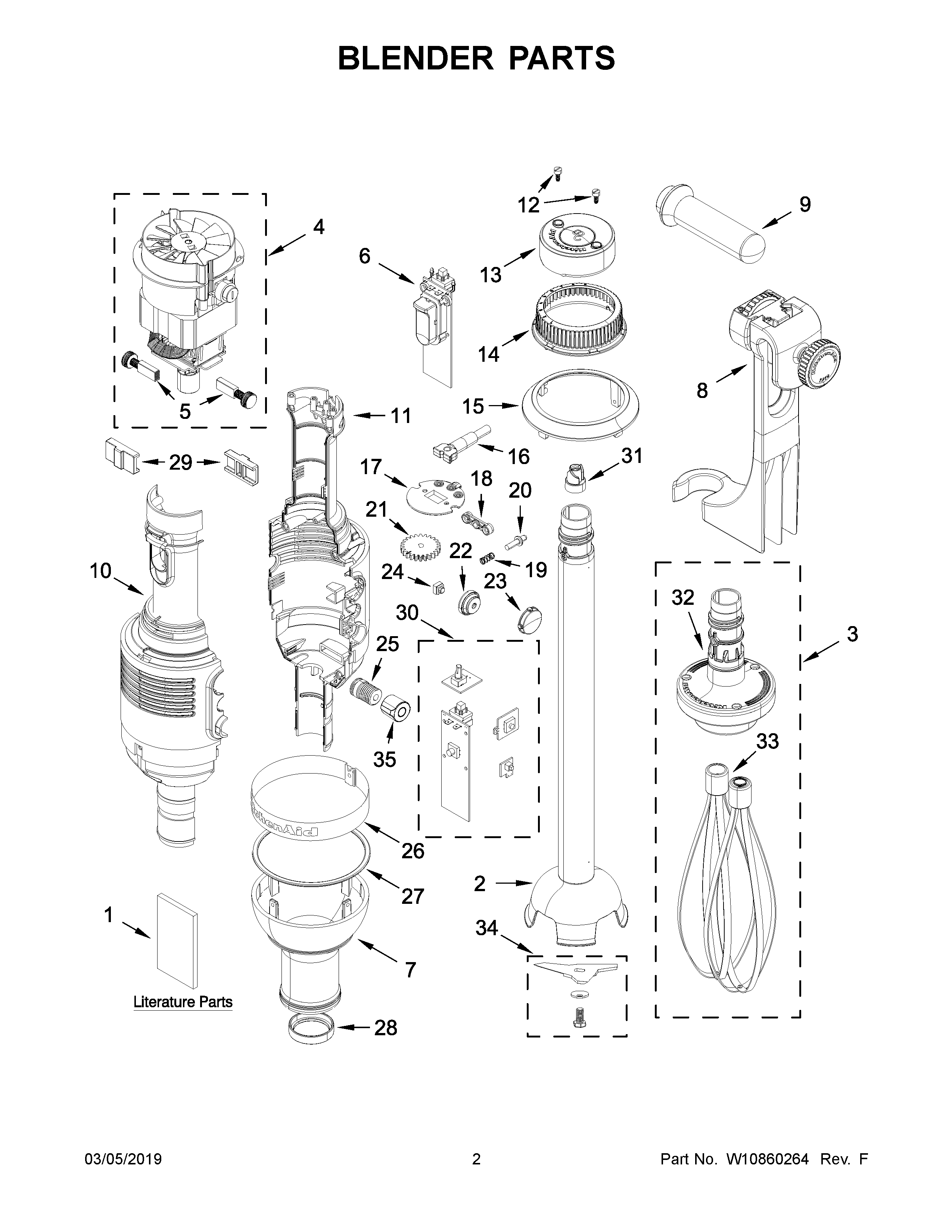

KHBC420OB0 02 – BLENDER PARTS

Products

Position	Product
1	USE & CARE GUIDE
2	W10860149 Whirlpool Blender Arm
2A	W10860150 Whirlpool Blender Arm
2B	W10860151 Whirlpool Blender Arm
2C	W10860152 Whirlpool Blender Arm
2D	BLENDER ARM - 20"
3	WHISK
4	MOTOR ASSEMBLY (INCLUDES BRUSHES)
5	CABINET (NOT A SERVICEABLE PART)
6	PCBA & SWITCH ASSEMBLY (INCLUDES 30)
7	APRON ASSEMBLY
8	BOWL CLAMP ASSEMBLY
9	W10860164 Whirlpool Handle
10	MOTOR HOUSING, FRONT
11	MOTOR HOUSING, BACK
12	SCREW, HANDLE CAP
13	HANDLE CAP
14	W10860169 Whirlpool Button Assembly
15	SPEED SELECTOR BASE
16	W10860172 Whirlpool Power Cord
17	CORD LOCK
18	SPRING STOP PLATE
19	SPRING, INTERLOCK
20	KNOB, AGITATOR
21	PINION, SPEED SELECTOR
22	W10860179 Whirlpool Rubber
23	BUTTON, CONTINUOUS RUN
24	RUBBER, INTERLOCK SWITCH
25	W10860183 Whirlpool Nut Assembly
26	TRIM BAND
27	GASKET
28	W10860187 Whirlpool Rubber Grommet
29	RUBBER, MOTOR SIDE
30	PCBA ASSEMBLY
31	W10860192 Whirlpool Adapter
32	GEARBOX, WHISK
33	TINES, WHISK
34	W10860889 Whirlpool Blade
35	CAP, HUB
