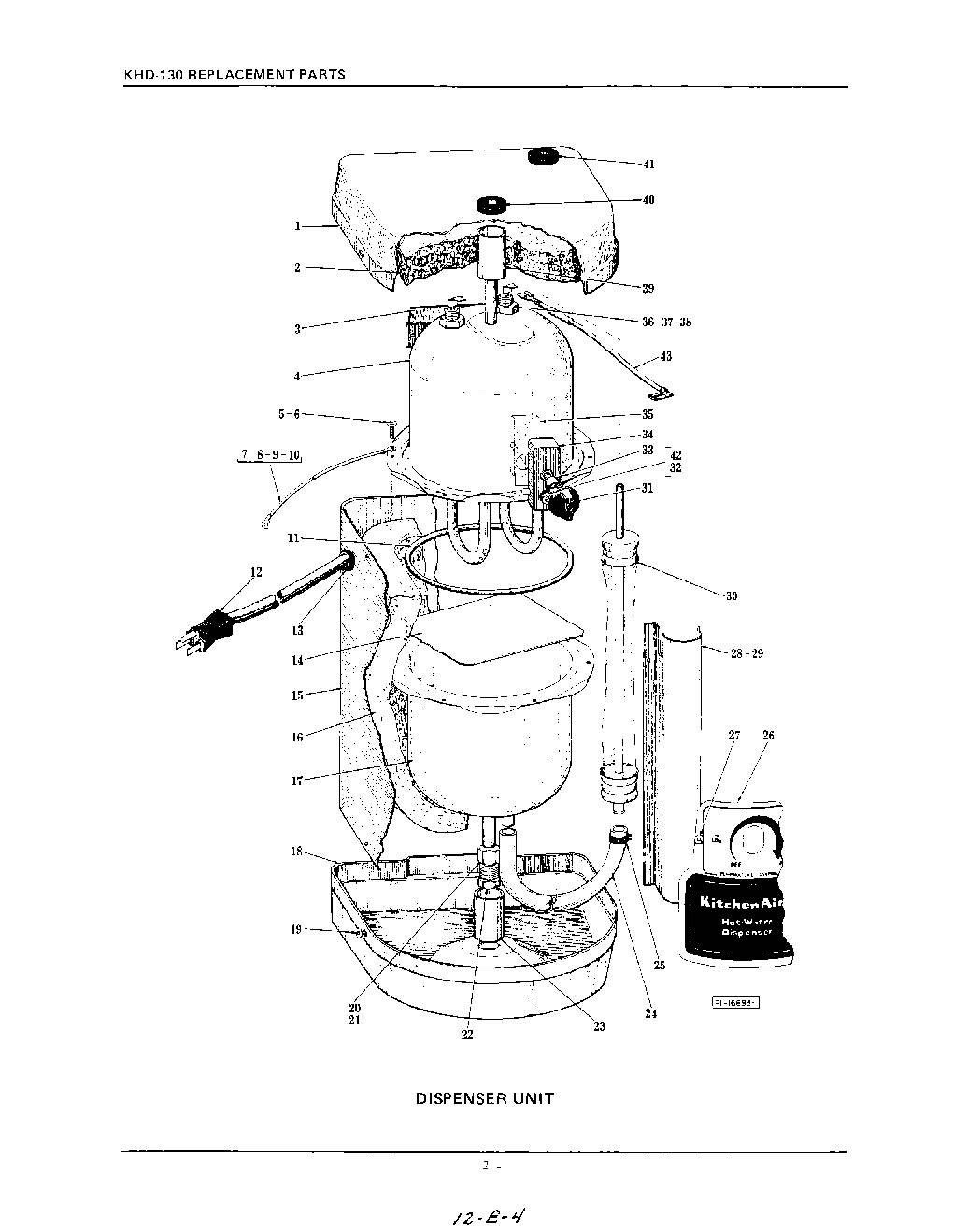

| 1 | Cap - Top |
| 2 | Insulation - Upper |
| 3 | Bracket - Mounting |
| 4 | Upper Tank & Tube Assy |
| 5 | Mach. Screw 8-32 x 3/8 Phil. Pan Hd |
| 7 | Ground Wire Assy |
| 8 | Mach. Screw - No.8-32 x 3/8`` Phil. Truss Hd |
| 11 | ``O`` Ring |
| 12 | Cord & Plug Assy |
| 13 | Strain Relief |
| 14 | Deflector |
| 15 | Shell Cover Assy |
| 16 | Insulation - Tank |
| 17 | Lower Tank Assy |
| 18 | Cap - Bottom |
| 19 | Screw & L.W. Assy. - No.8 x 3/8`` Phil. Truss Hd., Type AB |
| 20 | Nut - Tube Fitting (3/8``) |
| 21 | Sleeve - Tube Fitting (3/8``) |
| 22 | Plug - Drain |
| 24 | Hose - Clear |
| 25 | Clamp - Tube (9/16`` Tube) |
| 26 | Cover - Thermostat |
| 28 | Cover - Aspirator |
| 29 | Self-Tapping Screw - No.6-32 x 3/8`` Phil. Pan Hd., Type 23 |
| 30 | Displacer Assy |
| 31 | Knob - Thermostat |
| 32 | Mach. Nut - No.8-32 Hex |
| 33 | Bushing - Thermostat |
| 34 | Thermostat |
| 35 | Dust Cover - Thermostat |
| 36 | Heater Element (Incls. items No.37 & 38) |
| 37 | ``O`` Ring |
| 38 | Nut - Heater Element |
| 39 | Spacer |
| 40 | Bushing - Water Outlet Tube |
| 41 | Bushing - Water Inlet Tube |
| 42 | Lock Washer - No.8 Ext. Shakeproof (Use with Left Screw) |
| 43 | Thermal Fuse Assy |
