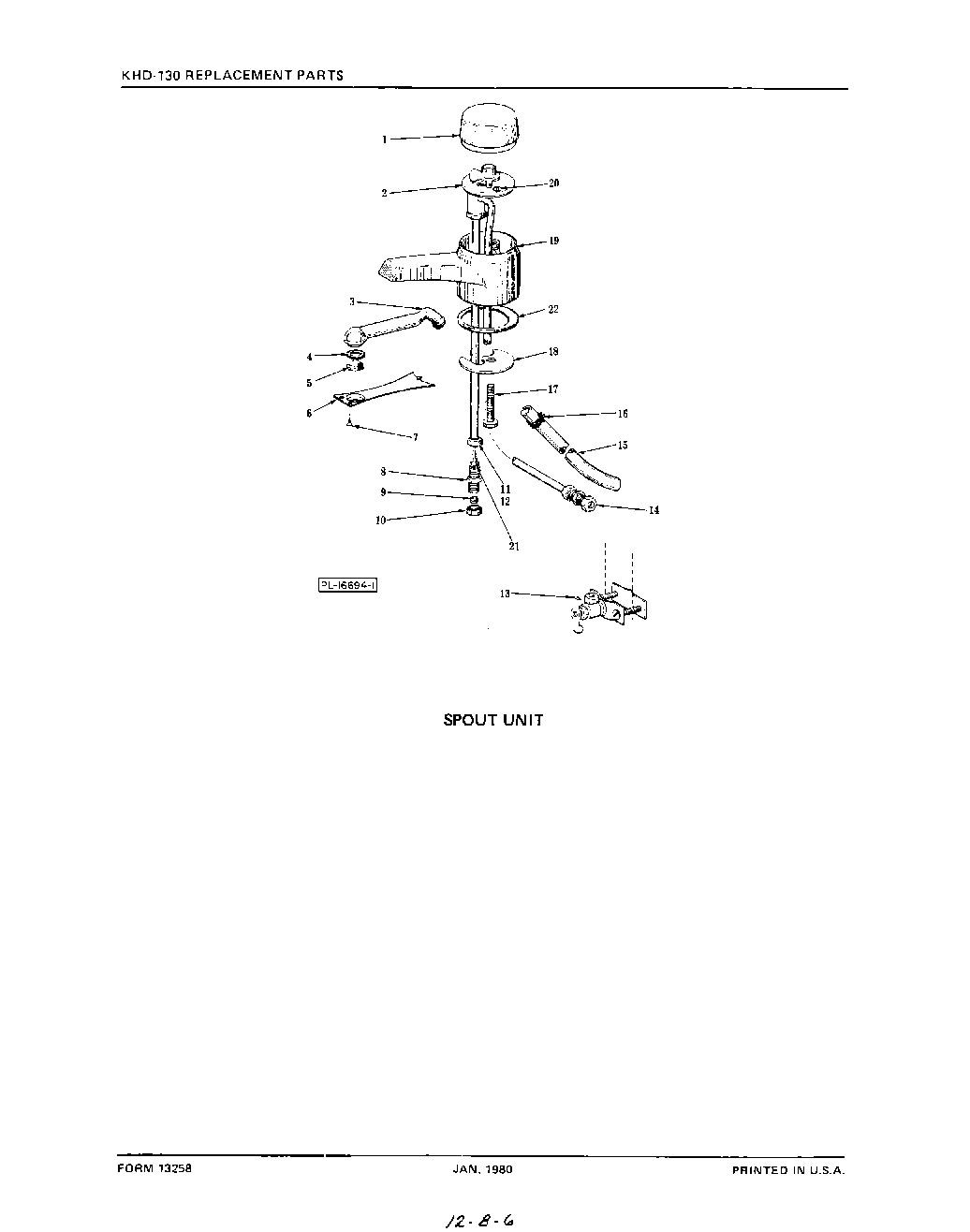

KHD130 03 – SECTION

Products

Position	Product
1	Cap Assy
2	Mechanical Valve Assy. (Incls. items No.8 & 21)
3	Tube – Spout
4	Washer – Spout
5	Screen – Flow
6	Plate – Spout
7	Self-Tapping Screw – No.4-20 x 5/16“ Phil. Flat Undercut Hd. “Plastite“
11	Sleeve – 1/4“ Compression Union
12	Nut – 1/4“ Compression Union
13	Self-Drilling Valve Assy
14	Union – Compression (1/4“ Tube to 1/4“ Tube)
15	Tubing (3/8“ I.D.)
16	Clamp (1/2“ O.D. Tubing)
17	Mach. Screw – 1/4“-20 x 1-3/4“ Fil. Hd
18	Plate – Sink Mounting
19	Spout Body & Insert Assy
20	Self-Tapping Screw – No.6 x 3/8“ Phil. Flat Hd., Type FZ
21	Screen – Inlet
22	Gasket
