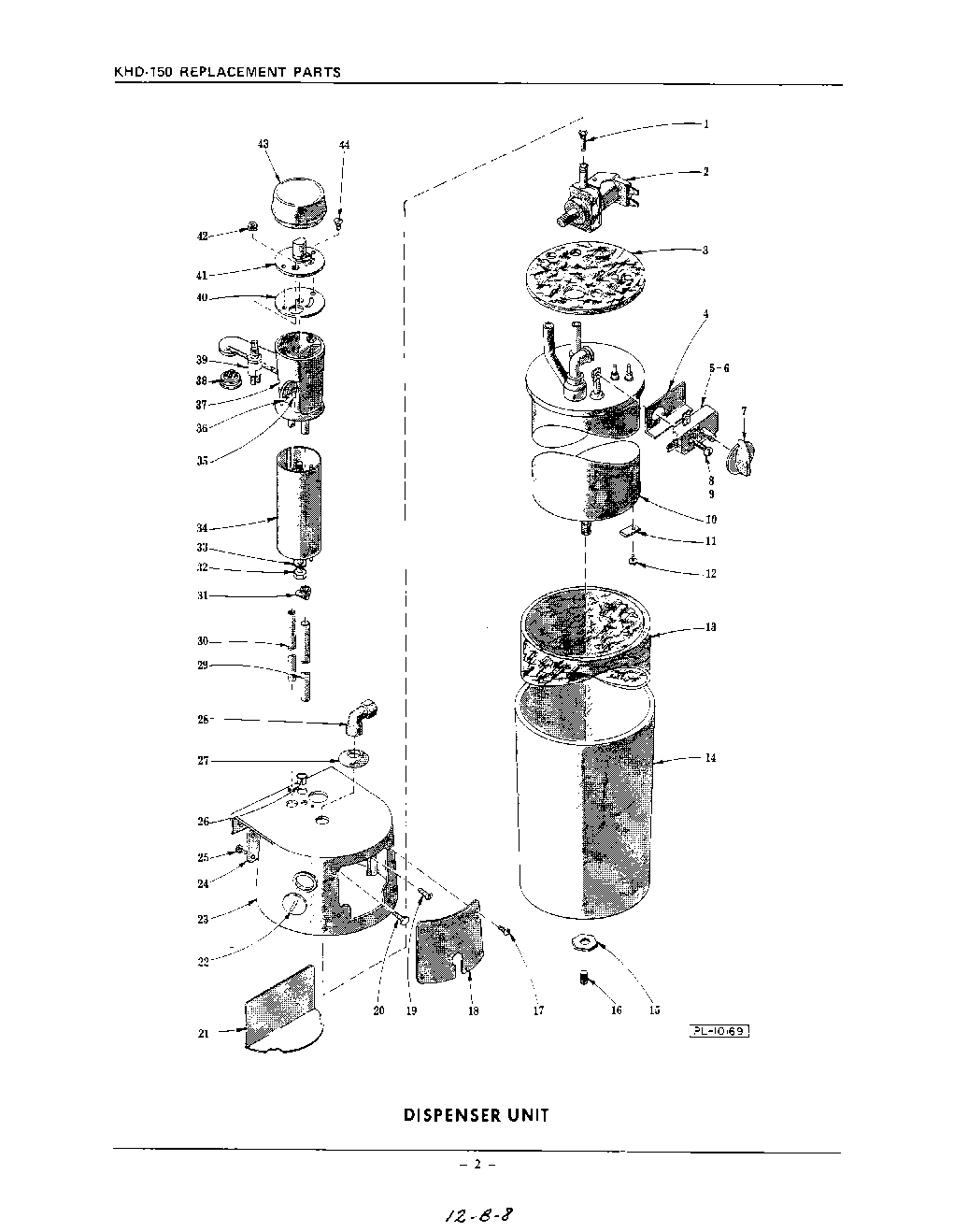

KHD150 02 – SECTION

Products

Position	Product
1	Valve Screen
2	Valve – Solenoid (120 V.) (Incls. item No.1)
3	WPL A203734
4	Enclosure – Thermostat
5	Thermostat
6	WPL B111796
7	Knob – Th
8	Mach. Screw – No.8-32 x 3/4“ Rd. Hd.
9	Lock Washer – No.8 Ext. Shakeproof (Use with Left Screw)
10	Tank Body & Elbow Assy.
11	WPL A203667
12	WPL SC746
13	Insulation – Tank Body
14	Bottom Enclosure & Label Assy. (Give ML & Serial Number)
15	Special Nut – 1/4“-18 “Palnut“
16	Plug – 1/8“ Sq. Hd. Pipe
18	Front Cover & Label Assy.
19	Mach. Screw – No.8-32 x 3/8“ Pan Hd.
20	Screw – Machine Grounding
21	Barrier – Wiring Compartment
22	Plug (1/2“)
23	Top Enclosure & Label Assy. (Give ML & Serial Number)
24	Cover – Rear (Access)
25	Self-Tapping Screw – No.6-32 x 1/4“ Pan Hd., Type 1
26	Bushing – 1/2“ Anti-Short
27	Bushing – Valve
28	Elbow – 90o (1/4“ Female Pipe x 1/4“ Tube)
29	Tube – Flexible (3/8“ I.D.)
30	Tube – Flexible (1/4“ I.D.)
31	Clamp – Hose
32	Fin. Bolt – 1/4“-20 x 4-1/2“ Hex Hd.
33	Lock Washer – 1/4“ x .107“ x .047“
34	Riser Tube Assy.
35	WPL BF222
36	WPL SD1423
37	WPL C110953
38	WPL A203645
39	WPL A203653
40	WPL A203643
41	WPL C203673
42	WPL A202506
43	WPL C2036582
44	WPL SC1320
