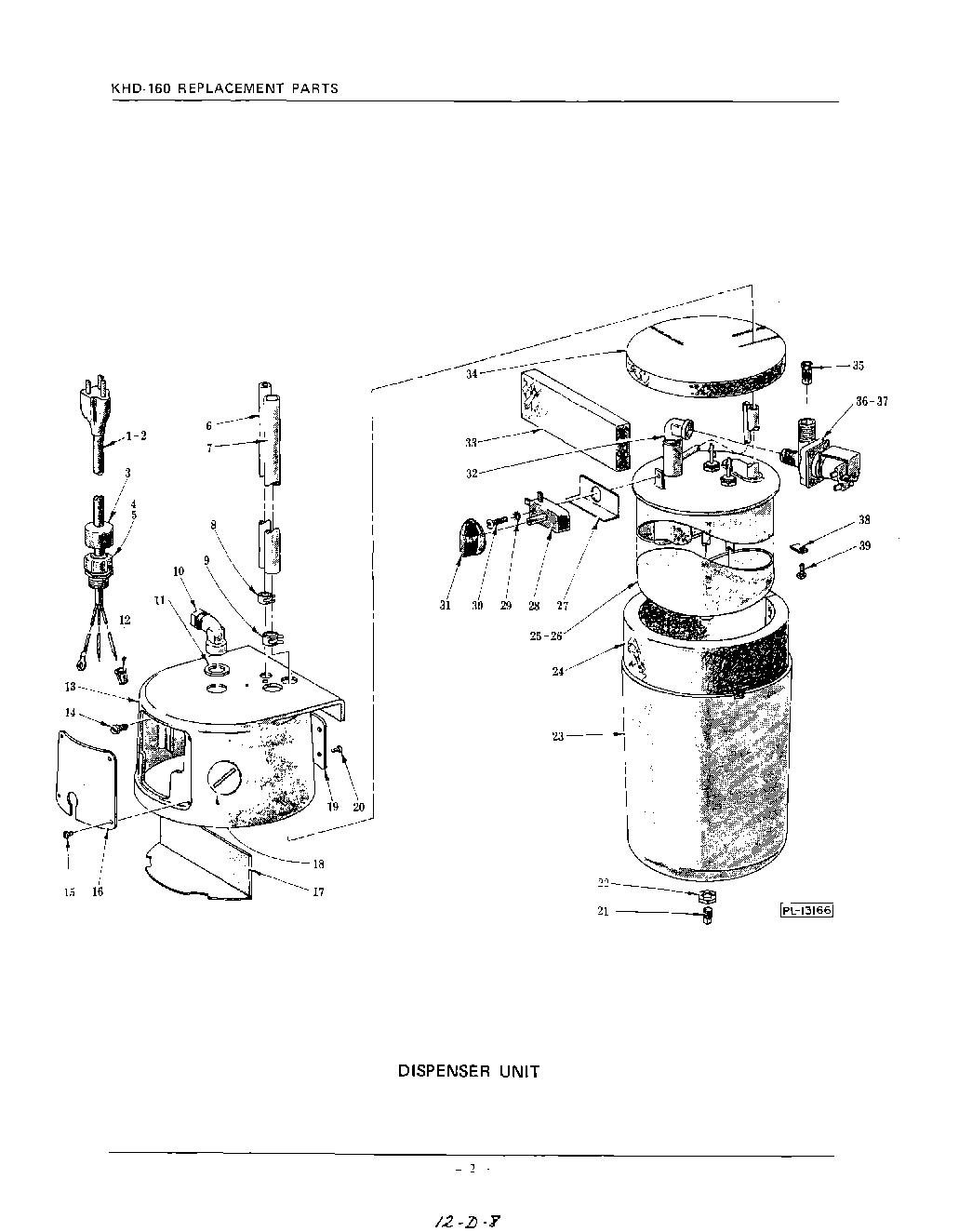

KHD160 02 – SECTION

Products

Position	Product
1	Cord & Plug Assy. (115 V., 60 Hz.)
2	Cord & Plug (220-240 V.)
3	Boot – Protective
4	Connector – Strain Relief (Use with item No.1)
5	Connector – Strain Relief (Use with item No.2)
6	Tubing (1/4“ I.D.)
7	Tubing (3/8“ I.D.)
8	Clamp (3/8“ O.D. Tubing)
9	Clamp (1/2“ O.D. Tubing)
10	Elbow – 90o (1/4“ Female Pipe x 1/4“ Tube)
11	Bushing – Valve
12	Wire Nut (No.72B Ideal)
13	Enclosure – Top
14	Screw – Machine Grounding
15	Self-Tapping Screw – No.6-32 x 3/8“ Phil. Pan Hd., Type 1
16	Front Cover & Label Assy.
17	Barrier – Wiring Compartment
18	Plug – 1/2“ -14 x 1/4“ Pipe (Flush, Slotted Hd.)
19	Cover – Rear (Access)
20	Self-Tapping Screw – No.6-32 x 1/4“ Pan Hd., Type 1
21	Plug – 1/8“ Sq. Hd. Pipe
22	Special Nut – 1/4“-18 “Palnut“
23	Bottom Enclosure & Label Assy. (Give ML & Serial Number)
24	Insulation – Tank Body
25	Tank Body & Elbow Assy. (Incls. item No.32) (115 V.)
26	Tank Body & Elbow Assy. (Incls. item No.32) (220-240 V.)
27	Enclosure – Thermostat
28	Thermostat
29	Lock Washer – No.8 Ext. Shakeproof (Use with Left Screw)
30	Mach. Screw – No.8-32 x 3/4“ Rd. Hd.
31	Knob – Th
32	WPL FP156
33	WPL B111796
34	WPL A203734
35	WPL C1152133
36	WPL C1152131
37	WPL C1152132
38	WPL A203667
39	WPL SC746
