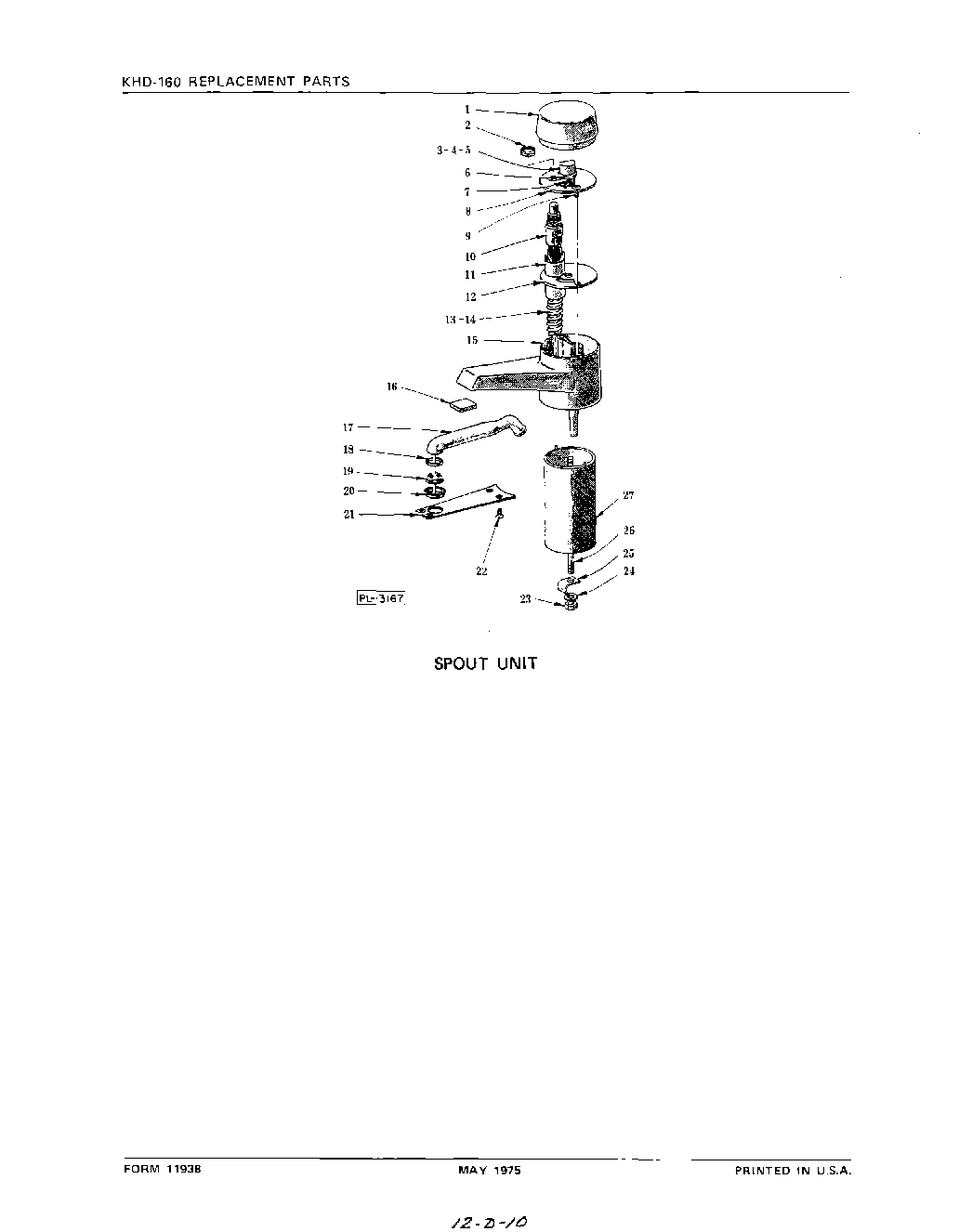

KHD160 03 – SECTION

Products

Position	Product
1	Cap Assy
2	Nut – 15/32“-32 Hex
3	Shaft (Switch Plate)
4	Washer
5	Mach. Screw – No.8-32 x 3/8“ Pan Hd.
6	Stop – Spring (Switch Plate)
7	Spring – Switch Plate
8	Plate – Switch Mounting
9	Self-Tapping Screw – No.6 x 3/8“ Phil. Flat Hd., Type FZ
10	Switch Assy. (Incls. items No.2, 11, 13 & 14)
11	Switch Enclosure Assy.
12	Gasket – Cover
13	Conduit – 3/8“ x 5-1/2“ Lg. Flex.
14	Insulator – Bushing
15	Spout & Cushion Assy. (Incls. item No.16)
16	Cushion – Spout
17	Tube – Spout
18	Seal – Tube
19	Screen – Flow
20	Ferrule – Tube
21	Plate – Spout
22	Self-Tapping Screw – No.4 x 1/4“ Phil. Flat Undercut Hd., Type FZ
23	Full Nut 1/4-20 Hex Fin
24	Lock Washer – 1/4“ x .107“ x .047“
25	Clip – Conduit
26	Stud – Spout Mounting
27	Spout Riser Assy.
