KHEV01RSS0 02 – DRUM, REAR BULKHEAD AND MOTOR PARTS

KHEV01RSS0 02 – DRUM, REAR BULKHEAD AND MOTOR PARTS

Written by

in

KHEV01RSS0 02 – DRUM, REAR BULKHEAD AND MOTOR PARTS

Products

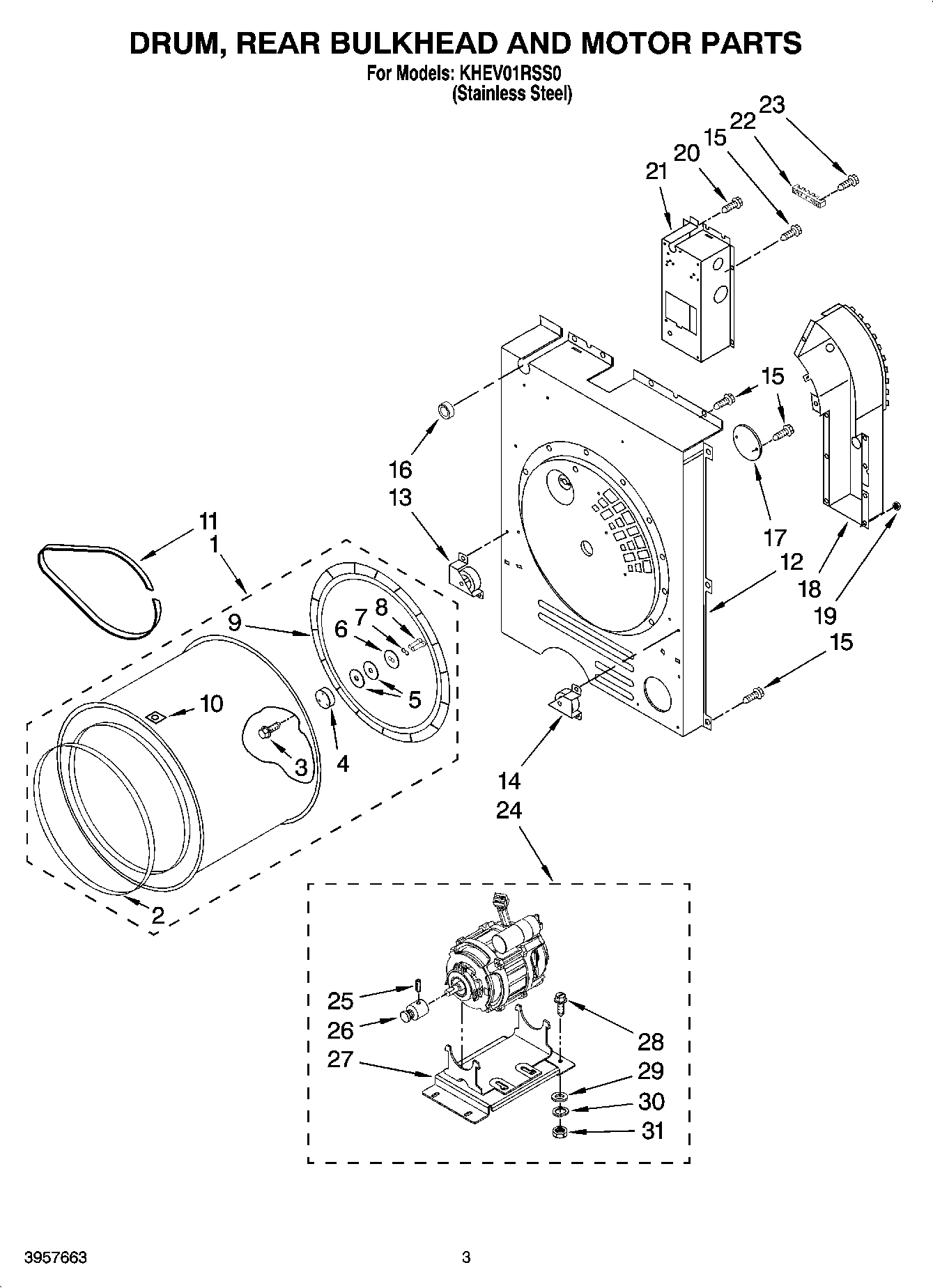

PositionProduct
1Drum Assembly
2Seal, Drum Front (Includes Illus. 9)
3Screw, W/Patch
4Shaft, Hub
5Pad, Friction Inner (2)
6Washer, Back-Up
7Washer, Lock
8Screw, Black (Socket Head)
9Seal, Drum Rear (Includes Illus. 2)
10Magnet, Drum Rotation (Not Serviceable)
11Belt, Drum
12Panel, Rear Bulkhead/Support
13Roller Assembly (Left Rear)
14Roller Assembly (Right Rear)
15SCREW
16Grommet, Large
17Cover, Rear Access
18Duct, Heater
19Nut, Keps
20Screw, Ground
21Box, Electrical
22WP3397659 Whirlpool Terminal Block
23SCREW
24Motor Assembly
25Screw, Set
26Pulley
27Base, Motor
28BOLT
29Washer, Flat
30Washer, Lock
31Nut, Hex
