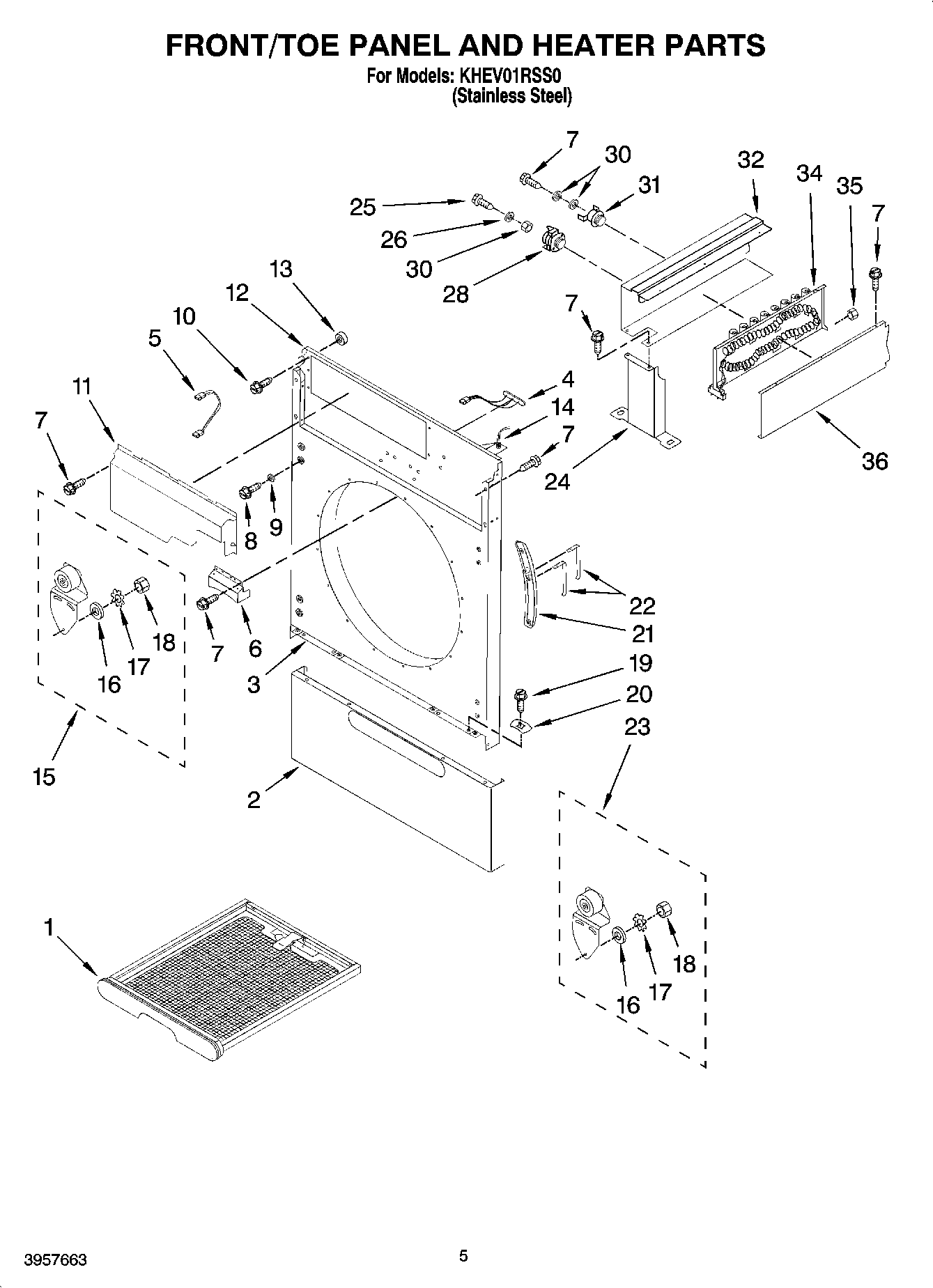

KHEV01RSS0 03 – FRONT/TOE PANEL AND HEATER PARTS

KHEV01RSS0 03 – FRONT/TOE PANEL AND HEATER PARTS

Written by

in

KHEV01RSS0 03 – FRONT/TOE PANEL AND HEATER PARTS

Products

PositionProduct
1Lint Drawer Assembly
2Toe Panel
3Panel, Front
4Light, LED
5Harness, Light
6Enclosure, Light (Top)
7SCREW
8Screw, Torx
9Magnet, Door Closure
10Screw, Ground
11Cover, Electronic Box
12Tape, Sponge
13Grommet, Large
14Switch, Drum Rotation
15Roller Assembly (Left/Front)
16Washer, Flat
17Washer, Split/Lock
18Nut, Hex
19SCREW
20Nut, Retainer (Tinnerman)
21Pad, Sensor Strips
22Electrode, Sensor
23Roller Assembly (Right/Front)
24Bracket, Heater Box
25Screw, Phillips
26Washer, Star
28Thermostat, Hi-Limit
30Washer, Flat
31Thermal Cut-Off (TCO)
32Heater Box (Top & Left Side)
34WP3387747 Whirlpool Dryer Heating Element
35Nut, Keps
36Heater Box (Right Side)
