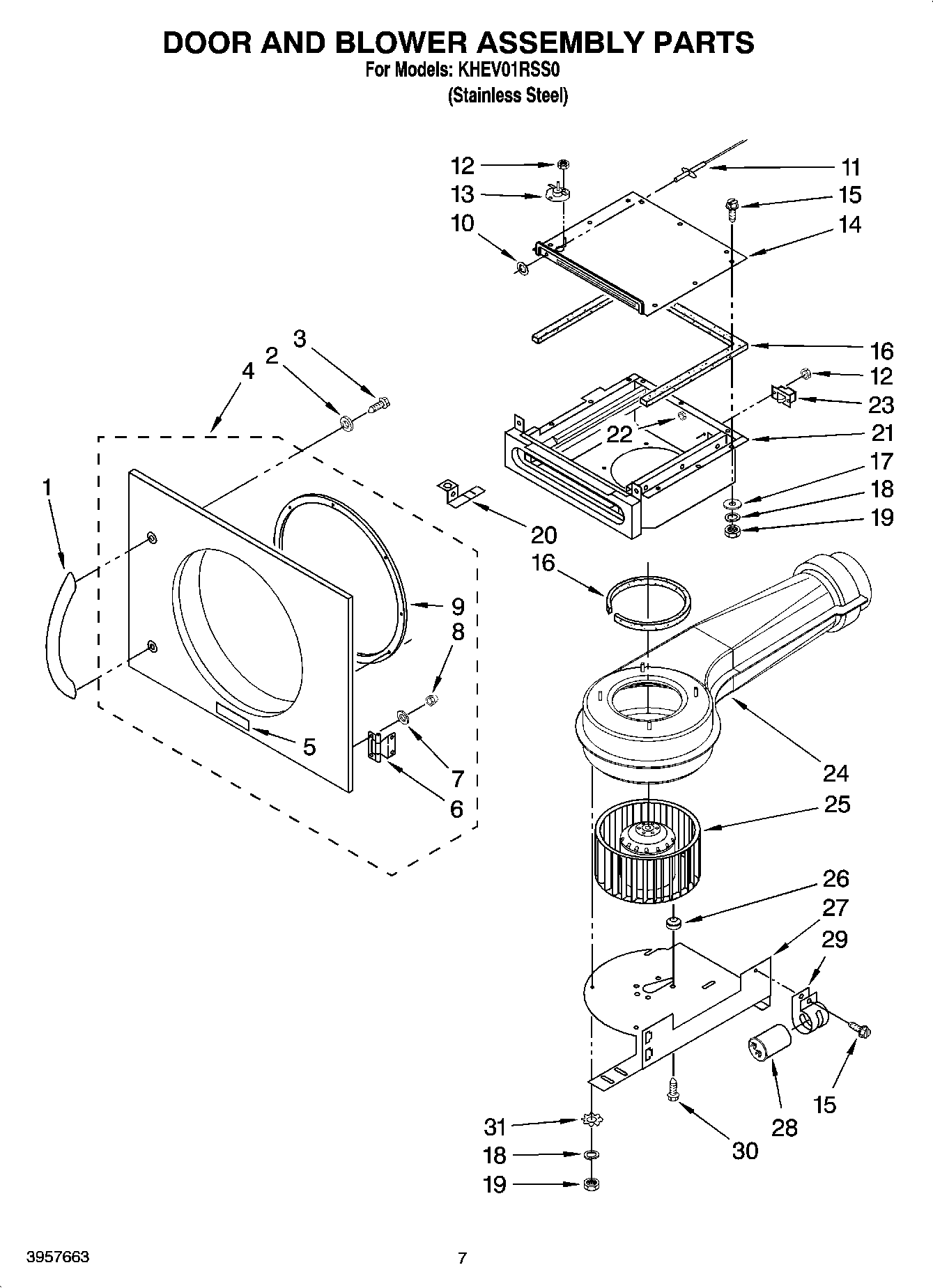

KHEV01RSS0 04 – DOOR AND BLOWER ASSEMBLY PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	Dry Rack
	DRY RACK
1	Handle, Door
2	Washer, Nylon
3	Screw, W/Nylon Patch
4	Door Assembly Complete
5	Badge, Kitchen Aid (Not Serviceable)
6	Hinge, Door
7	WASHER
8	Nut, Acorn
9	Seal, Door
10	Fastener, Push-On
11	Harness, Temperature Sensor
12	Nut, Keps
13	Thermostat, Temperature Sensor
14	Top, Lint Box
15	SCREW
16	Tape, Sponge
17	WASHER
18	Washer, Split/Lock
19	Nut, Hex
20	Panel, Control (Includes Bevel)
21	Lint Box Body (Includes Illus. 22)
22	Magnet (Not Serviceable)
23	Switch & Bracket, Lint Drawer
24	Housing, Blower
25	Motor, Blower Assembly
26	GROMMET
27	Plate, Blower Mount
28	CAPACITOR
29	Bracket, Capacitor
30	Bolt, Shoulder
31	Washer, Star
