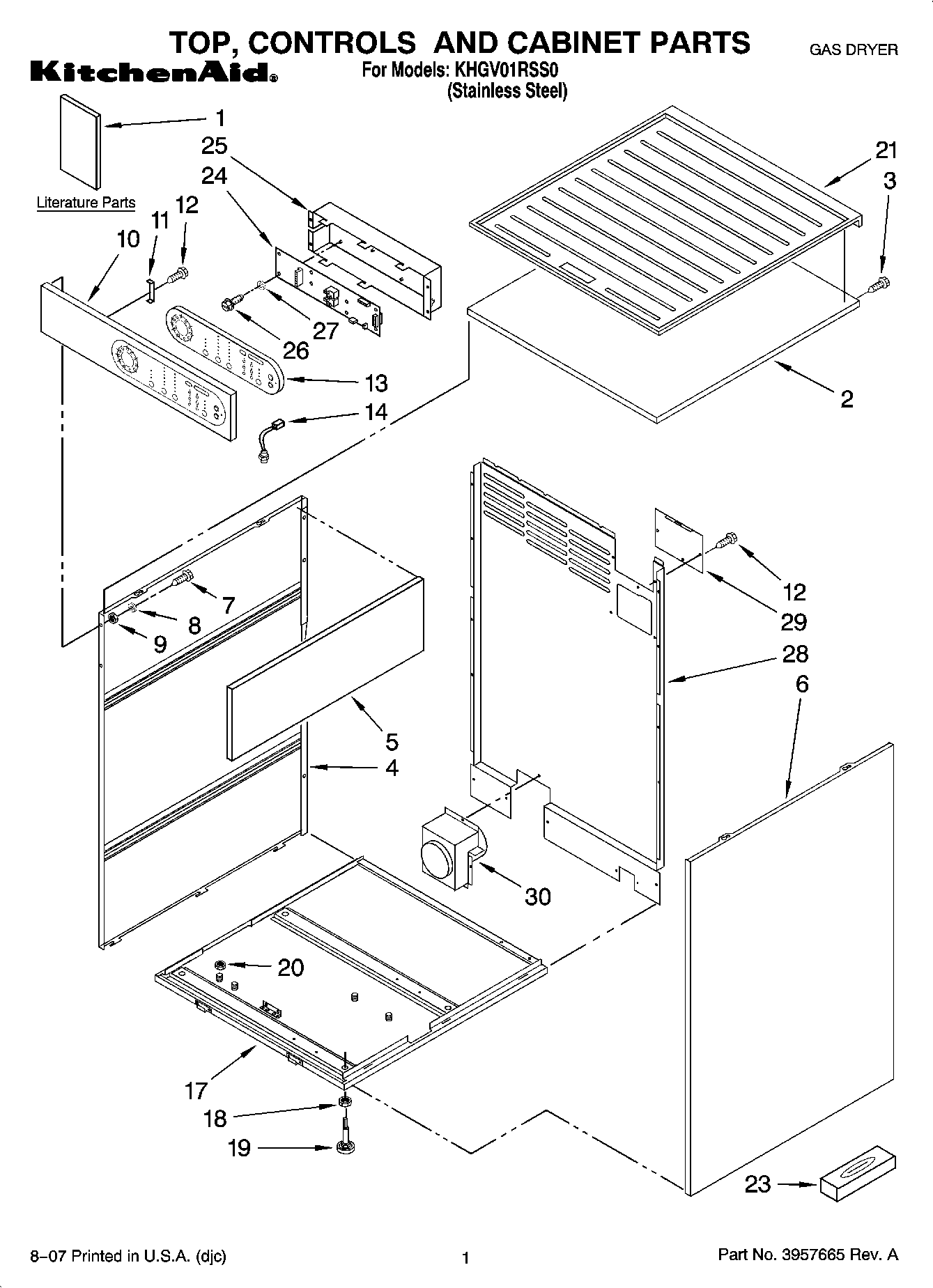

KHGV01RSS0 01 – TOP, CONTROLS AND CABINET PARTS

KHGV01RSS0 01 – TOP, CONTROLS AND CABINET PARTS

Written by

in

KHGV01RSS0 01 – TOP, CONTROLS AND CABINET PARTS

Products

PositionProduct
1Instructions, Installation (Decorative Mat)
1Tech Sheet
1Instructions, Installation (Dryer)
1Guide, Use & Care
2Top Assembly
3SCREW
4Side Panel, (LH) (Includes Illus. 5)
5Insulation
6Side Panel, (RH) (Includes Illus. 5)
7Screw, Phillips
8Washer, Star
9Locknut, Nylon
10Panel, Control (Includes Bevel)
11Support, Stiffener (Control Panel)
12SCREW
13User Interface
14Switch, Drum Rotation
17Base Assembly
18WP3359452 Whirlpool Nut
19WPW10001130 Whirlpool Leveling Leg
20Nut, Hex
21Mat, Decorative
23ACCESSORIES, WIPES, STAINLESS STEEL
24Control Board
25Front, Electrical Box
26Screw, Phillips
27Washer, Star
28Panel, Rear
29Cover, Terminal
30Outlet, Blower Housing
30Harness, Main Control
30Harness, U/I Control Board
30Harness, Main Power
30Following Parts Not Illustrated
