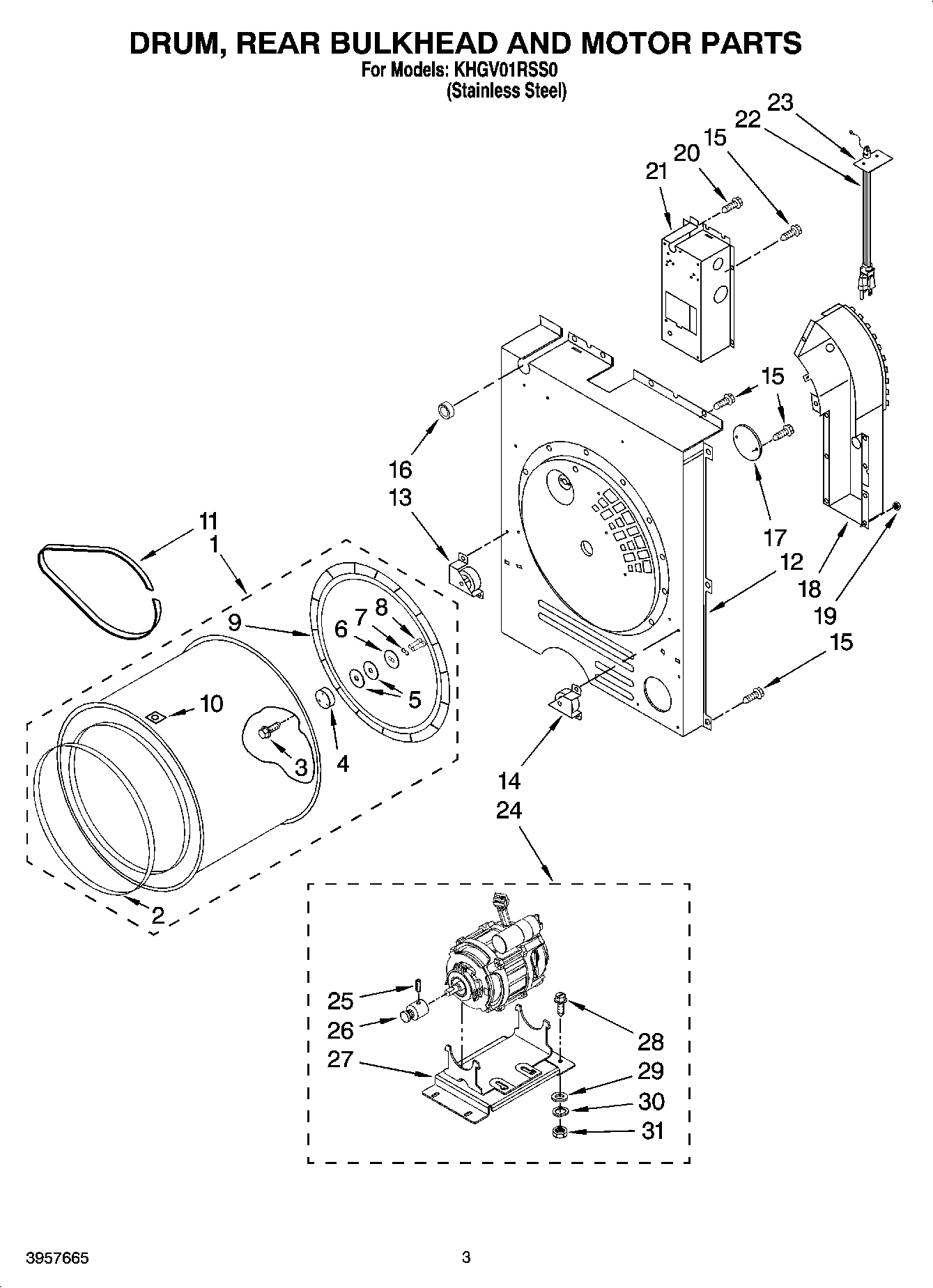

KHGV01RSS0 02 – DRUM, REAR BULKHEAD AND MOTOR PARTS

Products

Position	Product
1	Drum Assembly
2	Seal, Drum Front (Includes Illus. 9)
3	Screw, W/Patch
4	Shaft, Hub
5	Pad, Friction Inner (2)
6	Washer, Back-Up
7	Washer, Lock
8	Screw, Black (Socket Head)
9	Seal, Drum Rear (Includes Illus. 2)
10	Magnet, Drum Rotation (Not Serviceable)
11	Belt, Drum
12	Panel, Rear Bulkhead/Support
13	Roller Assembly (Left Rear)
14	Roller Assembly (Right Rear)
15	SCREW
16	Grommet, Large
17	Cover, Rear Access
18	Duct, Heater
19	Nut, Keps
20	Screw, Ground
21	Box, Electrical
22	W11222083 Whirlpool Power Cord
23	Bracket, Power Cord
24	Motor Assembly
25	Screw, Set
26	Pulley
27	Base, Motor
28	BOLT
29	Washer, Flat
30	Washer, Lock
31	Nut, Hex
