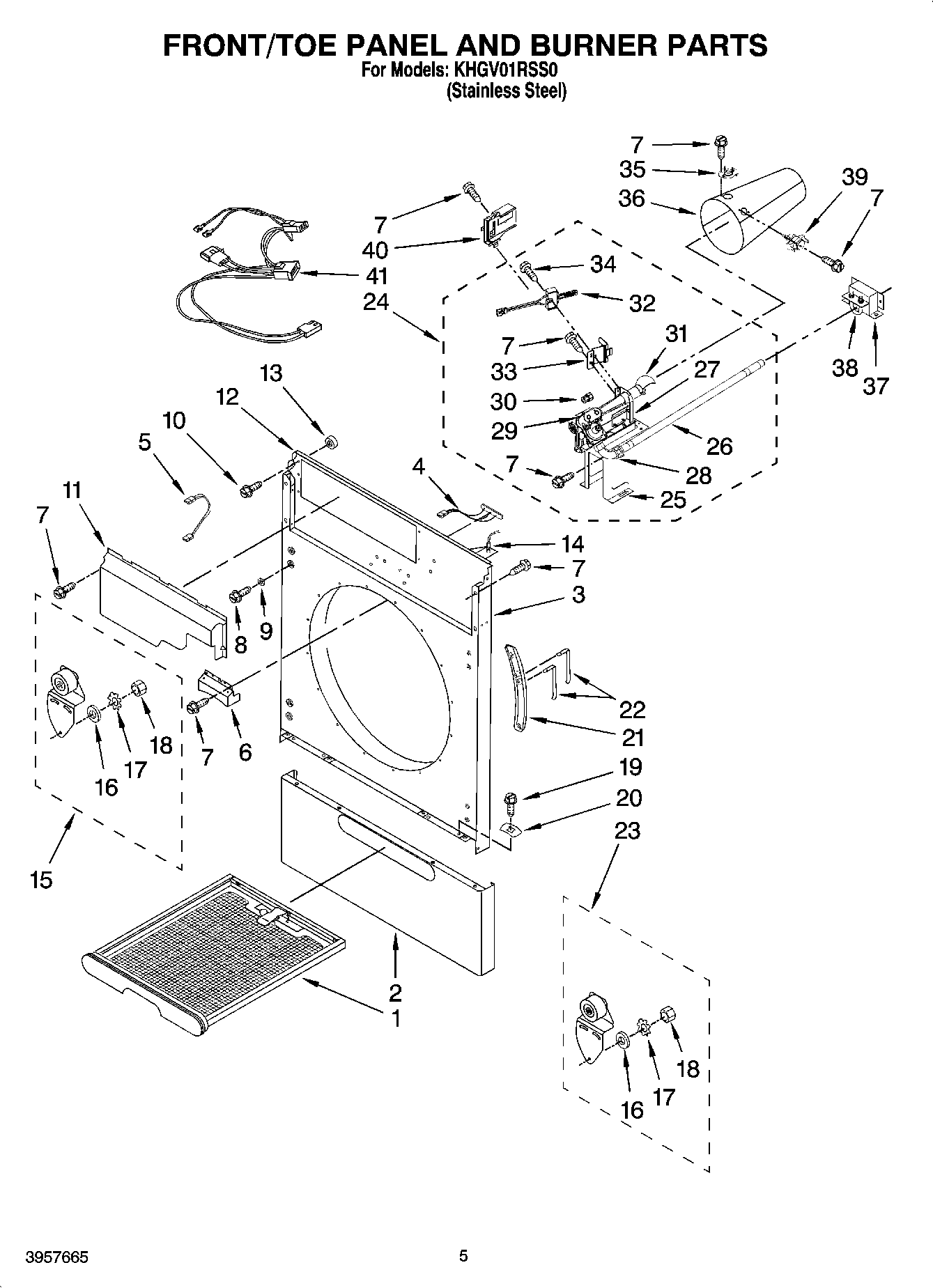

KHGV01RSS0 03 – FRONT/TOE PANEL AND BURNER PARTS

Products

Position	Product
1	Lint Drawer Assembly
2	Toe Panel
3	Panel, Front
4	Light, LED
5	Harness, Light
6	Enclosure, Light (Top)
7	SCREW
8	Screw, Torx
9	Magnet, Door Closure
10	Screw, Ground
11	Cover, Electronic Box
12	Tape, Sponge
13	Grommet, Large
14	Switch, Drum Rotation
15	Roller Assembly (Left/Front)
16	Washer, Flat
17	Washer, Split/Lock
18	Nut, Hex
19	SCREW
20	Nut, Retainer (Tinnerman)
21	Pad, Sensor Strips
22	Electrode, Sensor
23	Roller Assembly (Right/Front)
24	Burner Assembly (Service)
25	Bracket, Support
26	Pipe, Gas
27	Base, Burner
28	Elbow Assembly (Brass)
29	279923 Whirlpool Gas Valve
30	WP15418 Whirlpool Gas Orifice
31	Tube, Burner
32	IGNITOR
33	Bracket, Ignitor
34	WPW10366705 Whirlpool Screw
35	Thermal Cut-off
36	Funnel, Burner
37	Bracket, Gas Pipe
38	U-Bolt (w/Nuts)
39	Thermostat
40	Sensor, Radiant
41	Harness, Burner
