KHGV01RSS0 04 – DOOR AND BLOWER ASSEMBLY PARTS, OPTIONAL PARTS (NOT INCLUDED)

KHGV01RSS0 04 – DOOR AND BLOWER ASSEMBLY PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

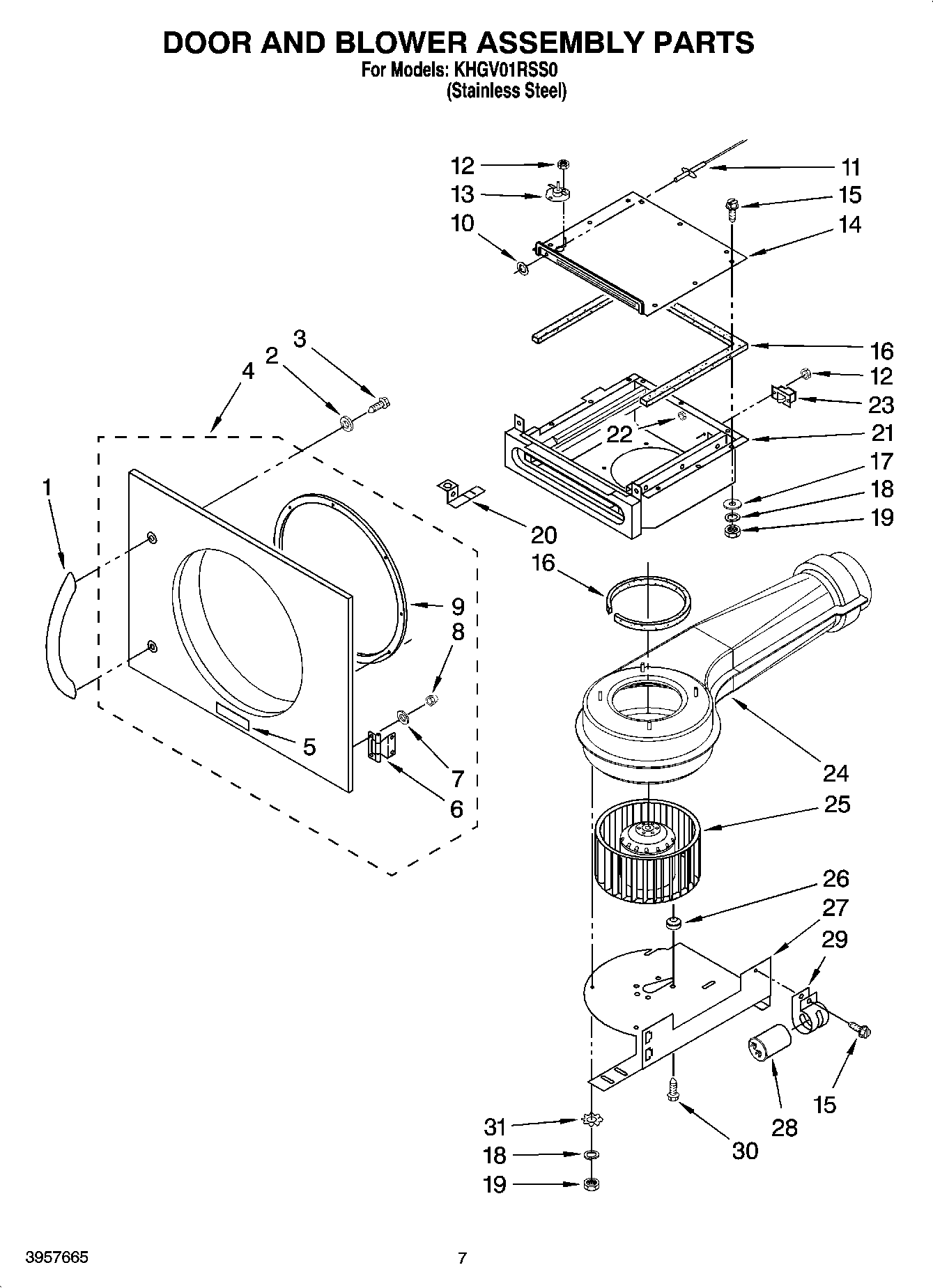

KHGV01RSS0 04 – DOOR AND BLOWER ASSEMBLY PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
DRY RACK
Dry Rack
1Handle, Door
2Washer, Nylon
3Screw, W/Nylon Patch
4Door Assembly Complete
5Badge, Kitchen Aid (Not Serviceable)
6Hinge, Door
7WASHER
8Nut, Acorn
9Seal, Door
10Fastener, Push-On
11Harness, Temperature Sensor
12Nut, Keps
13Thermostat, Temperature Sensor
14Top, Lint Box
15SCREW
16Tape, Sponge
17WASHER
18Washer, Split/Lock
19Nut, Hex
20Panel, Control (Includes Bevel)
21Lint Box Body (Includes Illus. 22)
22Magnet (Not Serviceable)
23Switch & Bracket, Lint Drawer
24Housing, Blower
25Motor, Blower Assembly
26GROMMET
27Plate, Blower Mount
28CAPACITOR
29Bracket, Capacitor
30Bolt, Shoulder
31Washer, Star
