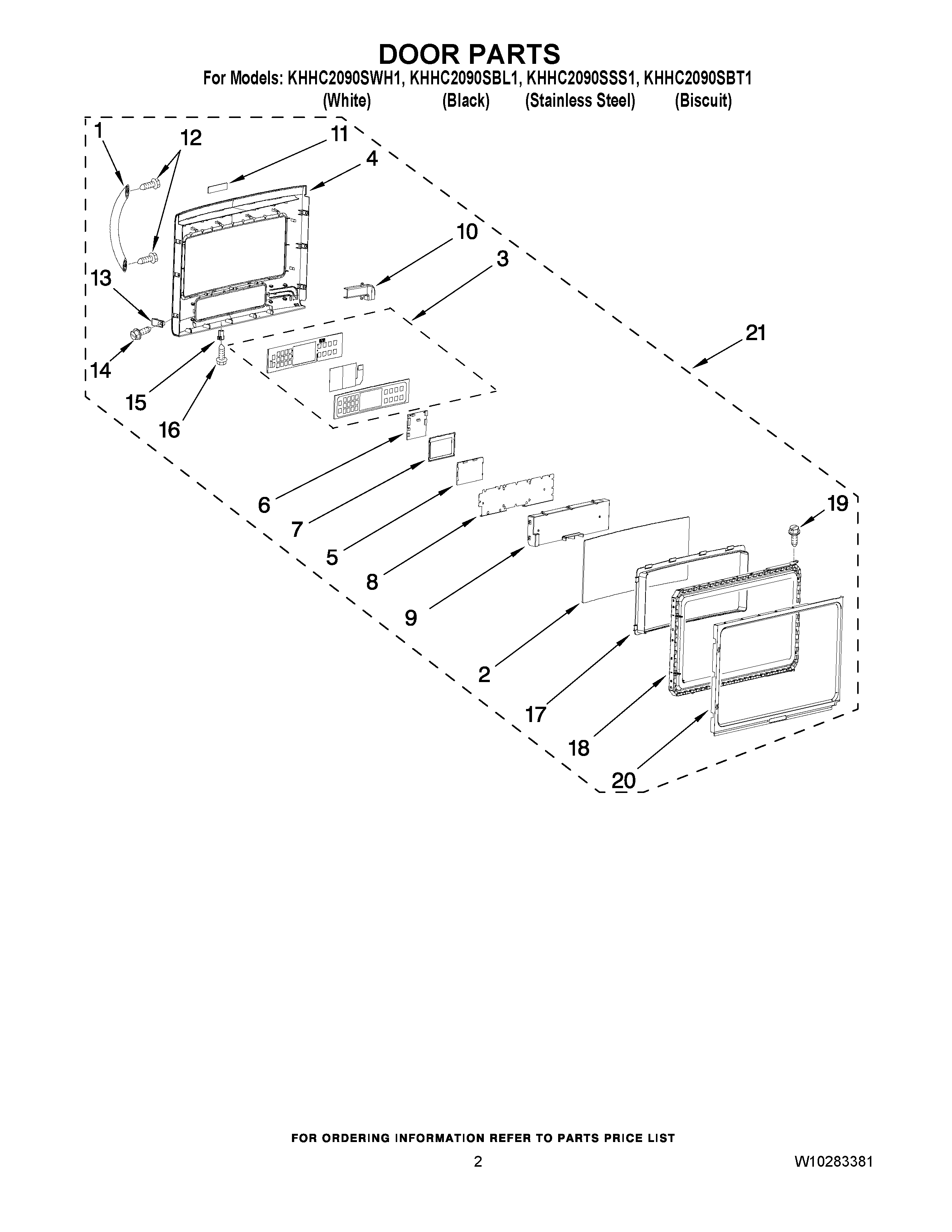

KHHC2090SBL1 02 – DOOR PARTS

Products

Position	Product
1	Handle (White)
1	Handle (Stainless Steel)
1	Handle (Biscuit)
1	W10110267 Whirlpool Microwave Door Handle
2	WP8206528 Whirlpool Microwave Door Glass
3	WPW10116267 Whirlpool Microwave Electronic Control Board
4	Outer Door Frame (White)
4	Outer Door Frame (Biscuit)
4	Outer Door Frame (Stainless Steel)
4	Outer Door Frame (Black)
5	LCD Frame
6	BOARD, USER (INTERFACE)
7	LCD Module
8	Cntrl Panel Plate
9	Cntrl Panel Cover
10	Cable Cover, Door
11	WPW10243392 Whirlpool Dishwasher Nameplate
11	WPW10243393 Whirlpool Dishwasher Nameplate
11	Logo (Biscuit)
11	Logo (Stainless Steel)
12	W10815455 Whirlpool Screw
13	8206525 Whirlpool Microwave Spacer
13	Spacer, Side (6) (White)
13	Spacer, Side (6) (Black)
13	Spacer, Side (6) (Biscuit)
15	Spacer, Bottom (2)
16	8206179 Whirlpool Microwave Screw
17	COVER, CHOKE
18	Door Plate Assy
19	W10565483 Whirlpool Microwave Screw
20	Dr Innr Frm Assy
21	DOOR, COMPLETE (BISCUIT)
21	DOOR, COMPLETE (STAINLESS)
21	DOOR, COMPLETE (BLACK)
21	DOOR, COMPLETE (WHITE)
