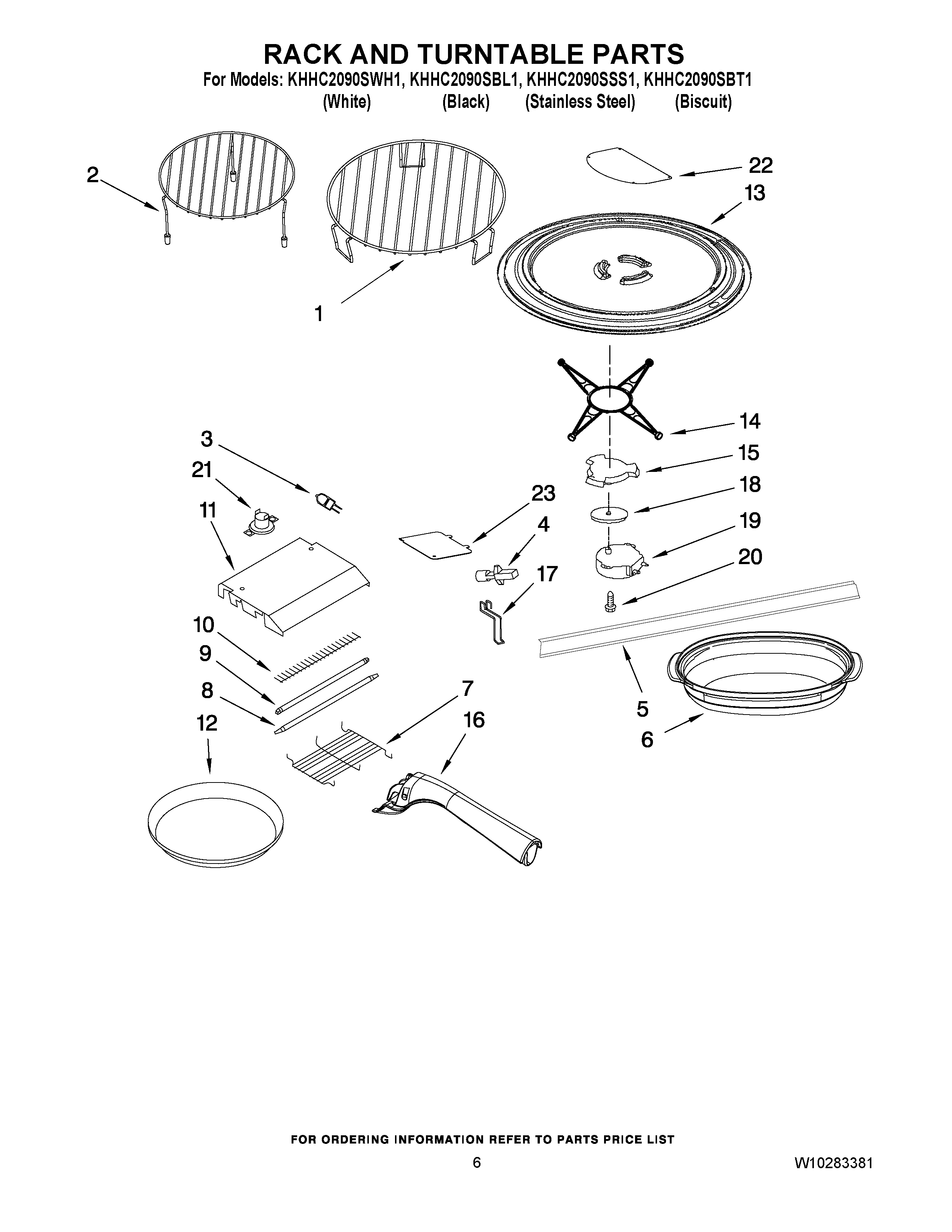

KHHC2090SBL1 05 – RACK AND TURNTABLE PARTS

Products

Position	Product
1	Rack, Convection
2	Rack, Grill
3	8204670 Whirlpool Microwave Halogen Lamp 10W 12V
4	Holder, Lamp
5	8205980 Whirlpool Microwave Air Deflector
6	W10660052 Whirlpool Microwave Steamer Cookware
7	Cover, Protector
8	WPW10510203 Whirlpool Microwave Heater
9	W10510202 Whirlpool Microwave Light Bulb
10	WP8184837 Whirlpool Microwave Element
11	Cover, Insulation (Grill)
12	W10748097 Whirlpool Microwave Crisp Pan
13	8205992 Whirlpool Microwave Cook Tray
14	Ring, Turntable
15	8205994 Whirlpool Microwave Support
16	W10851464 Whirlpool Microwave Handle Panel
17	Clip, Cavity Lamp
18	8184109 Whirlpool Microwave Spacer
19	W11661547 Whirlpool Turntable Motor
20	4393832 Whirlpool Microwave Screw
21	W11553234 Whirlpool Microwave Magnetron Thermostat 145C/105C
22	COVER, INLET
23	Lid, Lamp
