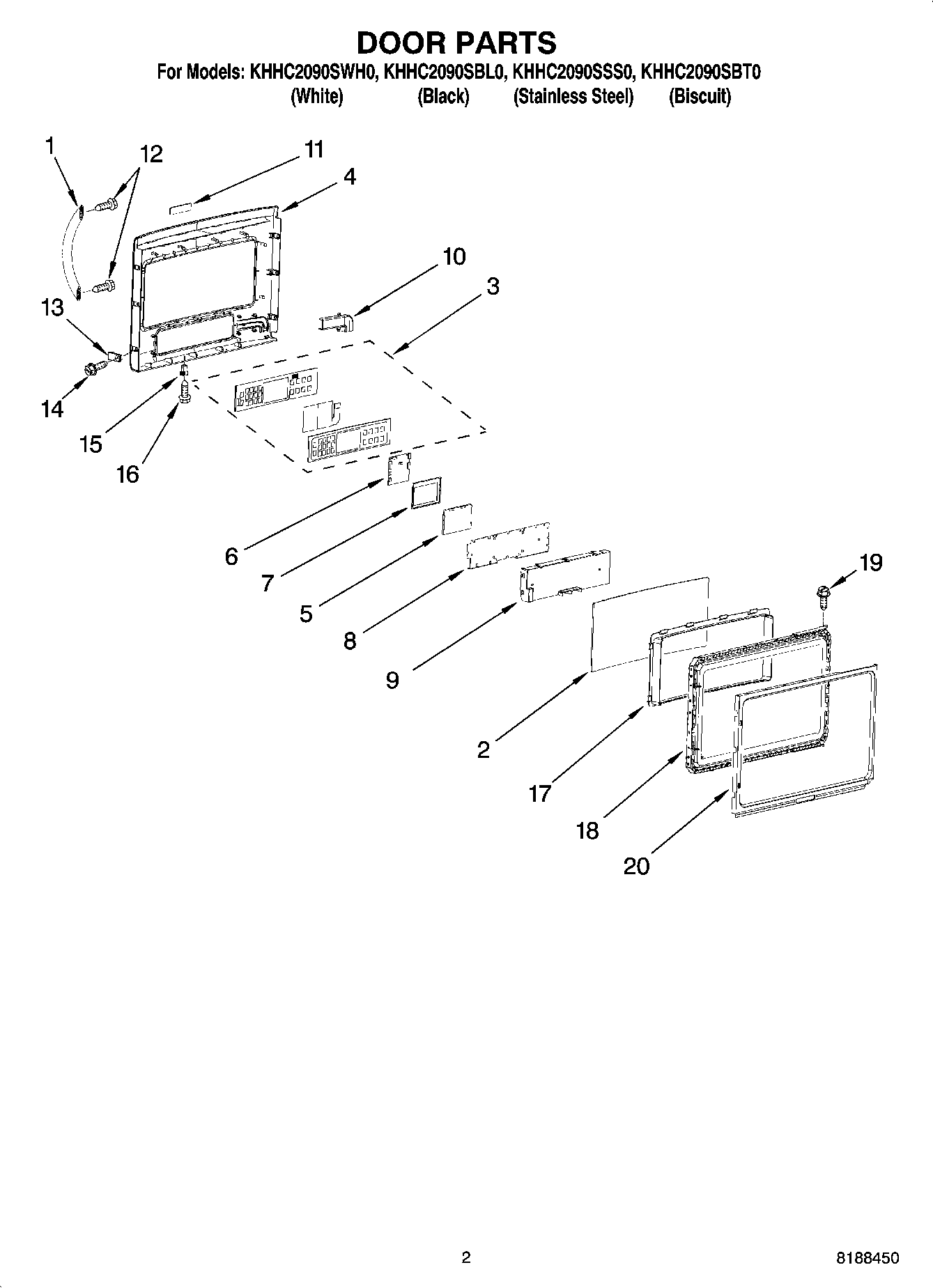

KHHC2090SBT0 02 – DOOR PARTS

KHHC2090SBT0 02 – DOOR PARTS

Written by

in

KHHC2090SBT0 02 – DOOR PARTS

Products

PositionProduct
1W10110267 Whirlpool Microwave Door Handle
1Handle (White)
1W10239614 Whirlpool Microwave Door Handle
1Handle (Biscuit)
2WP8206528 Whirlpool Microwave Door Glass
3WPW10116267 Whirlpool Microwave Electronic Control Board
4Outer Door Frame (White)
4Outer Door Frame (Stainless Steel)
4Outer Door Frame (Biscuit)
4Outer Door Frame (Black)
5LCD Frame
6Board, User (Interface)
7LCD Module
8Cntrl Panel Plate
9Cntrl Panel Cover
10Cable Cover, Door
11WPW10243393 Whirlpool Dishwasher Nameplate
11Logo (Biscuit)
11Logo (Stainless Steel)
11WPW10243392 Whirlpool Dishwasher Nameplate
12W10815455 Whirlpool Screw
13Spacer, Side (6) (White)
138206525 Whirlpool Microwave Spacer
13Spacer, Side (6) (Biscuit)
13Spacer, Side (6) (Black)
15Spacer, Bottom (2)
168206179 Whirlpool Microwave Screw
17Cover, Choke
18Door Plate Assy
19Screw
20Dr Innr Frm Assy
