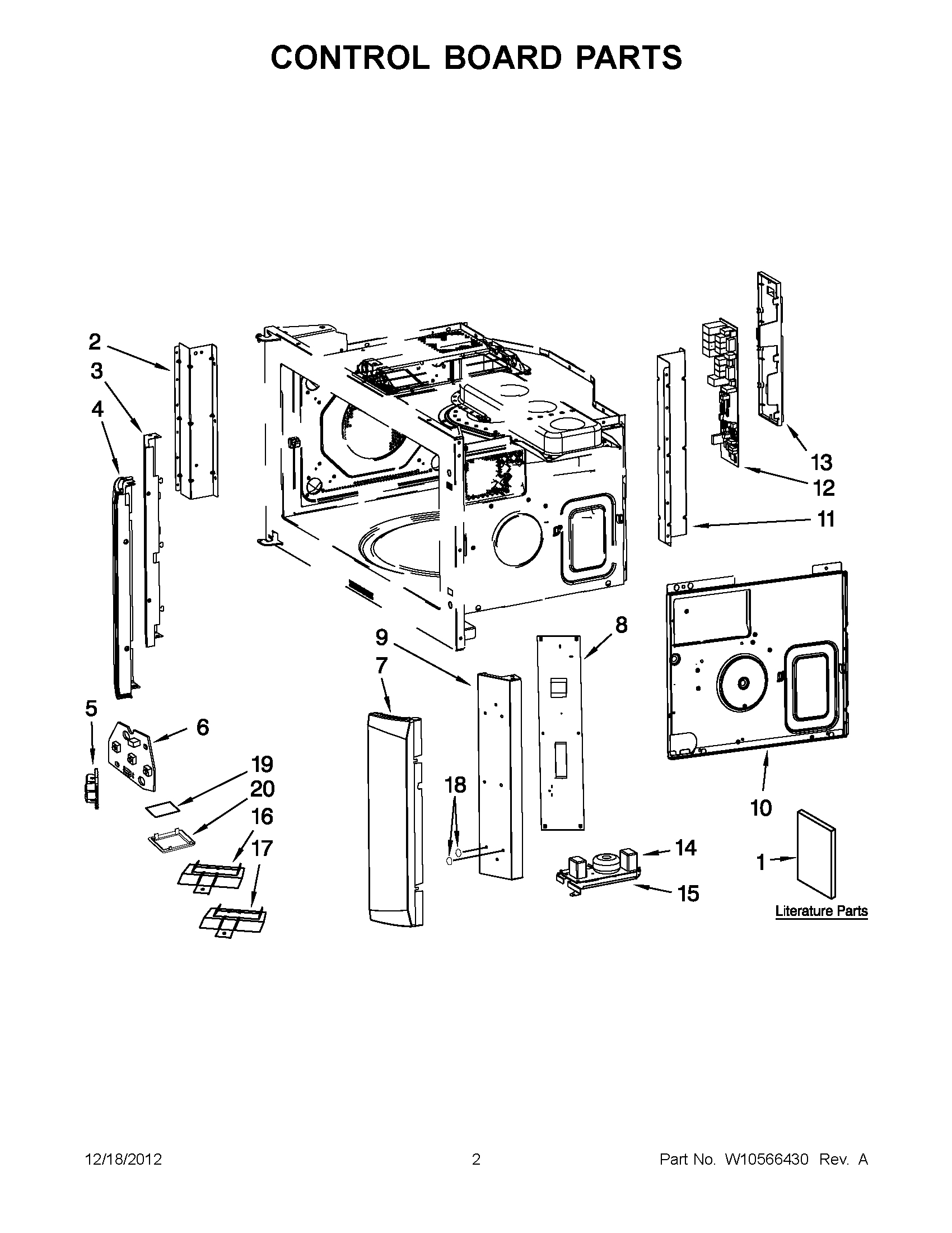

KHHC2090SBT2 01 – CONTROL BOARD PARTS
Written by
in
KHHC2090SBT2 01 – CONTROL BOARD PARTS
Products
Position
Product
1
QUICK REFERENCE
1
TECH SHEET
1
INSTALLATION INSTRUCTIONS
1
USE & CARE GUIDE
2
Support, Cavity (Left)
3
W10527358 Whirlpool Microwave Plate
4
Side Panel, Left (White)
4
Side Panel, Left (Black)
4
Side Panel, Left (Biscuit)
5
Button (White)
5
Button (Black)
5
Button (Biscuit)
6
WPW10403040-includeCORE Whirlpool WPW10403040 Microwave Control Board with Light Switch + Core
7
Side Panel, Right (White)
7
SIDE PANEL, RIGHT (BISCUIT)
7
SIDE PANEL, RIGHT (BLACK)
8
Control Board, (Relay)
9
Plate, Protection (Right)
10
Plate, Chassis
11
Support, Cavity (Right)
12
Board, Relay
13
HOLDER, MICROCOMPUTER
14
AC Line Filter
15
Holder, Filter
16
RESISTOR 50 WATT
17
W10113783 Whirlpool Microwave Resistor
18
Spacer (6)
19
Glass, Lamp
20
Frame, Glass
←
