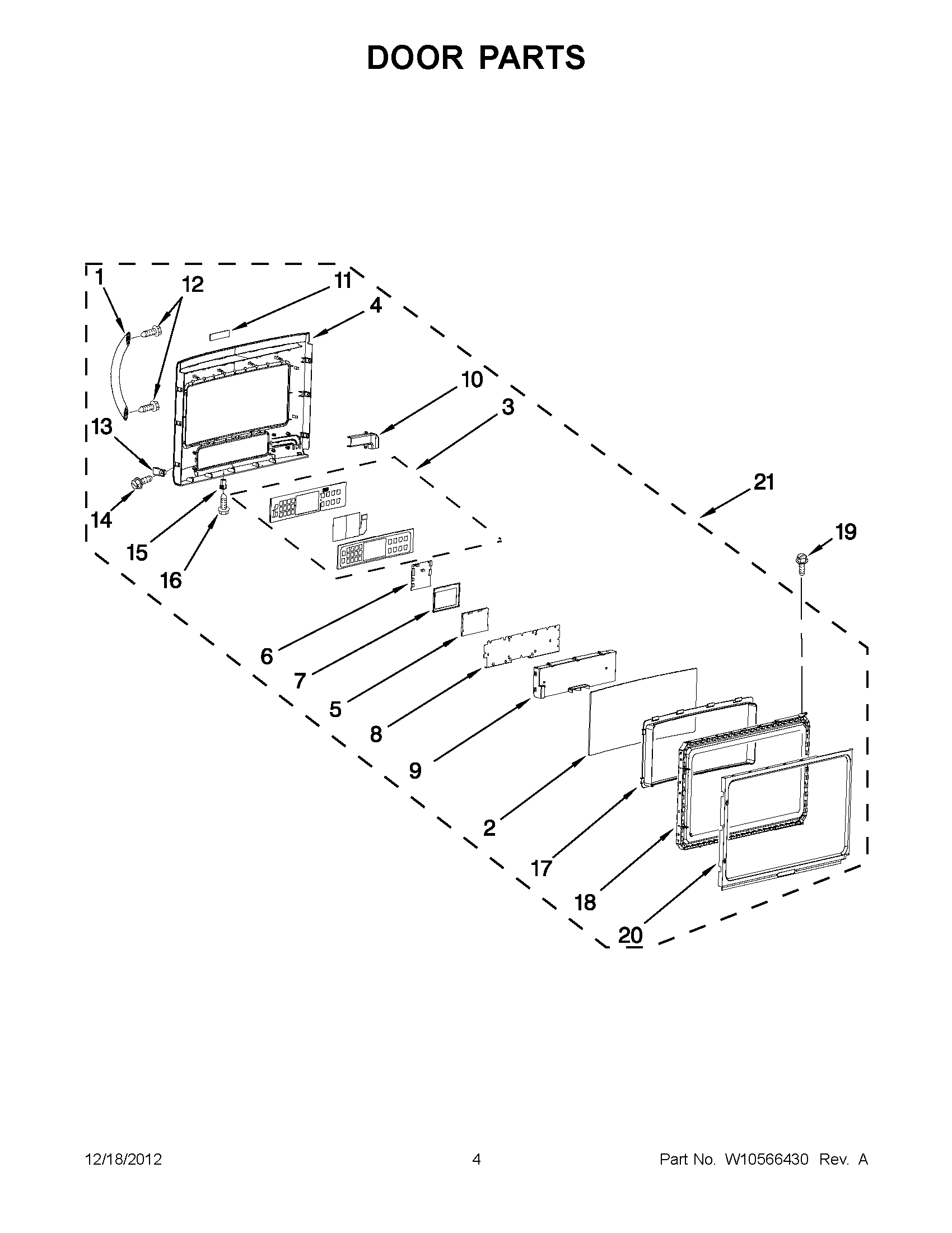

KHHC2090SBT2 02 – DOOR PARTS
Written by
in
KHHC2090SBT2 02 – DOOR PARTS
Products
Position
Product
1
Handle (Biscuit)
1
Handle (White)
1
W10110267 Whirlpool Microwave Door Handle
2
WP8206528 Whirlpool Microwave Door Glass
3
WPW10116267 Whirlpool Microwave Electronic Control Board
4
Outer Door Frame (White)
4
Outer Door Frame (Black)
4
Outer Door Frame (Biscuit)
5
LCD Frame
6
BOARD, USER (INTERFACE)
7
LCD Module
8
Cntrl Panel Plate
9
Cntrl Panel Cover
10
Cable Cover, Door
11
WPW10243392 Whirlpool Dishwasher Nameplate
11
WPW10243393 Whirlpool Dishwasher Nameplate
11
Logo (Biscuit)
12
W10815455 Whirlpool Screw
13
Spacer, Side (6) (White)
13
Spacer, Side (6) (Black)
13
Spacer, Side (6) (Biscuit)
15
Spacer, Bottom (2)
16
8206179 Whirlpool Microwave Screw
17
COVER, CHOKE
18
Door Plate Assy
19
W10565483 Whirlpool Microwave Screw
20
Dr Innr Frm Assy
21
DOOR, COMPLETE (BLACK)
21
DOOR, COMPLETE (WHITE)
21
DOOR, COMPLETE (BISCUIT)
←
