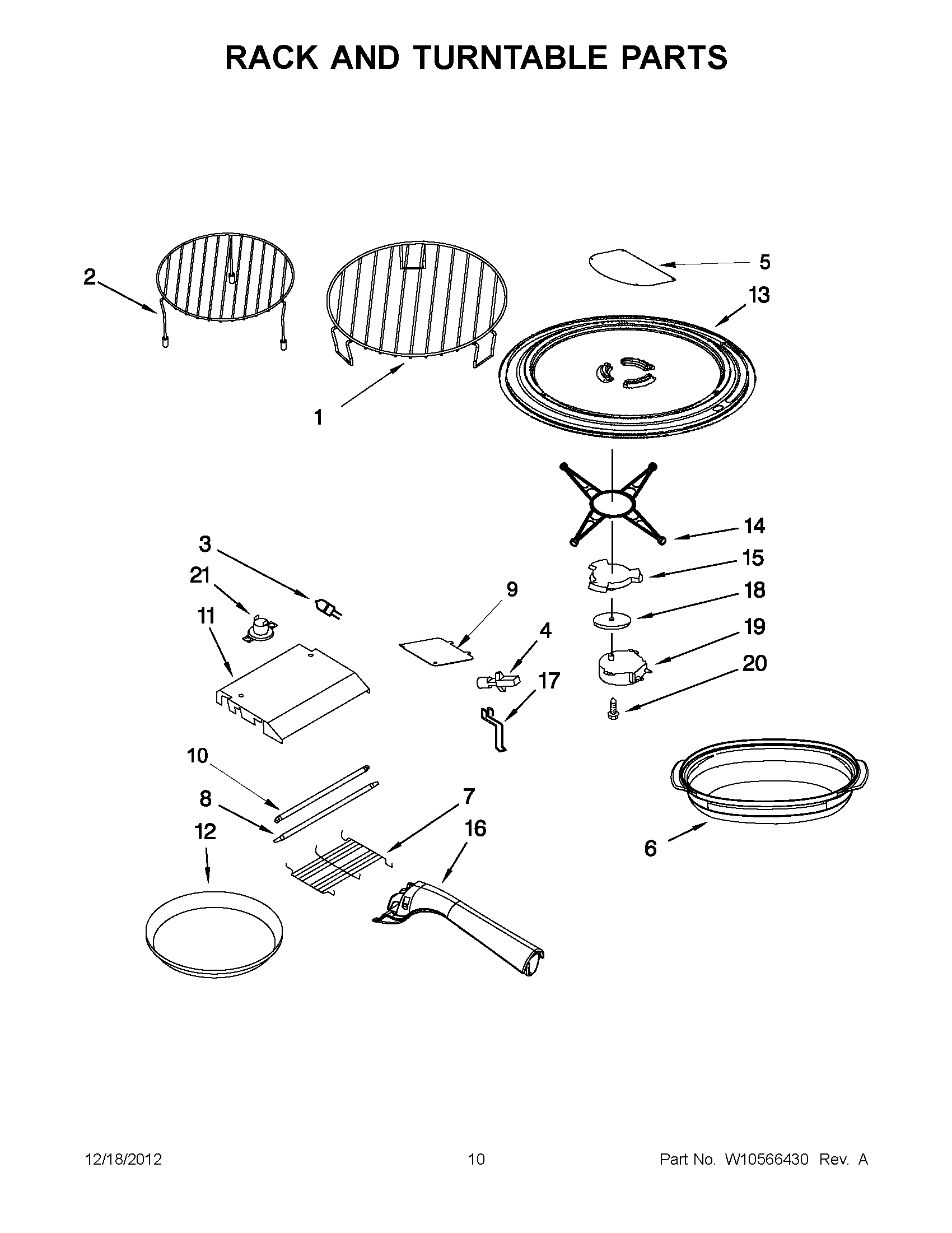

KHHC2090SBT2 05 – RACK AND TURNTABLE PARTS

KHHC2090SBT2 05 – RACK AND TURNTABLE PARTS

Written by

in

KHHC2090SBT2 05 – RACK AND TURNTABLE PARTS

Products

PositionProduct
1Rack, Convection
2Rack, Grill
38204670 Whirlpool Microwave Halogen Lamp 10W 12V
4Holder, Lamp
5COVER, INLET
6W10660052 Whirlpool Microwave Steamer Cookware
7Cover, Protector
8WPW10510203 Whirlpool Microwave Heater
9Lid, Lamp
10WP8184837 Whirlpool Microwave Element
11Cover, Insulation (Grill)
12W10748097 Whirlpool Microwave Crisp Pan
138205992 Whirlpool Microwave Cook Tray
14Ring, Turntable
158205994 Whirlpool Microwave Support
16W10851464 Whirlpool Microwave Handle Panel
17Clip, Cavity Lamp
188184109 Whirlpool Microwave Spacer
19W11661547 Whirlpool Turntable Motor
204393832 Whirlpool Microwave Screw
21W11553234 Whirlpool Microwave Magnetron Thermostat 145C/105C
