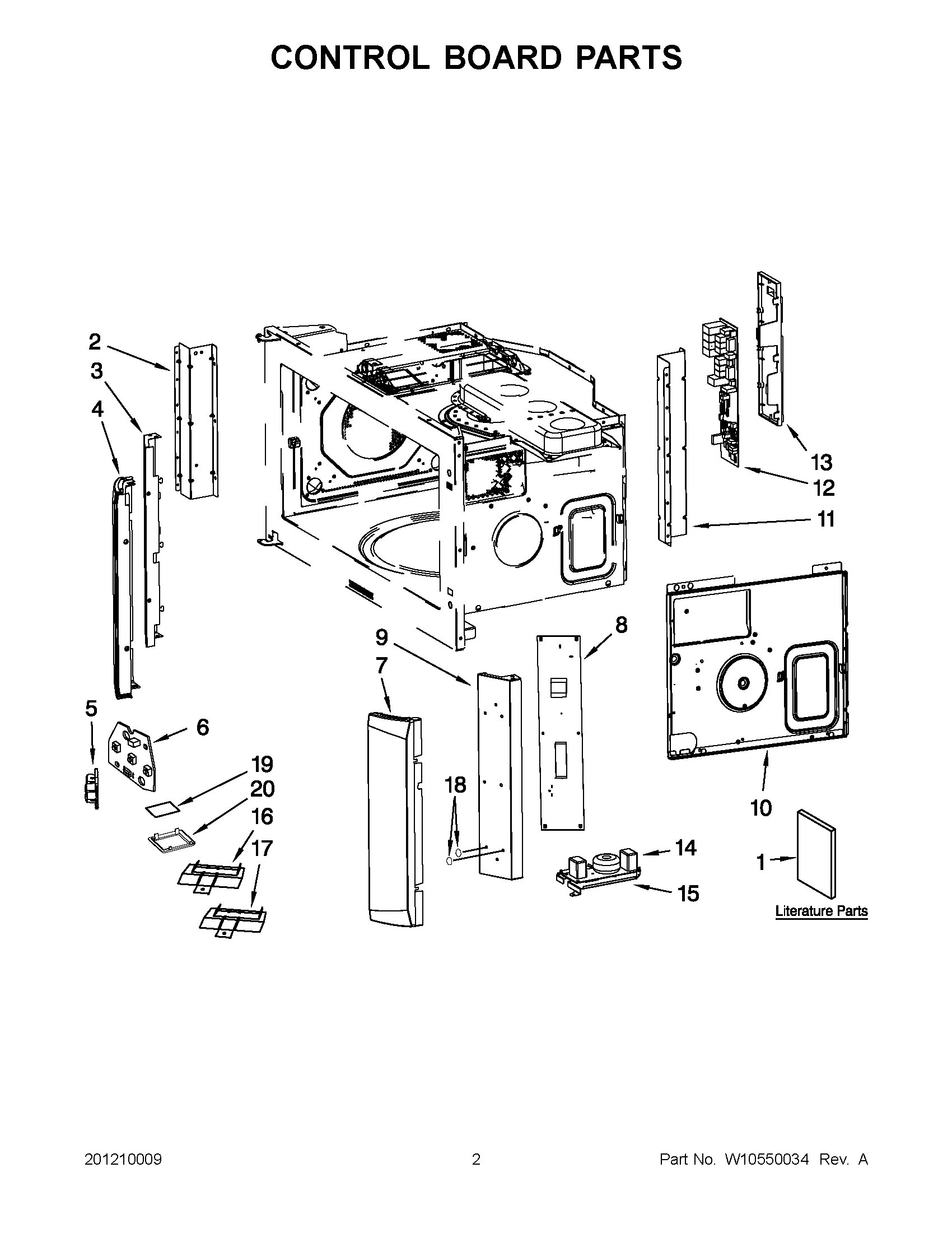

KHHC2090SSS3 01 – CONTROL BOARD PARTS

Products

Position	Product
1	INSTALLATION INSTRUCTIONS
1	USE & CARE GUIDE
1	QUICK REFERENCE
1	TECH SHEET
2	Support, Cavity (Left)
3	W10527358 Whirlpool Microwave Plate
4	SIDE PANEL, LEFT (STAINLESS)
5	Button (Stainless Steel)
6	WPW10403040-includeCORE Whirlpool WPW10403040 Microwave Control Board with Light Switch + Core
7	SIDE PANEL, RIGHT (STAINLESS STEEL)
8	Control Board, (Relay)
9	Plate, Protection (Right)
10	Plate, Chassis
11	Support, Cavity (Right)
12	Board, Relay
13	HOLDER, MICROCOMPUTER
14	AC Line Filter
15	Holder, Filter
16	RESISTOR 50 WATT
17	W10113783 Whirlpool Microwave Resistor
18	Spacer (6)
19	Glass, Lamp
20	Frame, Glass
