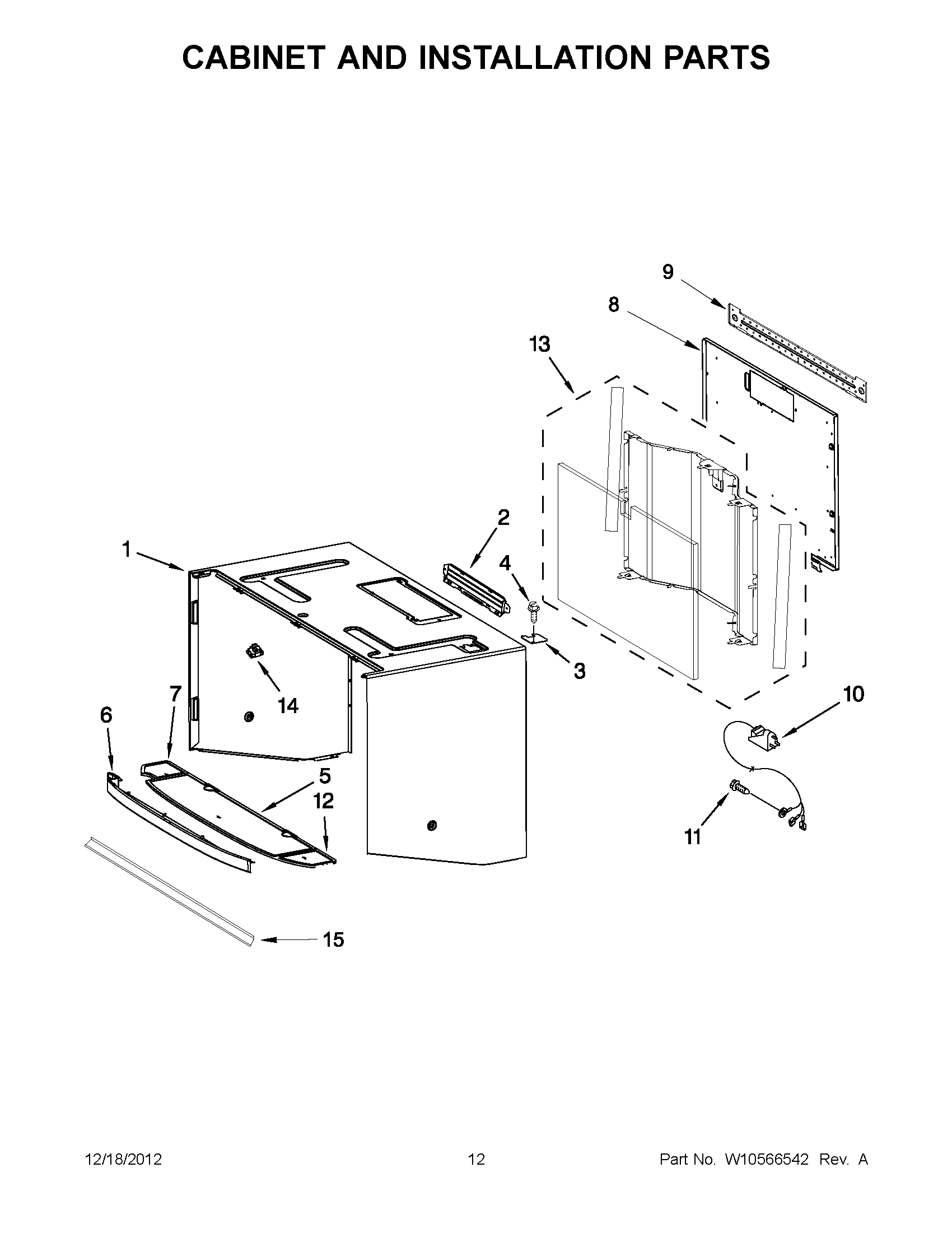

KHHC2090SSS4 06 – CABINET AND INSTALLATION PARTS

KHHC2090SSS4 06 – CABINET AND INSTALLATION PARTS

Written by

in

KHHC2090SSS4 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIHARNS-WIRE, HV
NIW10470173 Whirlpool Microwave Wire Harness
NIW10470176 Whirlpool Microwave Wire Harness
NIMISCELLANEOUS, TEMPLATE, BACK WALL
NIW10470191 Whirlpool Microwave Wire Harness Assembly
NIW10553076 Whirlpool Microwave Wire Harness
NITemplate, Upper
NIInstallation, Magnetron Hardware
NIHARNS-WIRE, P56-P66
NIHarns-Wire, RCB – Inverter
NIMISCELLANEOUS, HARNS, WIRE GRILL ELEMENT
NIMISCELLANEOUS, MAIN HARNESS
NI8206185 Whirlpool Microwave Wire Harness
NIHARNS-WIRE No.75 P64 RCB
NIHARNS-WIRE No.76 P2 RCB
NIW10470175 Whirlpool Microwave Wire Harness
1CASE, OUTER (STAINLESS STEEL)
2W10843943 Whirlpool Microwave Vent Damper
3Lid, Power Cord
4W11380570 Whirlpool Microwave Screw
5Vent Screen (Middle)
6Support, Vent Screen (Stainless Steel)
7Vent Screen (Left)
8Plate, Back
9PLATE, MOUNTING
10CORD, POWER
114393836 Whirlpool Microwave Screw
12Vent Screen (Right)
13Insulation Assy
14W10596040 Whirlpool Microwave Nut
158205980 Whirlpool Microwave Air Deflector
