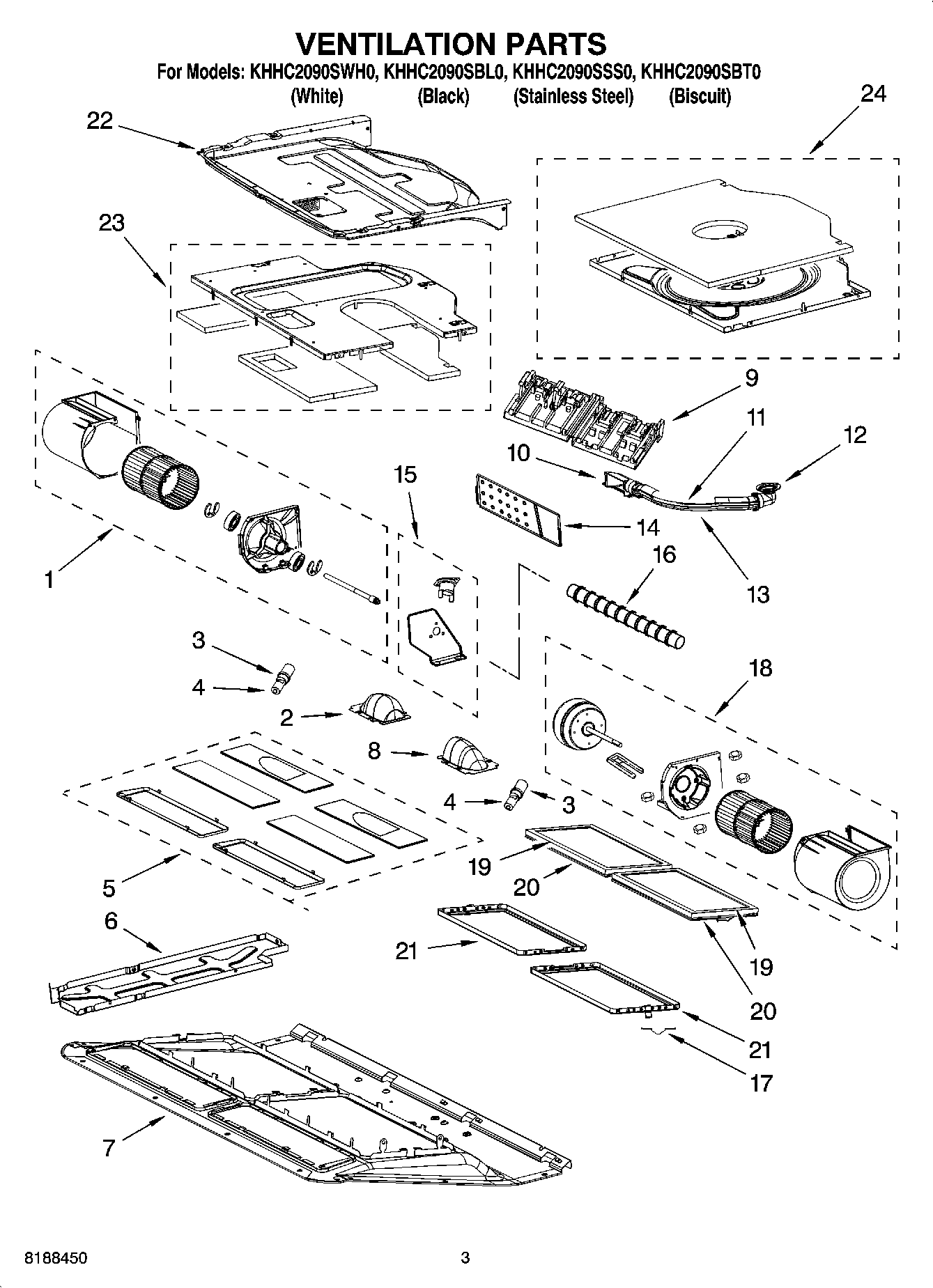

KHHC2090SWH0 03 – VENTILATION PARTS

KHHC2090SWH0 03 – VENTILATION PARTS

Written by

in

KHHC2090SWH0 03 – VENTILATION PARTS

Products

PositionProduct
1Housing, Blower (Left)
2Reflector, Lamp (Left)
38204670 Whirlpool Microwave Halogen Lamp 10W 12V
4W10143958 Whirlpool Microwave Light Socket Housing
5Frame, Glass (Left)
5Frame, Glass (Right)
6Plate, Separator (Left)
7Plate, Bottom
8Reflector, Lamp (Right)
9Cover, Terminal
10Diffuser
11Cover, Duct
12Connector, Duct
13Holder, Duct
14Shield
15Support & Base Thermostat Assy
16Connector Shaft
17SPRING
18Housing, Blower (Right)
19W10120840A Whirlpool Oven Range Vent Hood Charcoal Filter
20W10120839A Whirlpool Oven Microwave Range Vent Hood Grease Filter
21Spring, Hook
22Air Guide, Center Hood
23Plate, Insltn Top
24Plate, Insltn Bttm
