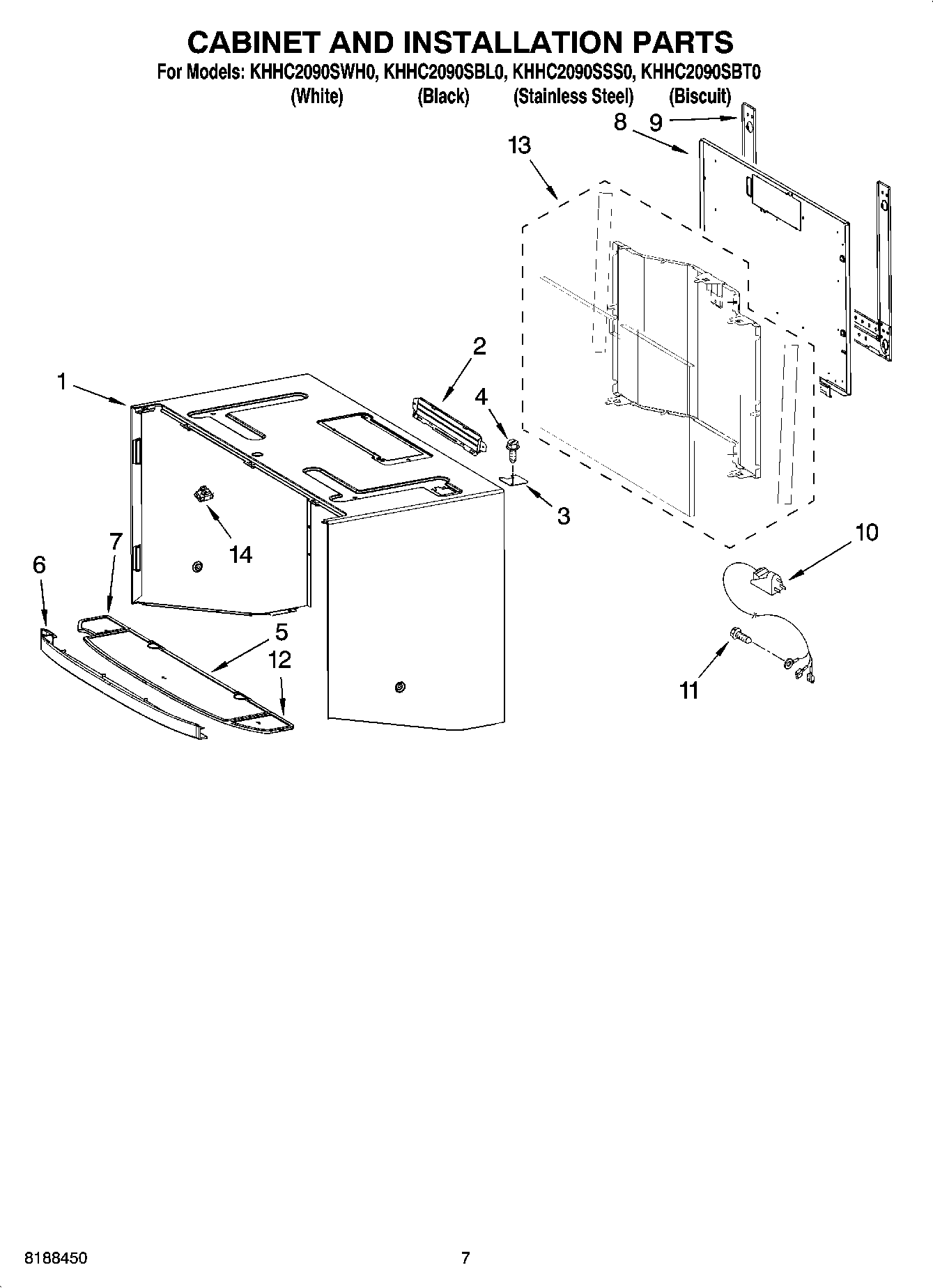

KHHC2090SWH0 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
1Case, Outer (Black)
1Case, Outer (White)
1Case, Outer (Biscuit)
1Case, Outer (Stainless Steel)
2W10843943 Whirlpool Microwave Vent Damper
3Lid, Power Cord
4W11380570 Whirlpool Microwave Screw
5Vent Screen (Middle)
6Support, Vent Screen (White)
6Support, Vent Screen (Biscuit)
6Support, Vent Screen (Stainless Steel)
6Support, Vent Screen (Black)
7Vent Screen (Left)
8Plate, Back
9Plate, Mounting
10Cord, Power
114393836 Whirlpool Microwave Screw
12Vent Screen (Right)
13Insulation Assy
14HARNS-WIRE No.76 P2 RCB
14Harns-Wire, HV
14HARNS-WIRE No.75 P64 RCB
14Harns-Wire, RCB – Inverter
14Harns-Wire, P56-P66
14Installation, Magnetron Hardware
14W10596040 Whirlpool Microwave Nut
148206185 Whirlpool Microwave Wire Harness
14W10470173 Whirlpool Microwave Wire Harness
14W10470175 Whirlpool Microwave Wire Harness
14W10470176 Whirlpool Microwave Wire Harness
14W10470191 Whirlpool Microwave Wire Harness Assembly
14W10554449 Whirlpool Microwave Wire Harness
14Template, Upper
14Miscellaneous
