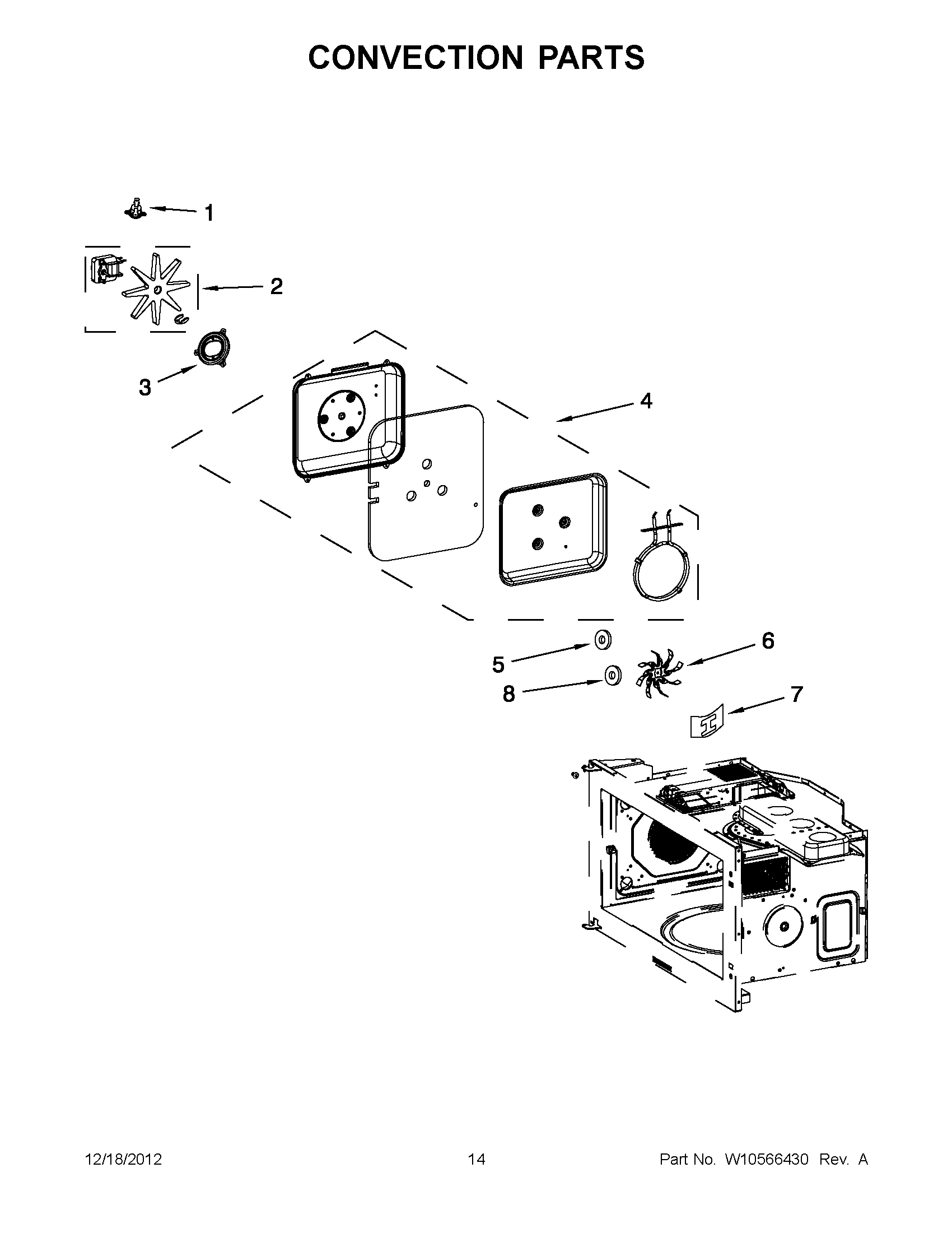

KHHC2090SWH2 07 – CONVECTION PARTS

Written by

Products

Position	Product
1	W10599629 Whirlpool Microwave Thermostat Fix
2	Impeller Assy
3	Bracket, Motor
4	Heater Assembly
5	Washer
6	Fan Wheel
7	Plate, Spring Lock
8	Washer, Adjustable
