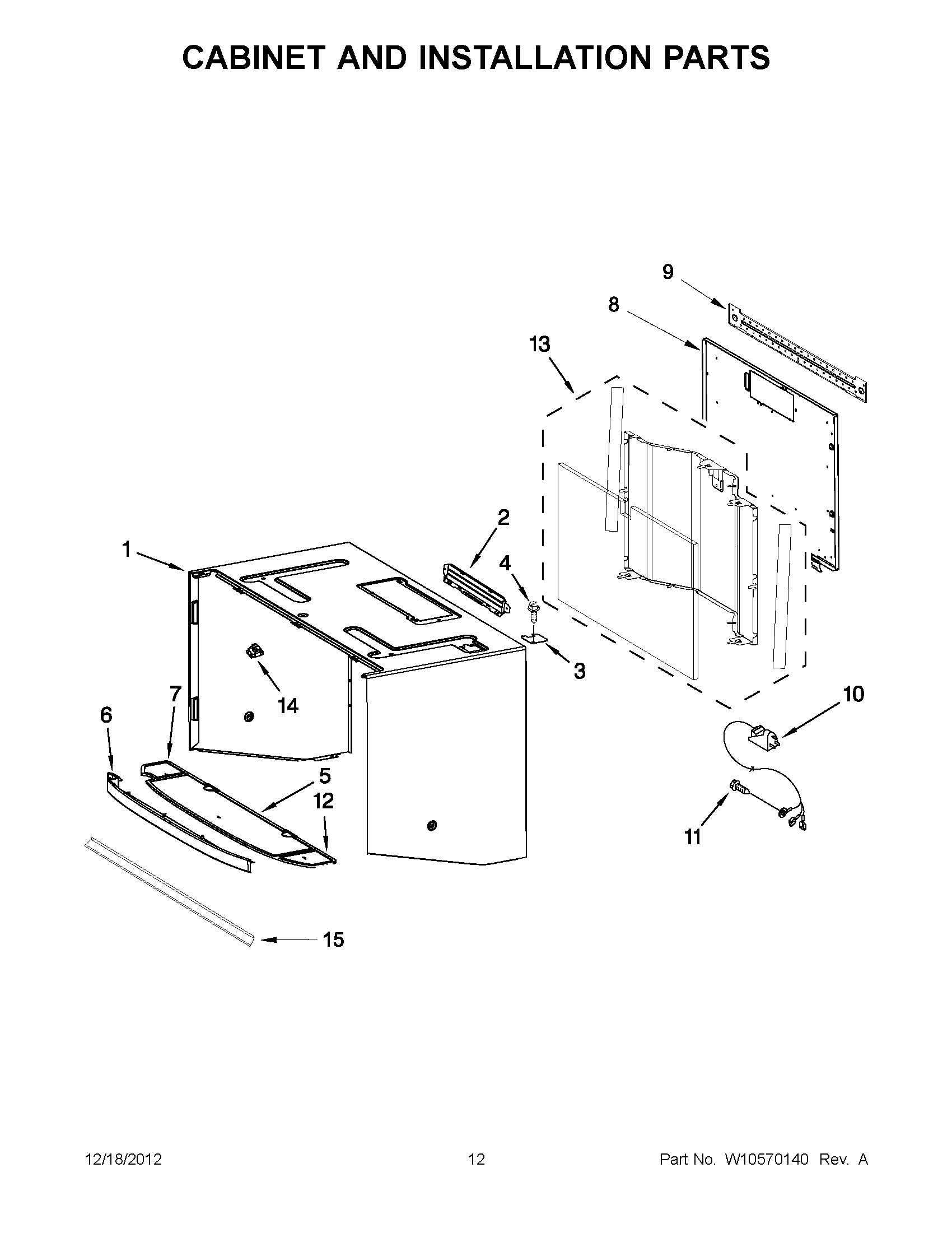

KHHC2090SWH3 06 – CABINET AND INSTALLATION PARTSadmin2025-04-26T10:39:39+00:00KHHC2090SWH3 06 – CABINET AND INSTALLATION PARTS
Products
| Position | Product |
|---|
| NI | HARNS-WIRE, HV |
| NI | HARNS-WIRE, P56-P66 |
| NI | Installation, Magnetron Hardware |
| NI | Template, Upper |
| NI | W10553076 Whirlpool Microwave Wire Harness |
| NI | W10470191 Whirlpool Microwave Wire Harness Assembly |
| NI | MISCELLANEOUS, TEMPLATE, BACK WALL |
| NI | W10470176 Whirlpool Microwave Wire Harness |
| NI | W10470175 Whirlpool Microwave Wire Harness |
| NI | Harns-Wire, RCB - Inverter |
| NI | MISCELLANEOUS, HARNS, WIRE GRILL ELEMENT |
| NI | MISCELLANEOUS, MAIN HARNESS |
| NI | HARNS-WIRE No.76 P2 RCB |
| NI | HARNS-WIRE No.75 P64 RCB |
| NI | 8206185 Whirlpool Microwave Wire Harness |
| NI | W10470173 Whirlpool Microwave Wire Harness |
| 1 | Case, Outer (White) |
| 1 | Case, Outer (Black) |
| 1 | CASE, OUTER (BISCUIT) |
| 2 | W10843943 Whirlpool Microwave Vent Damper |
| 3 | Lid, Power Cord |
| 4 | W11380570 Whirlpool Microwave Screw |
| 5 | Vent Screen (Middle) |
| 6 | Support, Vent Screen (Biscuit) |
| 6 | Support, Vent Screen (White) |
| 6 | Support, Vent Screen (Black) |
| 7 | Vent Screen (Left) |
| 8 | Plate, Back |
| 9 | PLATE, MOUNTING |
| 10 | CORD, POWER |
| 11 | 4393836 Whirlpool Microwave Screw |
| 12 | Vent Screen (Right) |
| 13 | Insulation Assy |
| 14 | W10596040 Whirlpool Microwave Nut |
| 15 | 8205980 Whirlpool Microwave Air Deflector |
