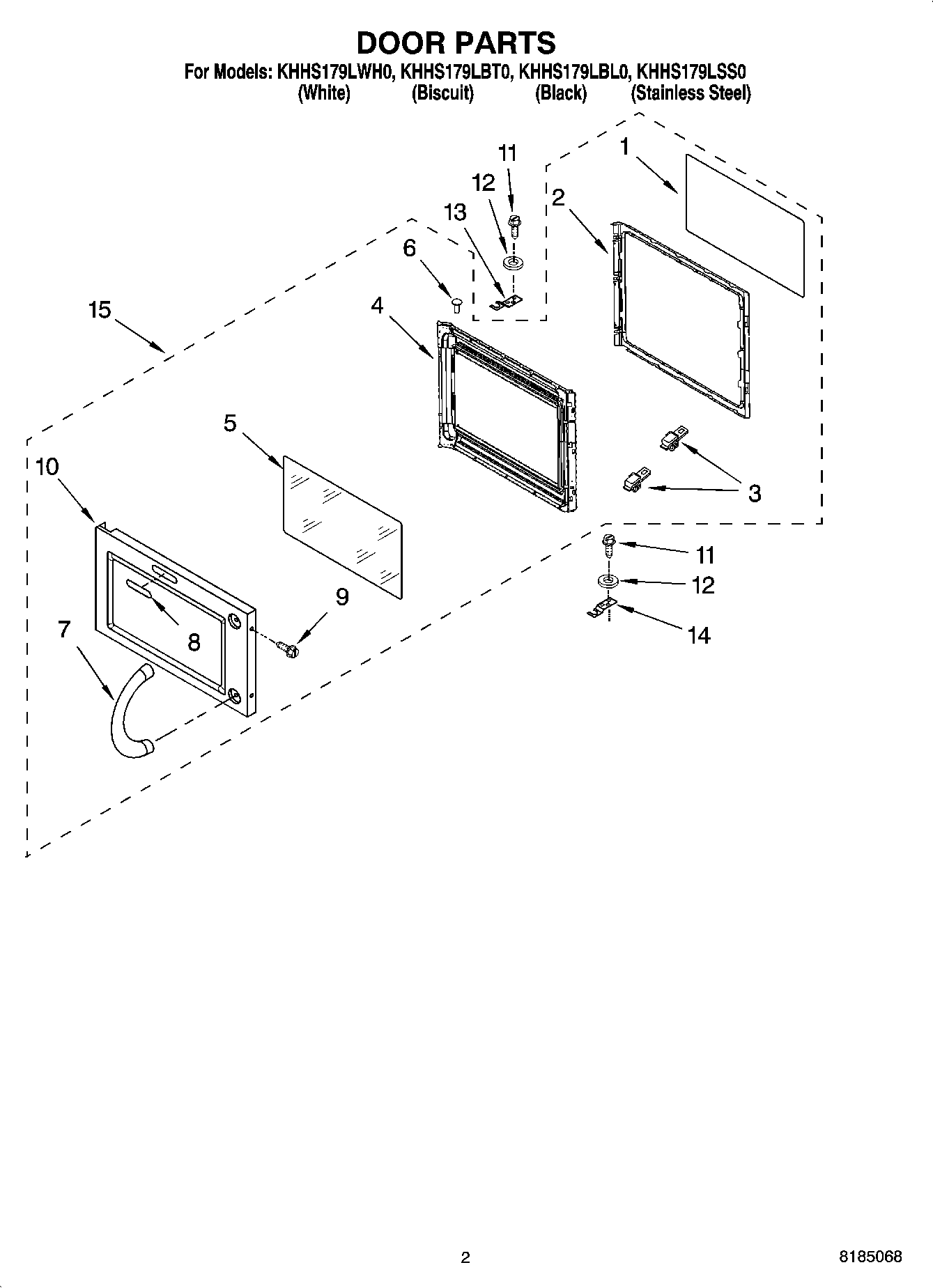

KHHS179LBL0 02 – DOOR PARTS

Products

Position	Product
1	Film, Back Included with 4
2	Frame, Inner
3	Latch, Door
4	Body Asy, Door Includes 1 (Biscuit)
4	Body Asy, Door Includes 1 (White)
4	Body Asy, Door Includes 1 (Black)
5	Glass, Outer
6	Pivot, Door
7	Handle (Black)
7	Handle (Stainless)
7	Handle (White)
7	Handle (Biscuit)
8	Nameplate
9	8169479 Whirlpool Microwave Screw
10	Frame Asy, Outer (Stainless)
10	Frame Asy, Outer (White)
10	Frame Asy, Outer (Biscuit)
10	Frame Asy, Outer (Black)
11	8169480 Whirlpool Microwave Screw
12	WP8533914 Whirlpool Lock
13	Upper Hinge
14	Lower Hinge
15	Complete Door (Biscuit)
15	Complete Door (Black)
15	Complete Door (White)
15	Complete Door (Stainless Steel)
