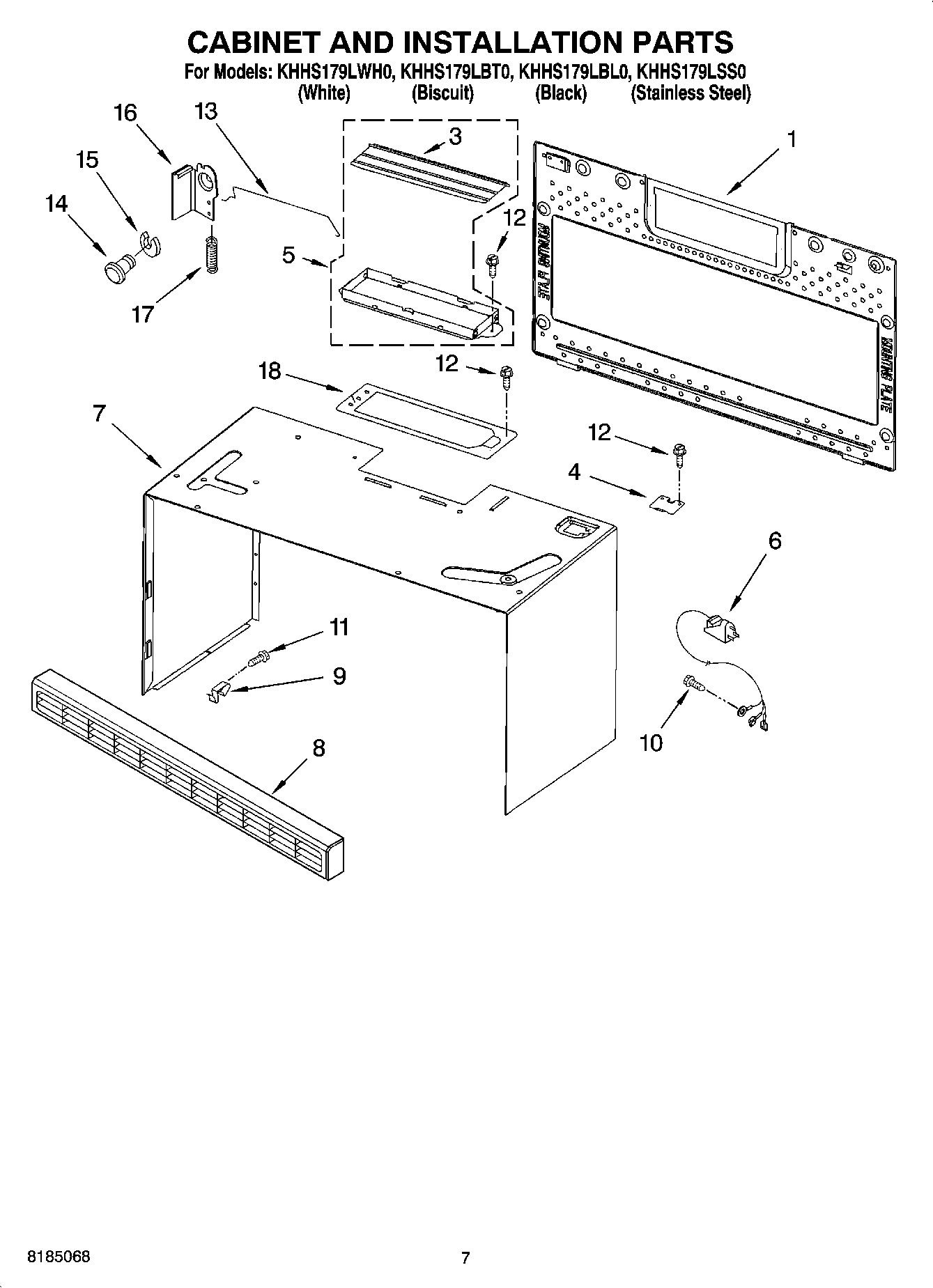

KHHS179LBL0 06 – CABINET AND INSTALLATION PARTS

KHHS179LBL0 06 – CABINET AND INSTALLATION PARTS

Written by

in

KHHS179LBL0 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
1Plate, Mounting
3W10843943 Whirlpool Microwave Vent Damper
4Lid, Power Cord
6Cord, Power
7Case, Outer (White)
7Case, Outer (Biscuit)
7Case, Outer (Black)
8Grille, Vent (White)
8Grille, Vent (Stainless)
8Grille, Vent (Biscuit)
8Grille, Vent (Black)
9W10615742 Whirlpool Microwave Clip
104393836 Whirlpool Microwave Screw
11Screw
12W11380570 Whirlpool Microwave Screw
13Rod
14Latch, Pivot
15E-Ring
16Catch
17Spring
18(Biscuit)
18Template, Wall
18WP8169704 Whirlpool Screw
18Plate, Damper
18Miscellaneous
18Hardware, Installation
