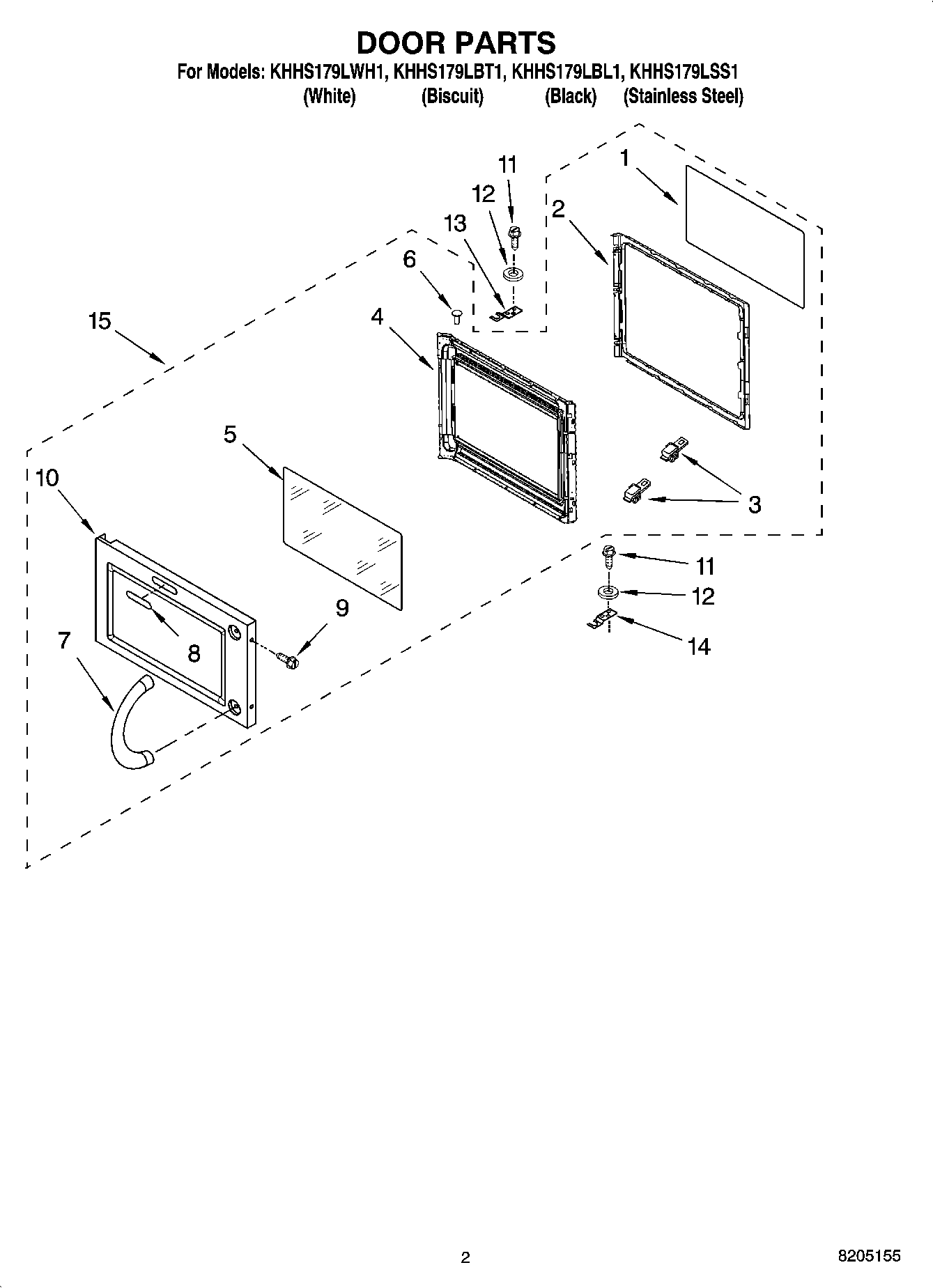

KHHS179LBL1 02 – DOOR PARTS

Products

PositionProduct
1Film, Back Included with 4
2Frame, Inner
3Latch, Door
4Body Asy, Door Includes 1 (Biscuit)
4Body Asy, Door Includes 1 (White)
4Body Asy, Door Includes 1 (Black)
5Glass, Outer
6Pivot, Door
7Handle (White)
7Handle (Biscuit)
7Handle (Black)
7Handle (Stainless)
8Nameplate
98169479 Whirlpool Microwave Screw
10Frame Asy, Outer (Biscuit)
10Frame Asy, Outer (Black)
10Frame Asy, Outer (Stainless)
10Frame Asy, Outer (White)
118169480 Whirlpool Microwave Screw
12WP8533914 Whirlpool Lock
13Upper Hinge
14Lower Hinge
15Complete Door (White)
15Complete Door (Stainless Steel)
15Complete Door (Biscuit)
15Complete Door (Black)
